APC by Schneider Electric

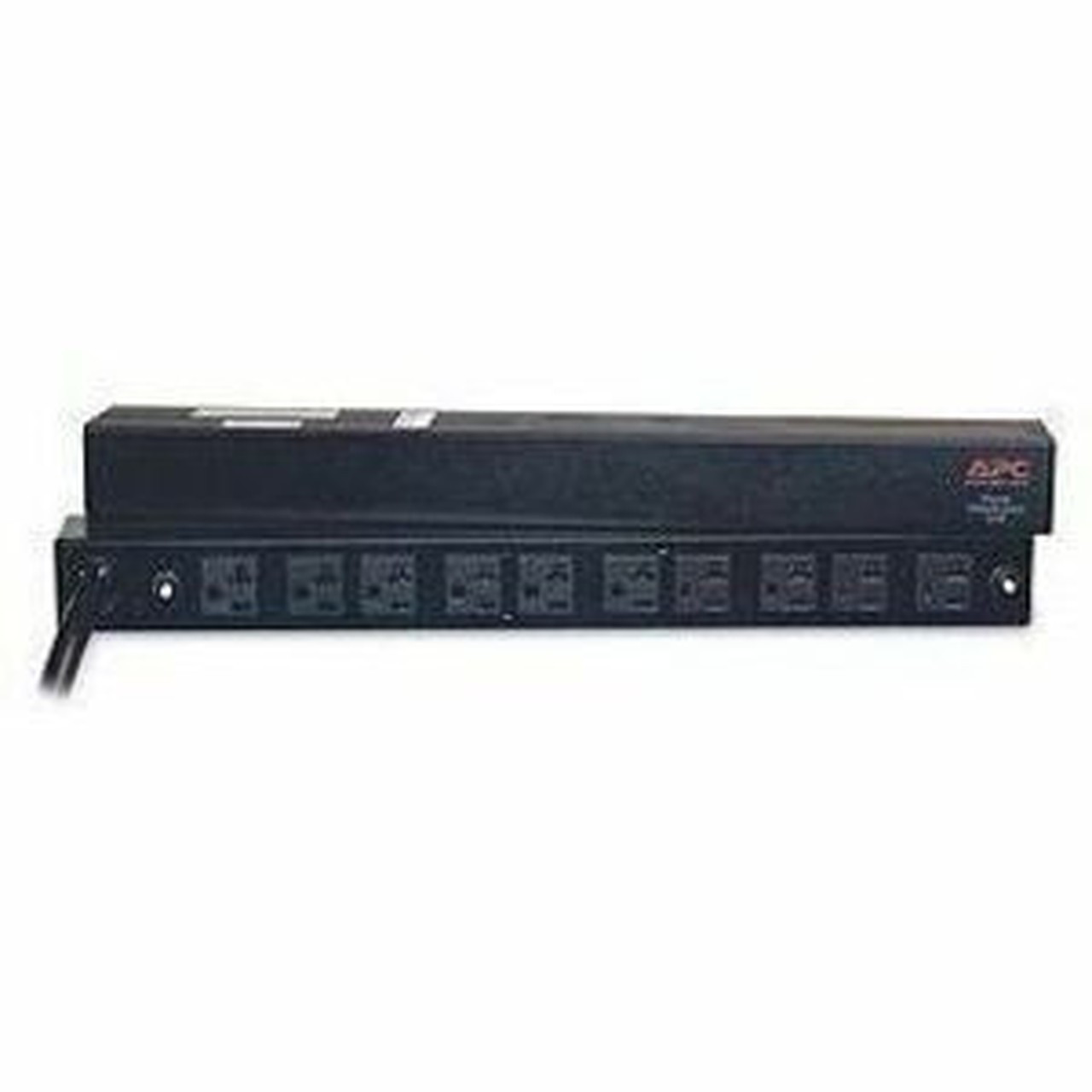

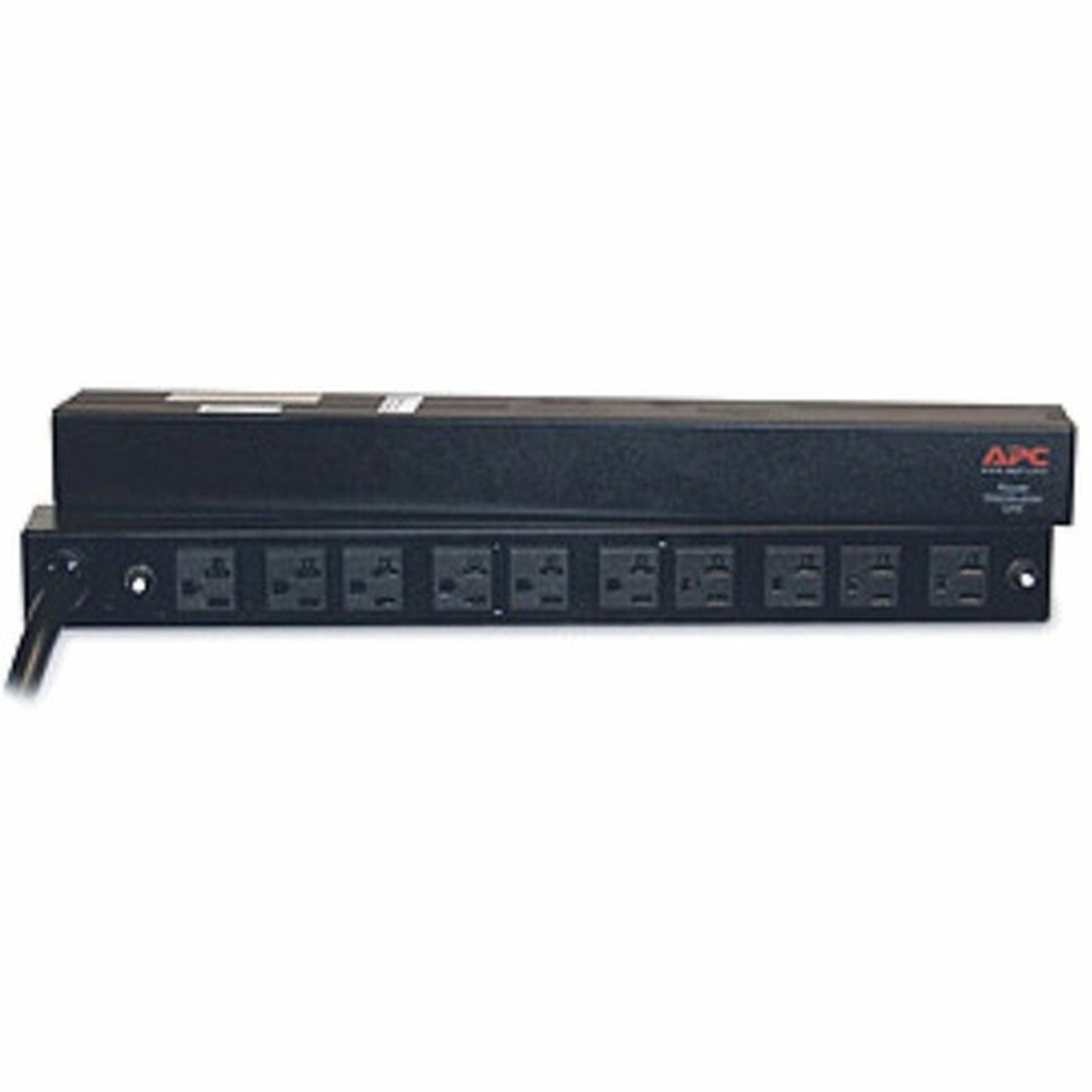

APC Basic Rack 2.88kVA PDU - 10 x NEMA 5-20R - 2.88kVA - 1U 19" Rack-mountable (AP9560)
- Basic Rack 2.88kVA PDU
- Rack mounting brackets
- User manual
Marketing Information: Reliable rack power distribution
PDU Type: Basic
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 10 x NEMA 5-20R
Number of Protected Output Receptacles: 10
Protection Type: Overload Protection
Input Voltage: 100 V,120 V
Input Voltage Range: 120 V AC - 132 V AC
Output Voltage: 120 V AC
Power Rating (VA): 2.88 kVA
Product Color: Black
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 12 ft
Height: 1.73" (44 mm)
Width: 17.60" (447 mm)
Depth: 2.24" (57 mm)
Weight (Approximate): 2.50 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9560 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 2.88kVA PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 10 x NEMA 5-20R |
| Number of Protected Output Receptacles | 10 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 100 V,120 V |
| Input Voltage Range | 120 V AC - 132 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2.88 kVA |
| Physical Characteristics | |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 12 ft |
| Height | 1.73" (44 mm) |
| Width | 17.60" (447 mm) |
| Depth | 2.24" (57 mm) |
| Weight (Approximate) | 2.50 kg |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
[/custom-specifications]
[custom-options]
| Product | APC by Schneider Electric EcoCare - 1 Year - Service - Technical |
| SKU | ECO1PH1YAC01 |
| Sale Price | $130.25 |
| Product | APC by Schneider Electric EcoCare - 1 Year - Warranty - 24 x 7 x Next Business Day - On-site - Technical - Parts |
| SKU | ECO1PH1YWITEAC01 |
| Sale Price | $105.85 |
[/custom-options]
Warranty Infomartion
2 Year
