- PDU provides active metering enabling energy optimization and circuit protection
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way

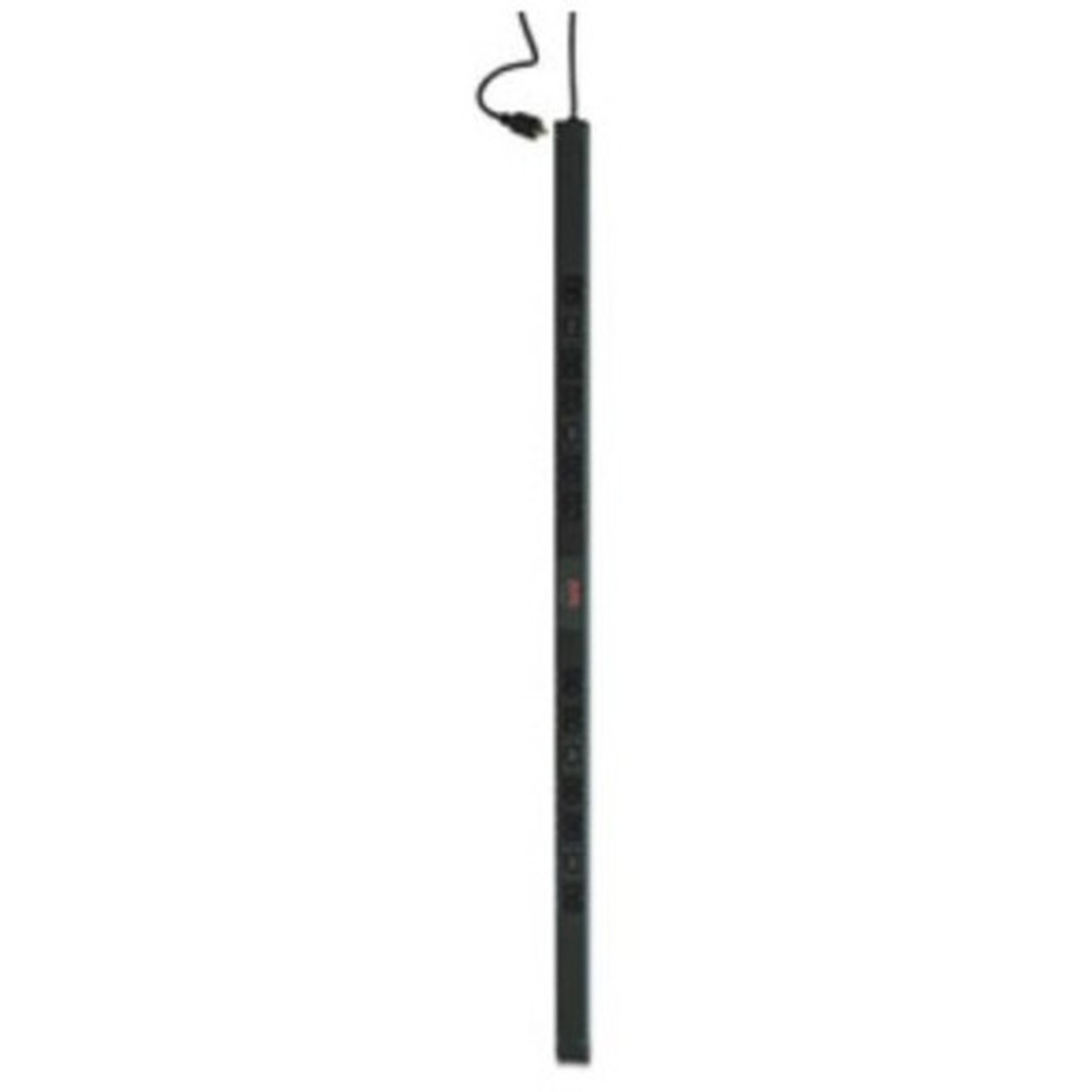

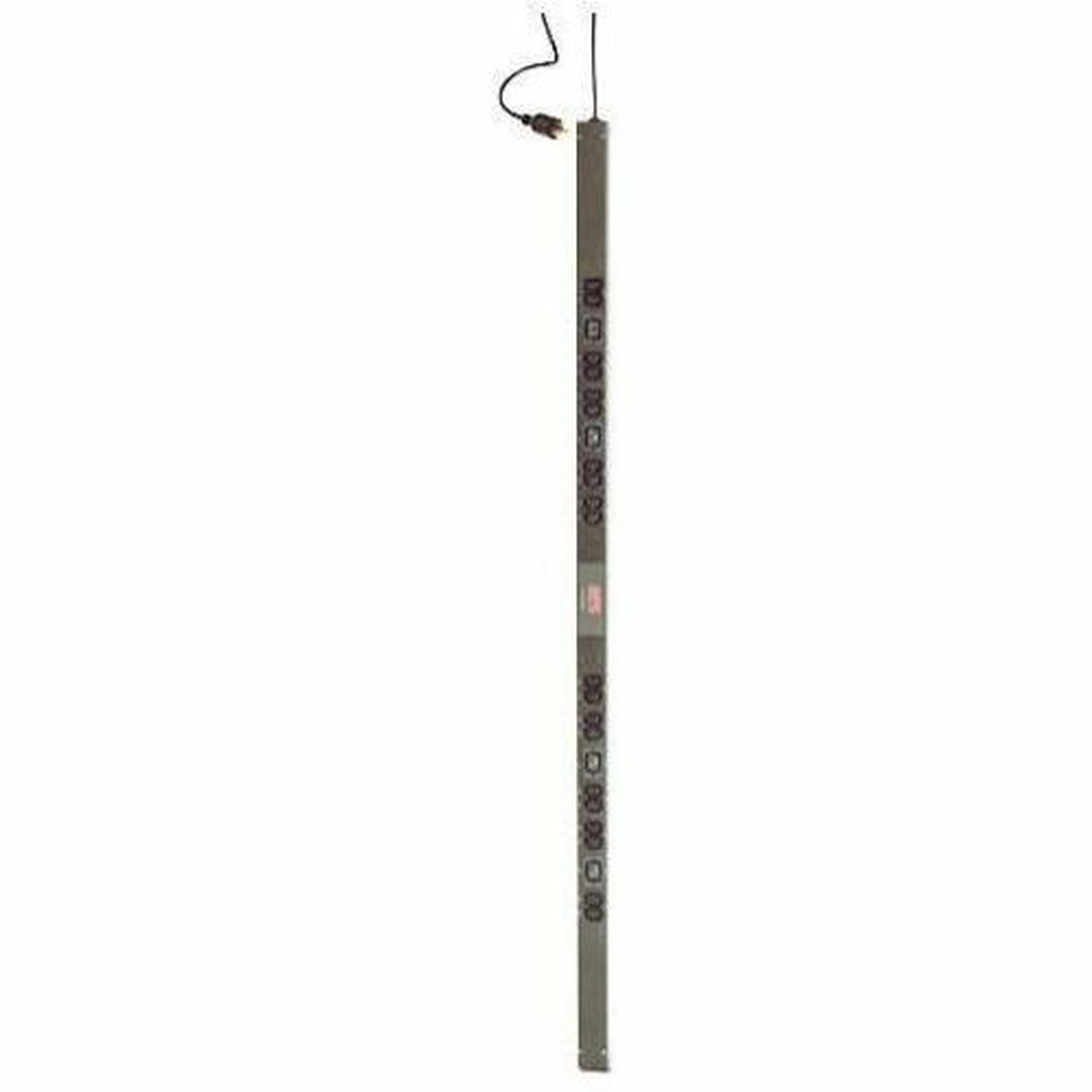

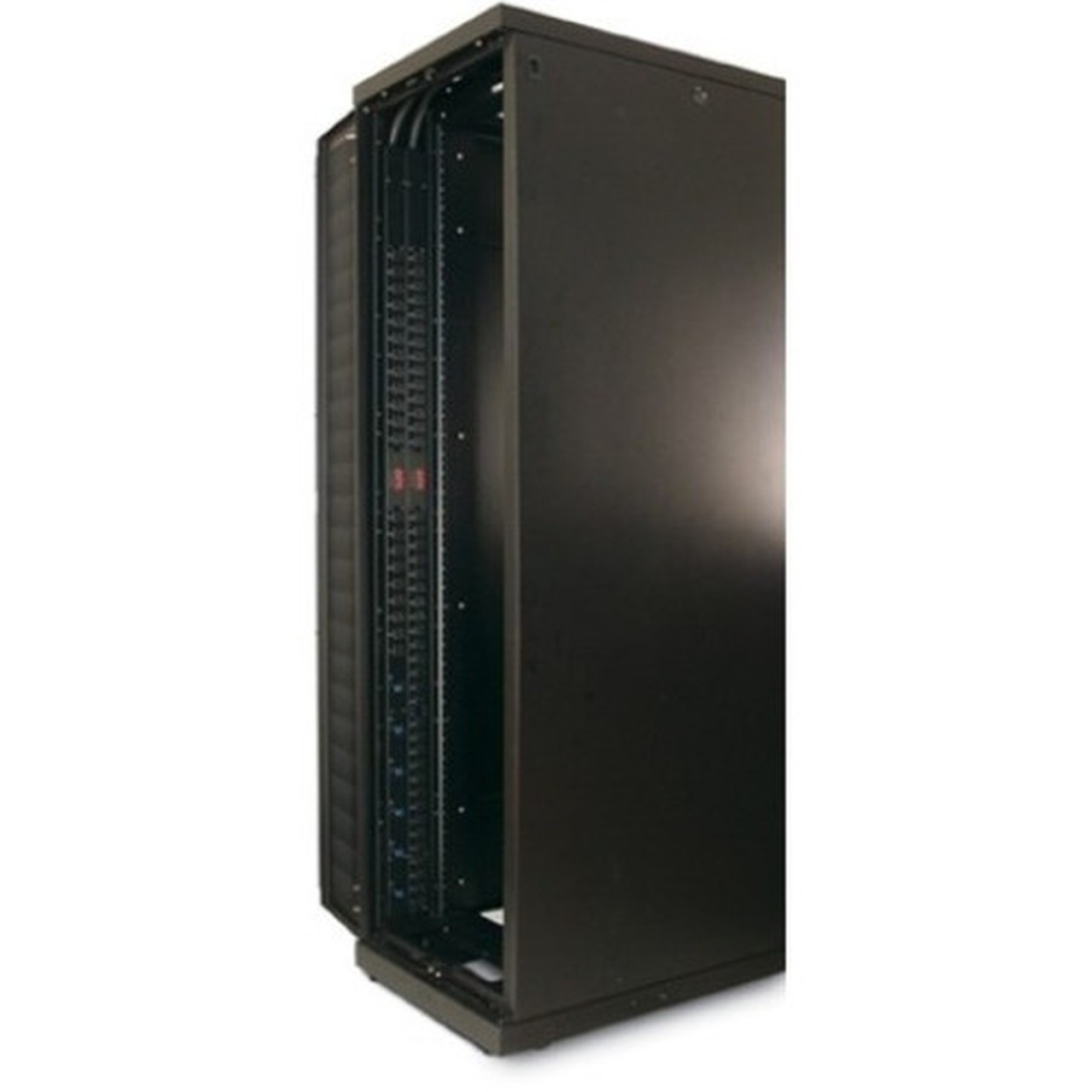

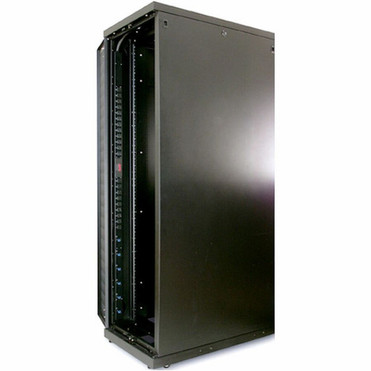

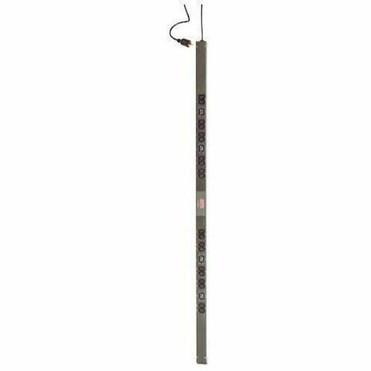

Marketing Information: Basic Rack 4160VA PDU for Power distribution for rack-mount equipment. It allow users to distribute power outlets to rack-mount equipment. This PDU mount veritcally, without tools in the rear channel of a NetShelter VX.
PDU Type: BasicPlug/Connector Type: NEMA L6-20PReceptacle Type: - IEC 60320 C13
- IEC 60320 C19
Receptacle Detail: - 20 x IEC 60320 C13
- 4 x IEC 60320 C19
Input Voltage: Output Voltage: 208 V ACPower Rating (VA): 4.16 kVAProduct Color: BlackMount Type: Rack-mountableRack Height: 0UCord Length: 10 ftHeight: 63.74" (1619 mm)Width: 2.20" (56 mm)Depth: 1.73" (44 mm)Weight (Approximate): 4.86 kgPackage Contents: - Basic Rack 4160VA PDU
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 2 YearAdditional Warranty Information: 2 years repair or replace
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: AP7540
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Basic Rack
Product Name: Basic Rack 4160VA PDU
Packaged Quantity: 1 Each
Product Type: PDU
Technical InformationPDU Type: Basic
Plug/Connector Type: NEMA L6-20P
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
Receptacle Detail:
- 20 x IEC 60320 C13
- 4 x IEC 60320 C19
Power DescriptionInput Voltage:
Output Voltage: 208 V AC
Power Rating (VA): 4.16 kVA
Physical CharacteristicsProduct Color: Black
Mount Type: Rack-mountable
Rack Height: 0U
Cord Length: 10 ft
Height: 63.74" (1619 mm)
Width: 2.20" (56 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 4.86 kg
MiscellaneousPackage Contents:
Basic Rack 4160VA PDU Installation guideRack mounting bracketsToolless mounting kitEnvironmentally Friendly: Yes
Environmental Certification: RoHS
WarrantyLimited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
[/custom-specifications]
