Plug/Connector Type: NEMA L5-20P 16A (2P + E)Receptacles: 10 x NEMA 5-20RInput Voltage: 120 V ACOutput Voltage: 120 V ACCurrent: 20 AColor Family: BlackProduct Color: BlackForm Factor: Rack-mountableRack Height: 1UHeight: 1.73" (44 mm)Width: 17.01" (432 mm)Depth: 9.29" (236 mm)Weight (Approximate): 4.40 kgPackage Contents: - NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
Country of Origin: PhilippinesEnvironmentally Friendly: YesEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)Limited Warranty: 2 YearAdditional Warranty Information: 2 years repair or replace
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: AP4452A
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter

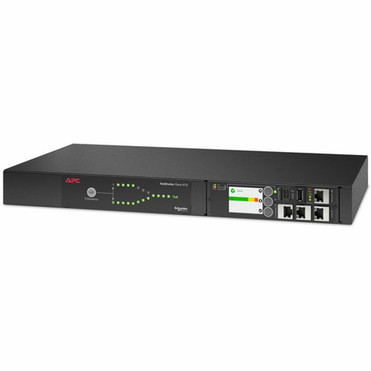

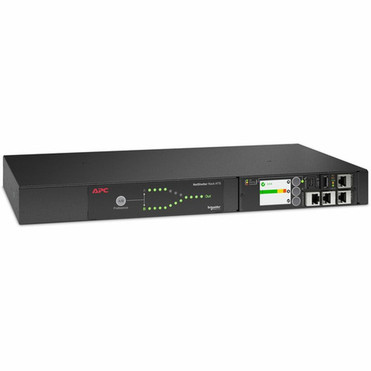

Product Name: NetShelter Automatic Transfer Switch
Product Type: Automatic Transfer Switch
Technical InformationPlug/Connector Type: NEMA L5-20P 16A (2P + E)
Receptacles: 10 x NEMA 5-20R
Power DescriptionInput Voltage: 120 V AC
Output Voltage: 120 V AC
Current: 20 A
Physical CharacteristicsColor Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.73" (44 mm)
Width: 17.01" (432 mm)
Depth: 9.29" (236 mm)
Weight (Approximate): 4.40 kg
MiscellaneousPackage Contents:
- NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
WarrantyLimited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
