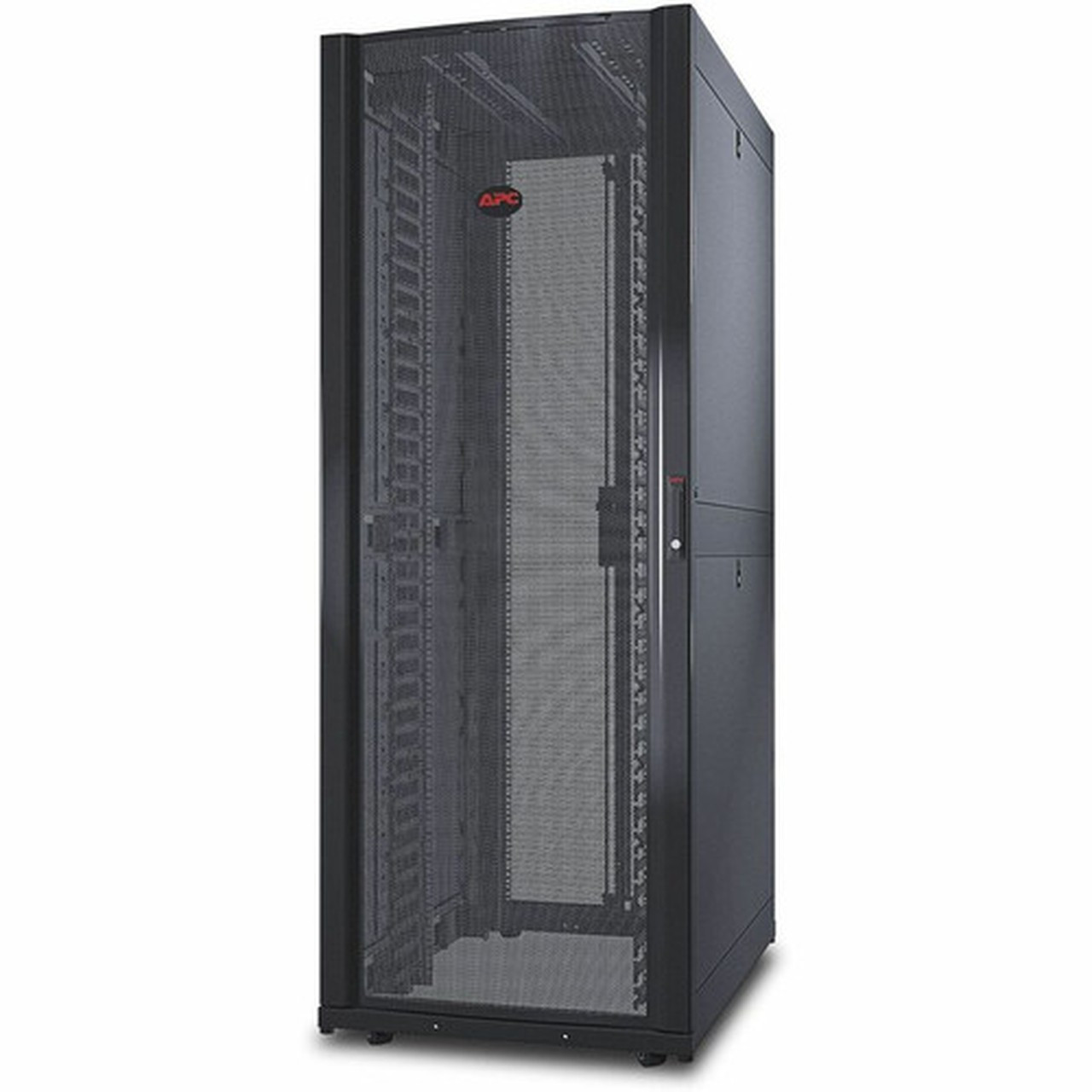

APC by Schneider Electric NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides - For Networking, Airflow System (AR3140)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
APC by Schneider Electric
APC by Schneider Electric NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides - For Networking, Airflow System (AR3140)
- NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
- Baying Hardware
- Documentation CD
- Key(s)
- Keyed-alike Doors and Side Panels
- Leveling Feet
- Mounting Hardware
- Pre-installed Casters
- Side Panels
- User Manual

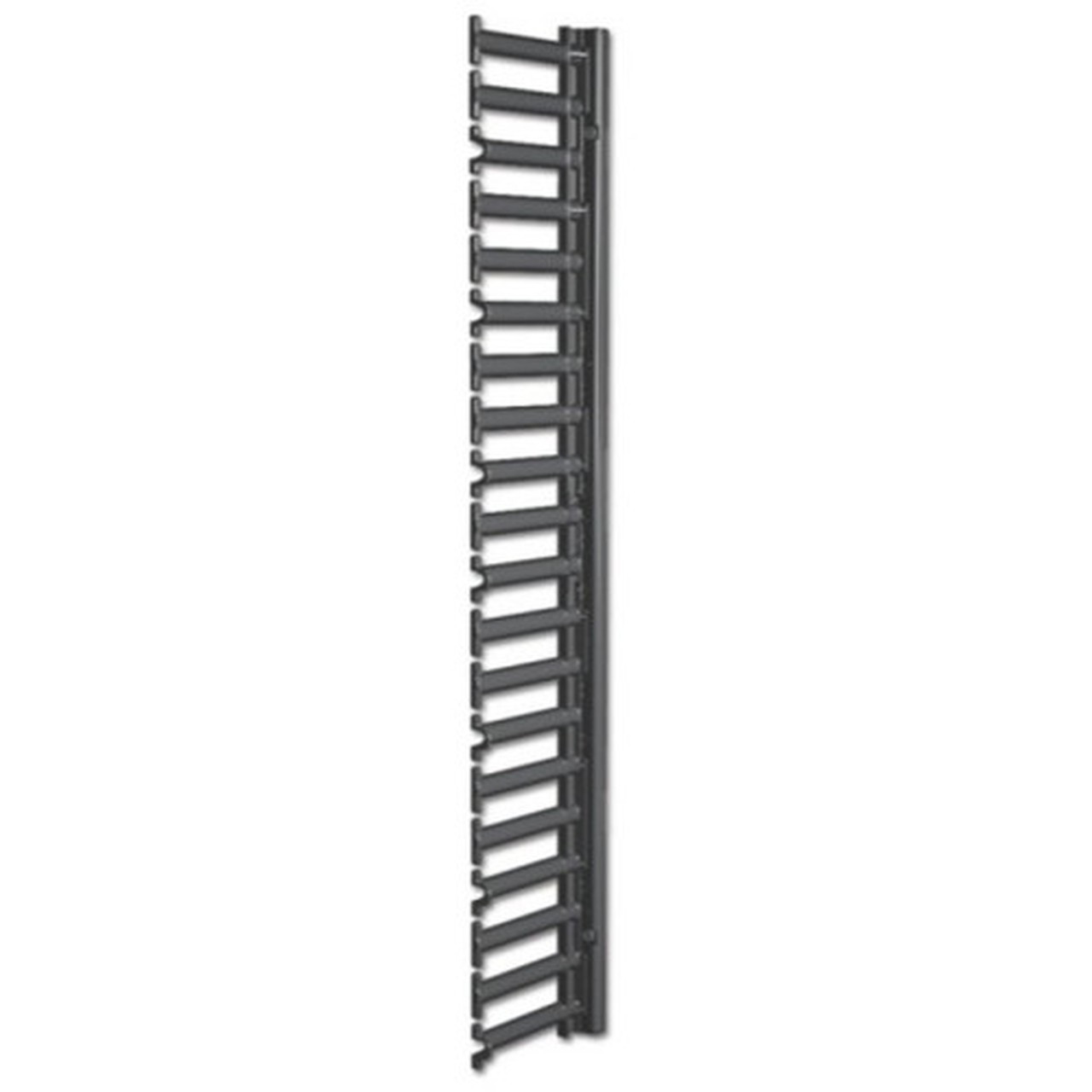

- Vertical Cable Managers
Marketing Information: Our high-performance IT Rack for data centers, server rooms & wiring closets
Application/Usage: Networking,Airflow System
Features: Cable Management,Removable Side Panel,Perforated Door,Lockable Door,Adjustable Leveling Feet,Adjustable Mounting Rails,Casters
Form Factor: Floor Standing
Color Family: Black
Product Color: Black
Dynamic/Rolling Weight Capacity: 1022.73 kg
Static/Stationary Weight Capacity: 1363.64 kg
Height: 78.39" (1991 mm)
Width: 29.53" (750 mm)
Depth: 42.13" (1070 mm)
Rack Height: 42U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 155.95 kg
Package Contents:
Assembly Required: No
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
Additional Warranty Information: 5 year repair or replace
- Cable protection and pass-through: Smooth plastic fingers provide proper bend radius.
- High density cable management: The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.
- Improved cable access: Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.

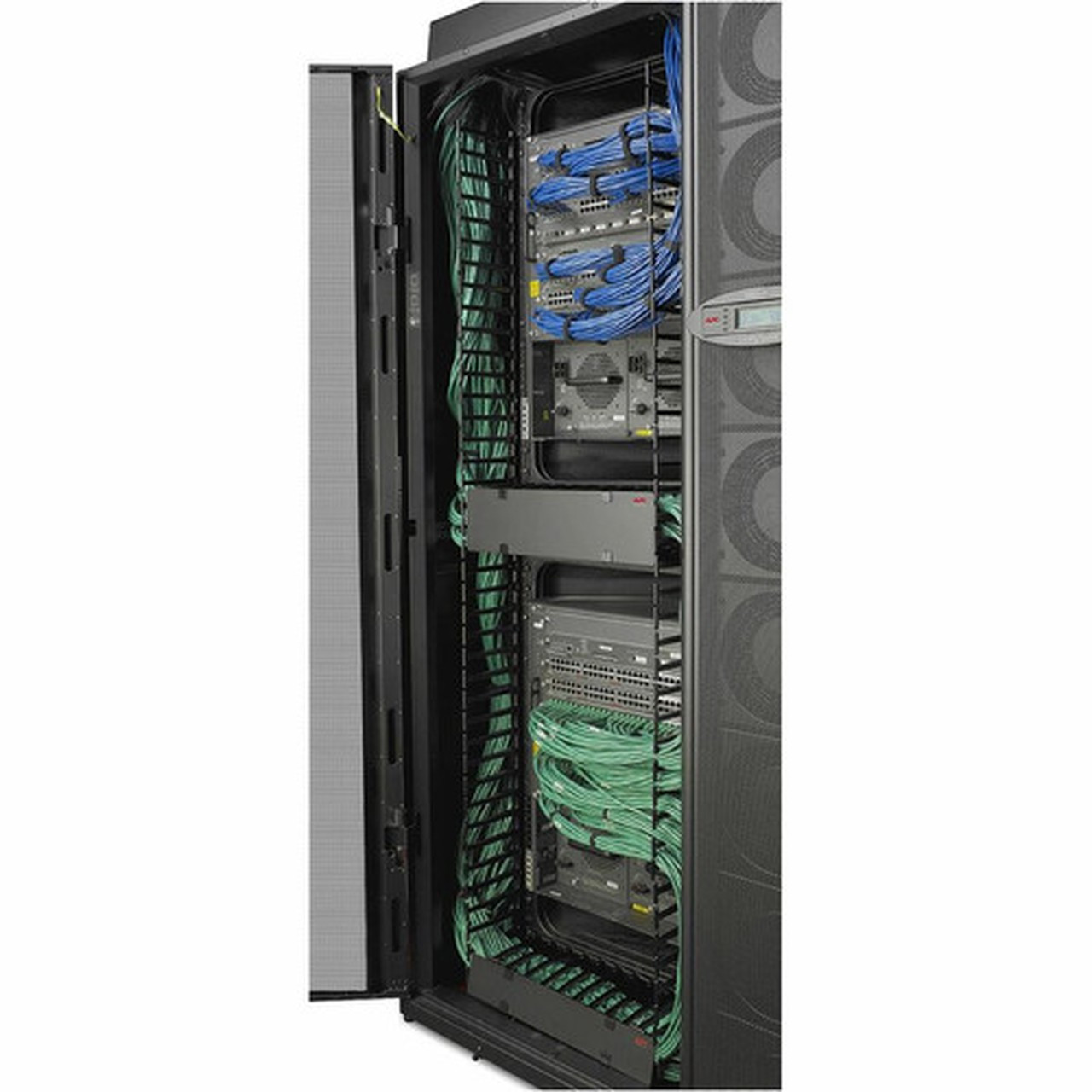

- Integrated high density cable management: Decrease installation time while supporting the cabling needs of large networking switches.
- Optimized enclosure design for side-to-side airflow: Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
- Integrated with InfraStruxure products: Schneider Electric cooling, power distribution, and cable management products work seamlessly with IT enclosures to provide a complete infrastructure support system.
- Schneider Electric Rack Systems Compatible: Compatible with a variety of Schneider Electric rack accessory products to provide the ability to create a complete rack system. Configure rack solutions using industry leading Schneider Electric Design Portal - Small IT Solution Designer configurator complete with verification of product compatibility and useful 3rd party equipment catalog to aid in visualizing your ideal rack solution.
- Optimized for high capacity cable management systems: NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.
- Vendor-neutral EIA-310 19in Rack Mounting Compatibility Guaranteed: Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-E compliant rack-mount equipment will physically fit in a NetShelter.

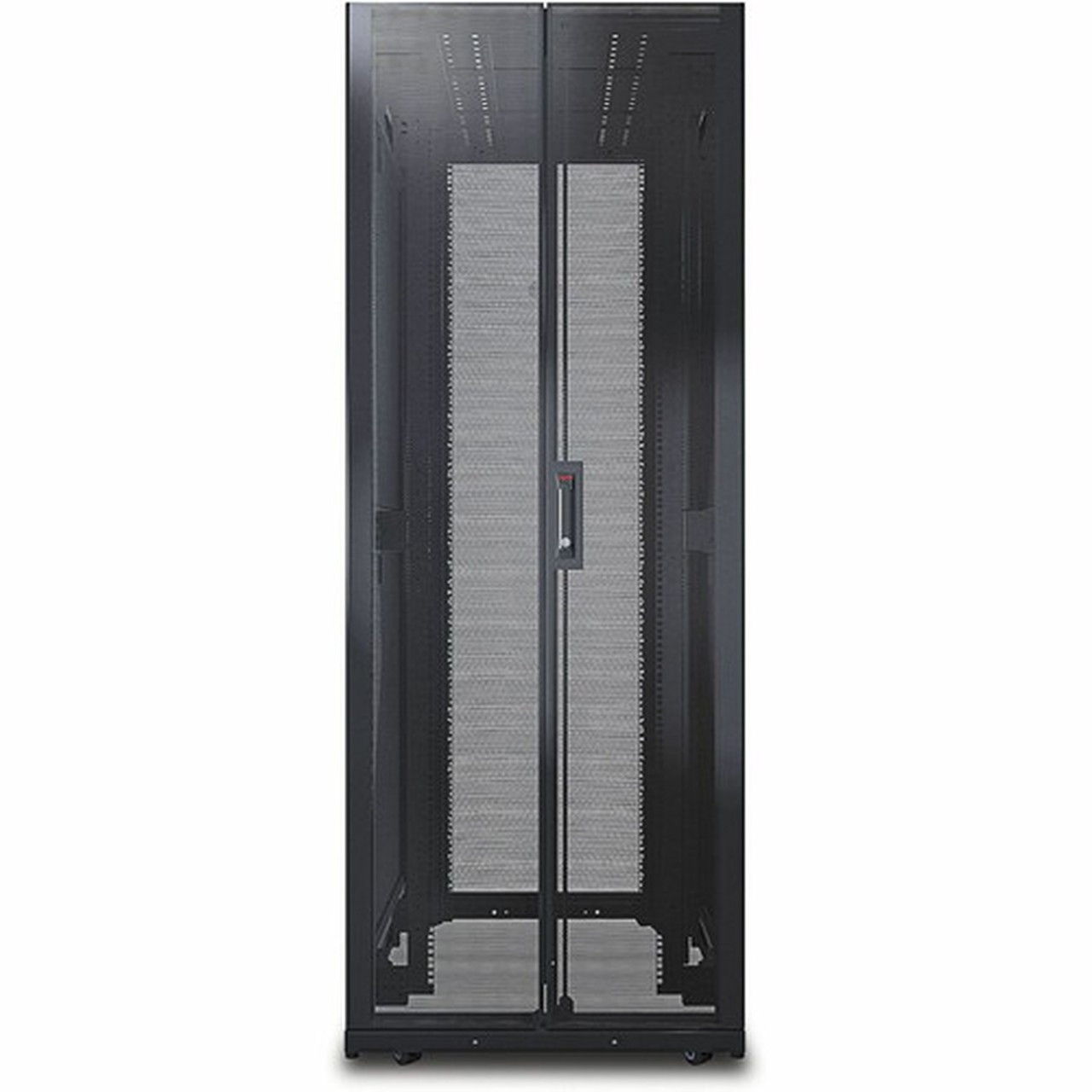

- Perforated front door with curved profile: Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AR3140 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter SX |
| Product Name | NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Networking,Airflow System |
| Features | Cable Management,Removable Side Panel,Perforated Door,Lockable Door,Adjustable Leveling Feet,Adjustable Mounting Rails,Casters |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Dynamic/Rolling Weight Capacity | 1022.73 kg |
| Static/Stationary Weight Capacity | 1363.64 kg |
| Height | 78.39" (1991 mm) |
| Width | 29.53" (750 mm) |
| Depth | 42.13" (1070 mm) |
| Rack Height | 42U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 155.95 kg |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 year repair or replace |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
Additional-pdf4
Additional-pdf5
Additional-pdf6
[/custom-user-manual]
Warranty Infomartion
5 Year
