- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- 3000 VA load capacity - work without any interruption during power outages
- 2700 W load capacity - backup power for your valuable electronics
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
Load Capacity (VA): 3 kVALoad Capacity (Watt): 2.70 kWOutput Voltage: 230 V ACBackup/Run Time (Full Load): 4 MinuteMaximum Battery Recharge Time: 3 HourHeight: 3.35" (85 mm)Width: 17.01" (432 mm)Depth: 25" (635 mm)Rack Height: 2UForm Factor: Rack-mountableWeight (Approximate): 31.30 kg
[custom-specifications]
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT3000RMXLW-IEC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS On-Line

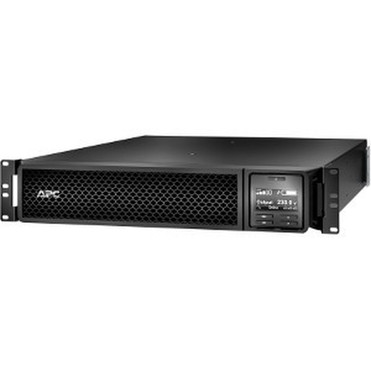

Product Name: Smart-UPS SRT 3000VA RM 208/230V IEC
Marketing Information: A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Product Type: Dual Conversion Online UPS
Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Output Voltage: 230 V AC
Battery Information
Backup/Run Time (Full Load): 4 Minute
Maximum Battery Recharge Time: 3 Hour
Physical Characteristics
Height: 3.35" (85 mm)
Width: 17.01" (432 mm)
Depth: 25" (635 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 31.30 kg
