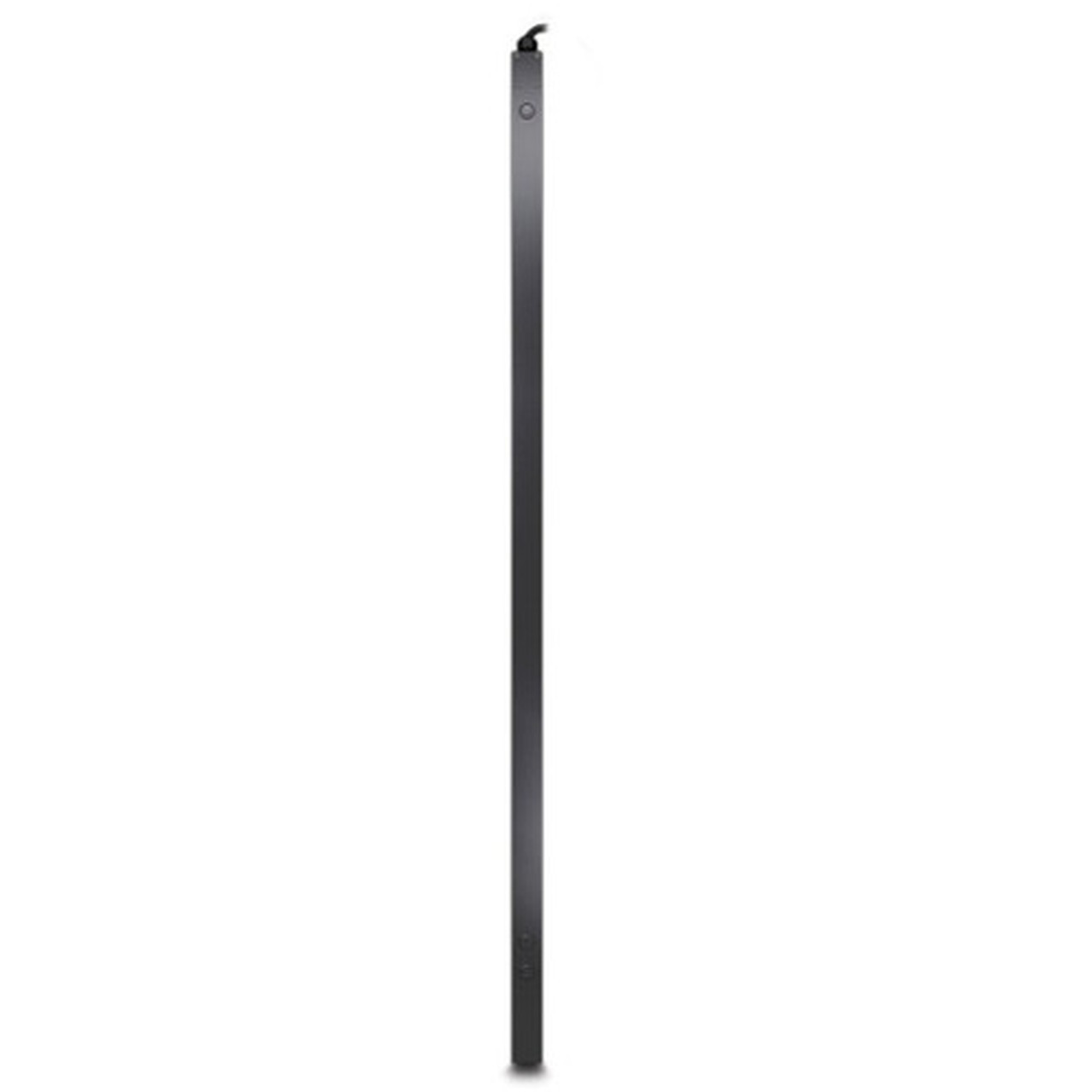

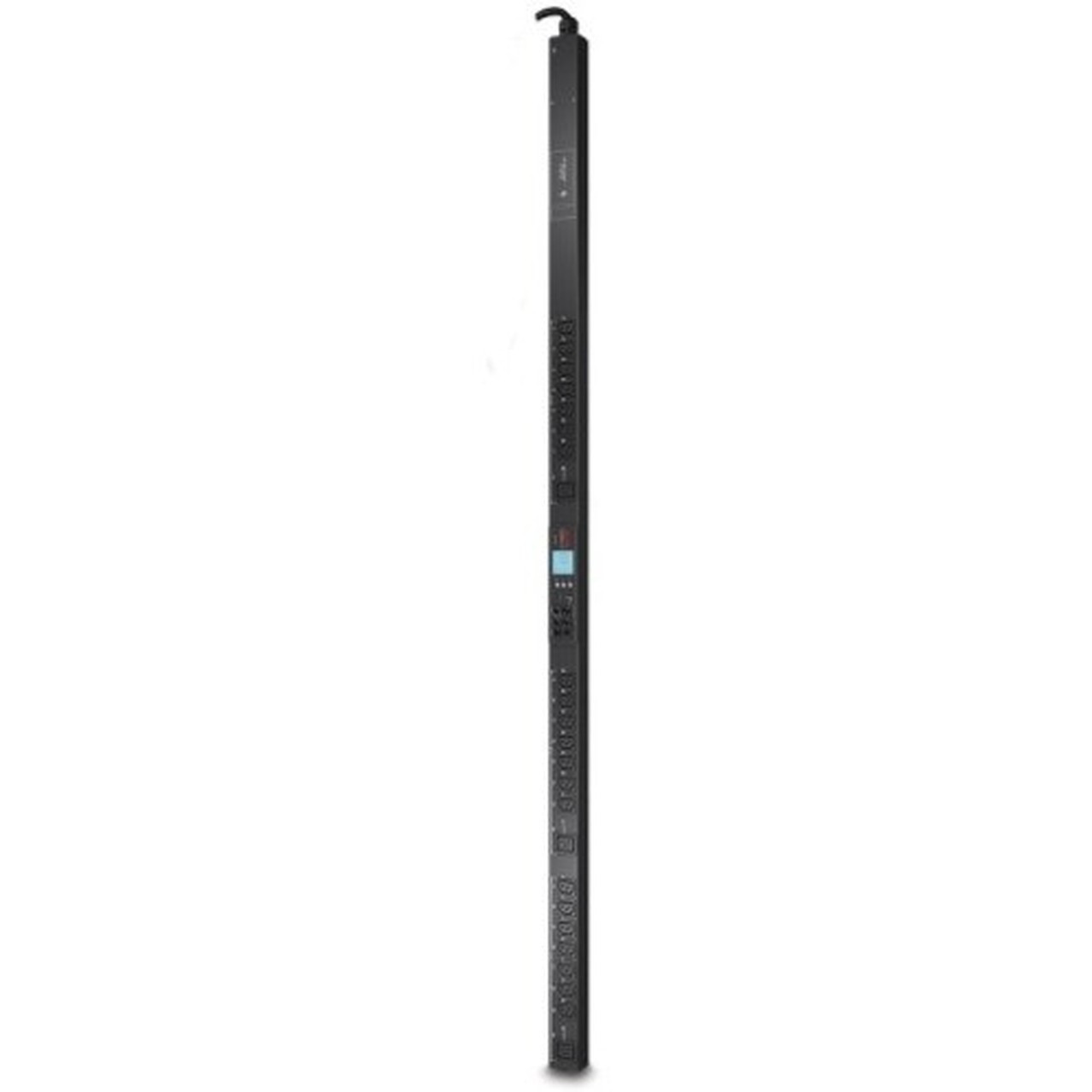

APC by Schneider Electric Switched Rack PDU 24-Outlets 5.7kW - NEMA L21-20P - IEC C13/C19 (AP8961)

Marketing Information:

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.

PDU Type: Switched

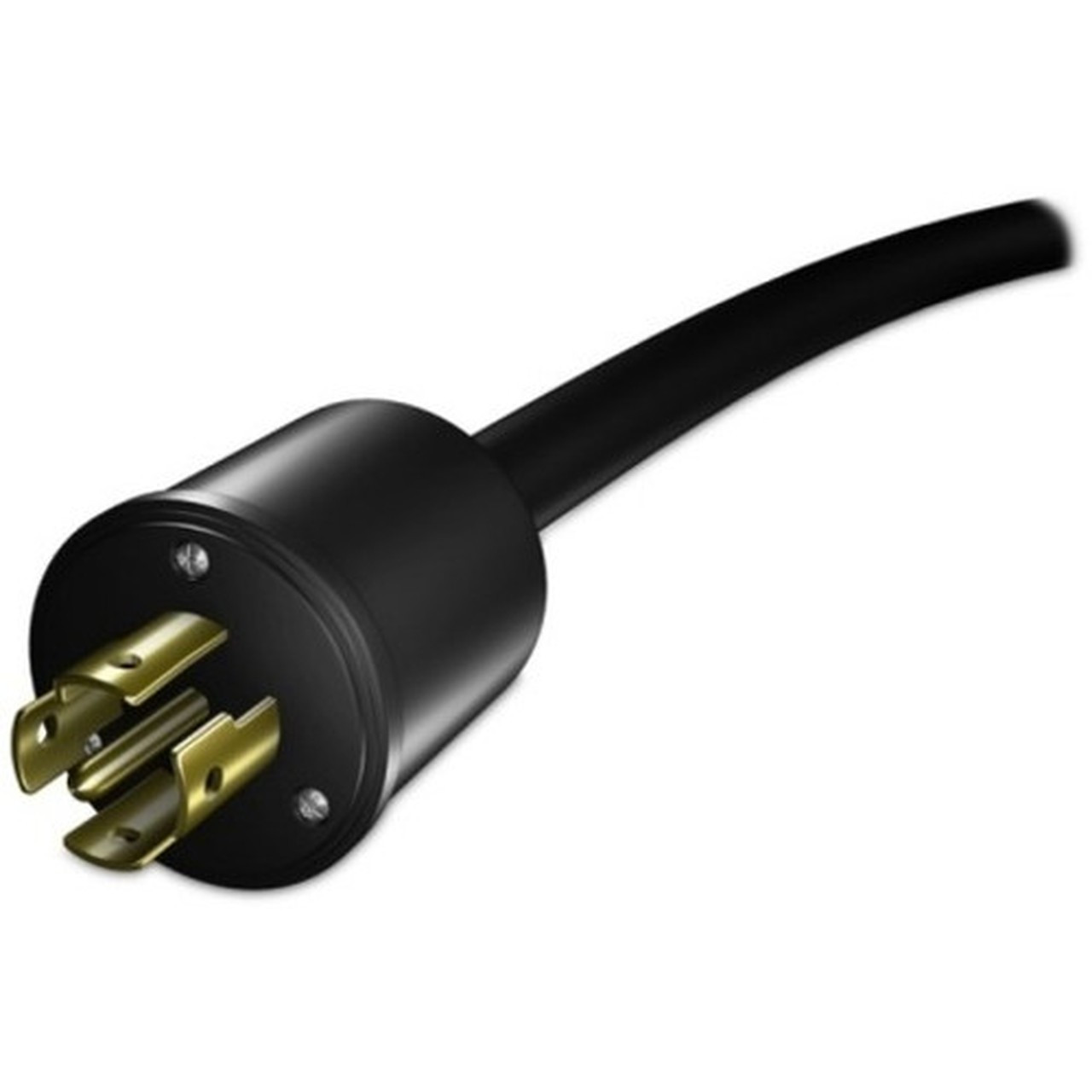

Plug/Connector Type: NEMA L21-20P

Receptacle Type: IEC 60320 C19,IEC 60320 C13

Receptacle Detail: 3 x IEC 60320 C19,21 x IEC 60320 C13

Input Voltage: 230 V AC

Output Voltage: 208 V AC

Power Rating (Watt): 5.70 kW

Mount Type: Rack-mountable

Form Factor: Tower

Height: 70.50" (1790.70 mm)

Width: 2.20" (55.88 mm)

Depth: 1.82" (46.23 mm)

Weight (Approximate): 15.20 lb (6894.60 g)

Package Contents:

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Limited Warranty: 2 Year
