- Prevent critical data loss by staying powered during a blackout with up to 2.10 kW load capacity
- Keep your sensitive devices powered with a backup of up to 14.10 minute at full load
- 3 kVA load capacity - work without any interruption during power outages
Marketing Information: A versatile UPS developed for the harshest power conditions in the world:

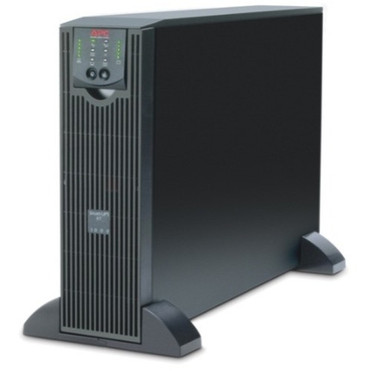

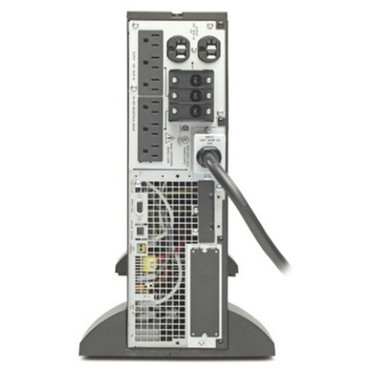

Smart-UPS RT 3000VA Rack/Tower is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Featuring double conversion on-line topology, the Smart-UPS RT 3000VA Rack/Tower protects your data by supplying reliable, network-grade power. Rack-optimized models are an ideal choice for space constrained environments.Plug/Connector Type: NEMA L5-30PReceptacle Type: Receptacle Detail: - 6 x NEMA 5-15R
- 2 x NEMA 5-20R
Number of Battery & Surge Outlets: 8Cord Length: 10 ftLoad Capacity (VA): 3 kVALoad Capacity (Watt): 2.10 kWInput Voltage: 110 V ACOutput Voltage: 120 V ACWaveform Type: Sine WaveSurge Energy Rating: 480 JAlarm: - On Battery
- Low Battery
- Overload
Status Indicators: LED display with load and battery bar-graphs:
- On Line
- On Battery
- Replace Battery
- Overload
- Bypass
Serial Port: YesBattery Characteristics: Maintenance-freeBattery Chemistry: Lead AcidBackup/Run Time (Full Load): 14.10 MinuteBackup/Run Time (Half Load): 33.90 MinuteHot Swappable: YesMaximum Operating Temperature: 113°F (45°C)Thermal Dissipation: 655 BTU/hProduct Color: BlackHeight: 5" (127 mm)Width: 17" (431.80 mm)Depth: 26" (660.40 mm)Form Factor: TowerWeight (Approximate): 54.43 kgPackage Contents: - Smart-UPS RT 3000VA Tower UPS
- CD with software
- Smart UPS signalling RS-232 cable
- User manual
Environmentally Friendly: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: SURTA3000XL
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: RT
Product Model: SURTA3000XL
Product Name: Smart-UPS RT 3000VA Tower UPS
Product Type: Double Conversion Online UPS
Technical InformationPlug/Connector Type: NEMA L5-30P
Receptacle Type:
Receptacle Detail:
- 6 x NEMA 5-15R
- 2 x NEMA 5-20R
Number of Battery & Surge Outlets: 8
Cord Length: 10 ft
Power DescriptionLoad Capacity (VA): 3 kVA
Load Capacity (Watt): 2.10 kW
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 480 J
ManagementAlarm:
- On Battery
- Low Battery
- Overload
Controls/IndicatorsStatus Indicators:
LED display with load and battery bar-graphs:
- On Line
- On Battery
- Replace Battery
- Overload
- Bypass
Interfaces/PortsSerial Port: Yes
Battery InformationBattery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 14.10 Minute
Backup/Run Time (Half Load): 33.90 Minute
Hot Swappable: Yes
Environmental ConditionsMaximum Operating Temperature: 113°F (45°C)
Thermal Dissipation: 655 BTU/h
Physical CharacteristicsProduct Color: Black
Height: 5" (127 mm)
Width: 17" (431.80 mm)
Depth: 26" (660.40 mm)
Form Factor: Tower
Weight (Approximate): 54.43 kg
MiscellaneousPackage Contents:
Smart-UPS RT 3000VA Tower UPS CD with softwareSmart UPS signalling RS-232 cableUser manualEnvironmentally Friendly: Yes
WarrantyLimited Warranty: 2 Year
