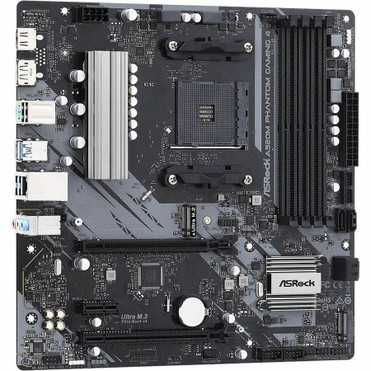

ASRock A520M Phantom Gaming 4 Gaming Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Micro ATX - Ryzen 3, Ryzen 5 Processor - GB (A520M PHANTOM GAMING 4)
Write a Review
ASRock
ASRock A520M Phantom Gaming 4 Gaming Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Micro ATX - Ryzen 3, Ryzen 5 Processor - GB (A520M PHANTOM GAMING 4)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- A520M Phantom Gaming 4 Gaming Desktop Motherboard
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
Marketing Information:
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across thePolychrome RGB Sync-certifiedaccessories to create their own unique lighting effects.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive,AMD StoreMI technology"combines" these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Chipset Manufacturer: AMD
Chipset Model: A520
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3,Ryzen 5
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 4733 MHz,4666 MHz,4600 MHz,4533 MHz,4466 MHz,4400 MHz,4333 MHz,4266 MHz,4200 MHz,4133 MHz,4000 MHz,3866 MHz,3800 MHz,3733 MHz,3600 MHz,3466 MHz,3200 MHz,2933 MHz,2667 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10
Onboard Video: CPU Dependent Video
Graphics Controller Model: Radeon Vega Series Graphics
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 3.0
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Form Factor: Micro ATX
Width: 9.61" (244 mm)
Depth: 9.61" (244 mm)
Package Contents:
Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX gaming desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | A520M PHANTOM GAMING 4 |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | A520M Phantom Gaming 4 |
| Product Name | A520M Phantom Gaming 4 Gaming Desktop Motherboard |
| Package Type | Retail |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | A520 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3,Ryzen 5 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4733 MHz,4666 MHz,4600 MHz,4533 MHz,4466 MHz,4400 MHz,4333 MHz,4266 MHz,4200 MHz,4133 MHz,4000 MHz,3866 MHz,3800 MHz,3733 MHz,3600 MHz,3466 MHz,3200 MHz,2933 MHz,2667 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | Radeon Vega Series Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
| Miscellaneous | |
| Package Contents |
|
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
