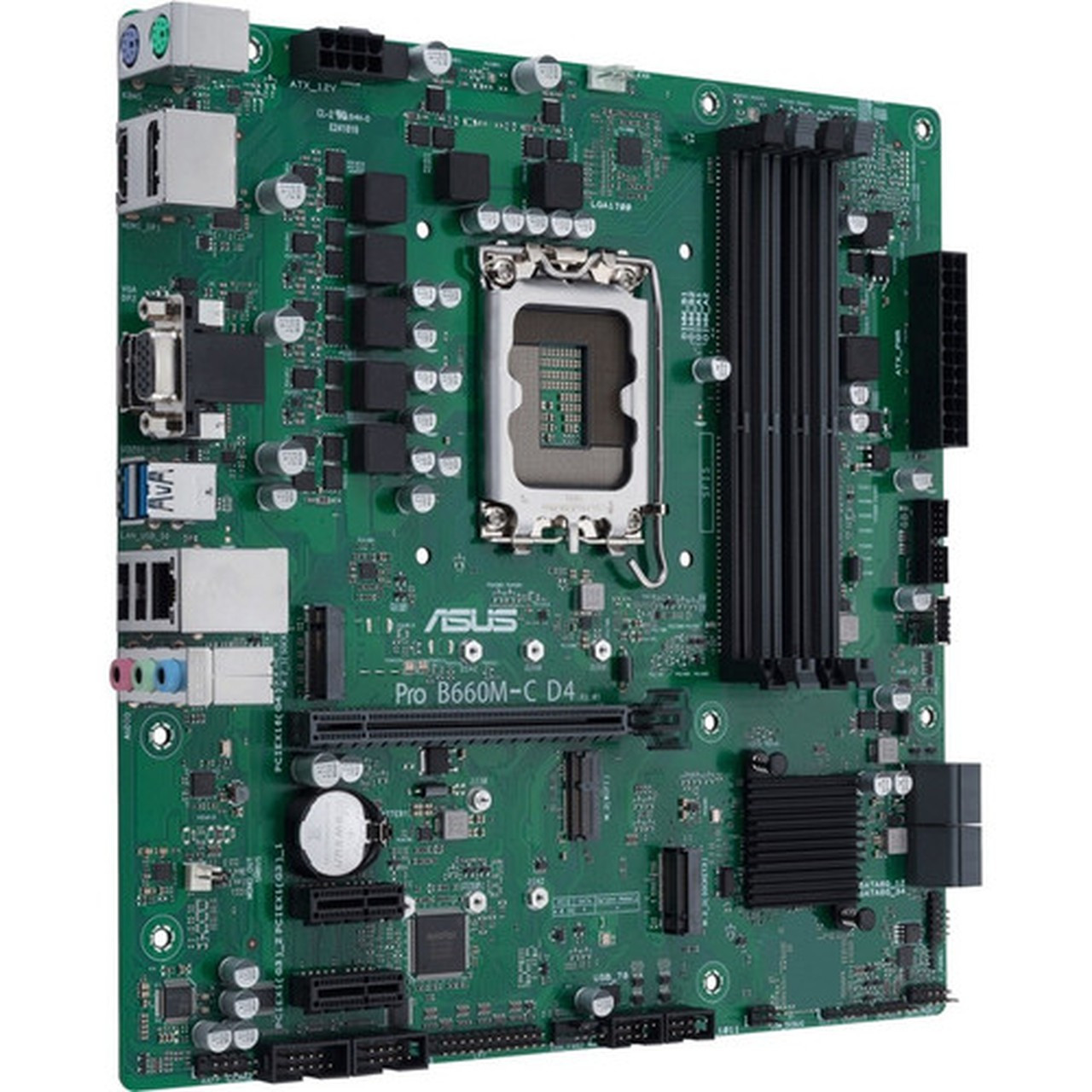

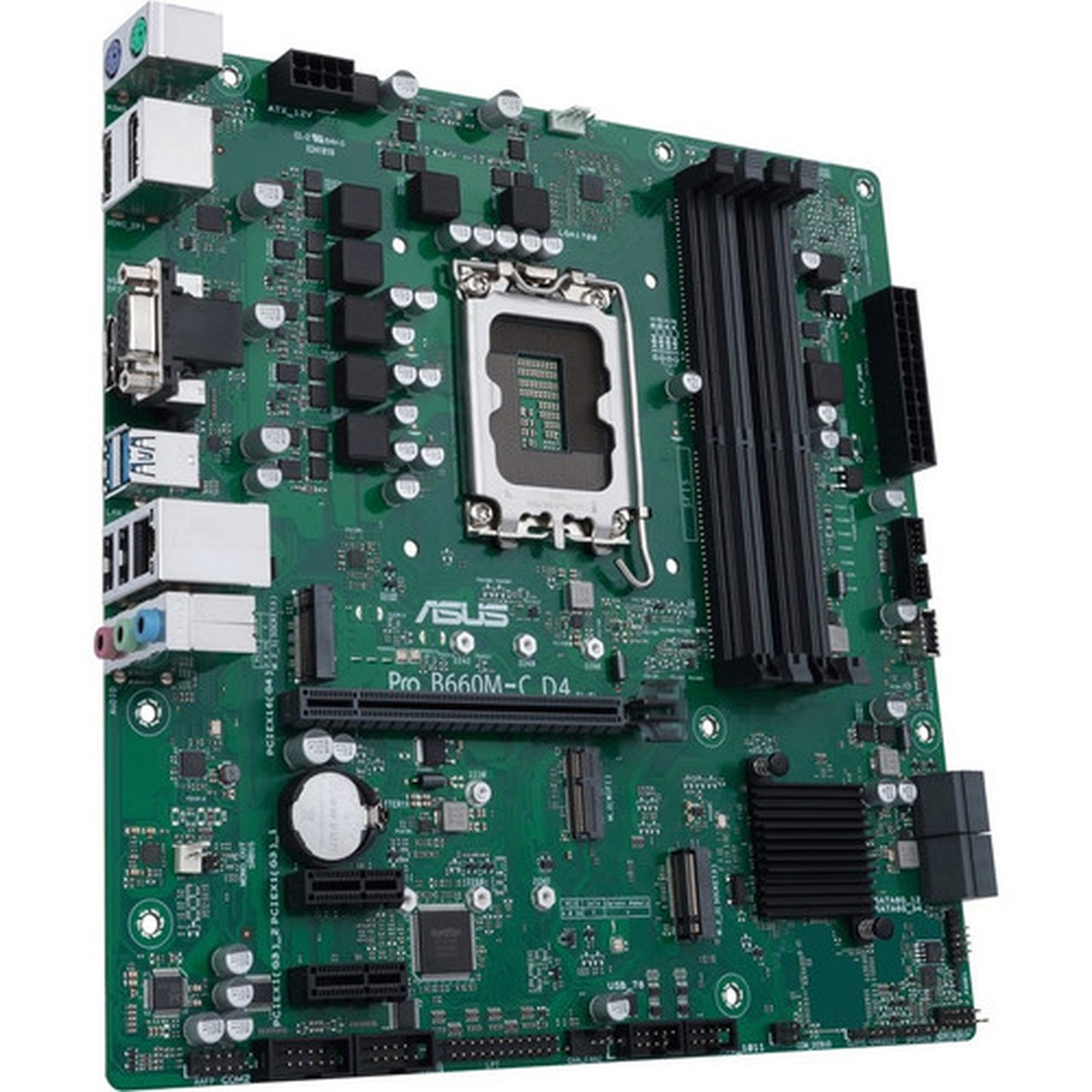

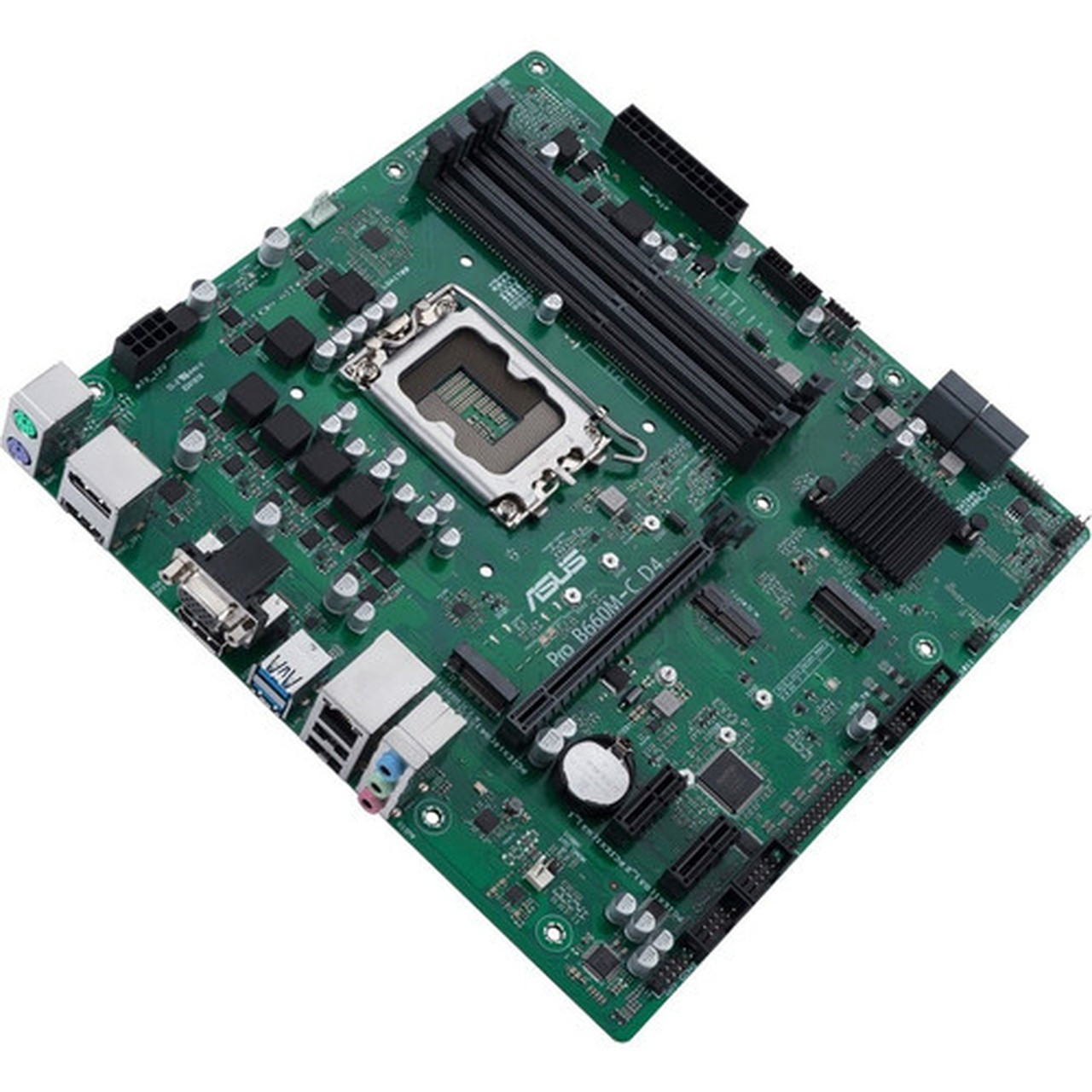

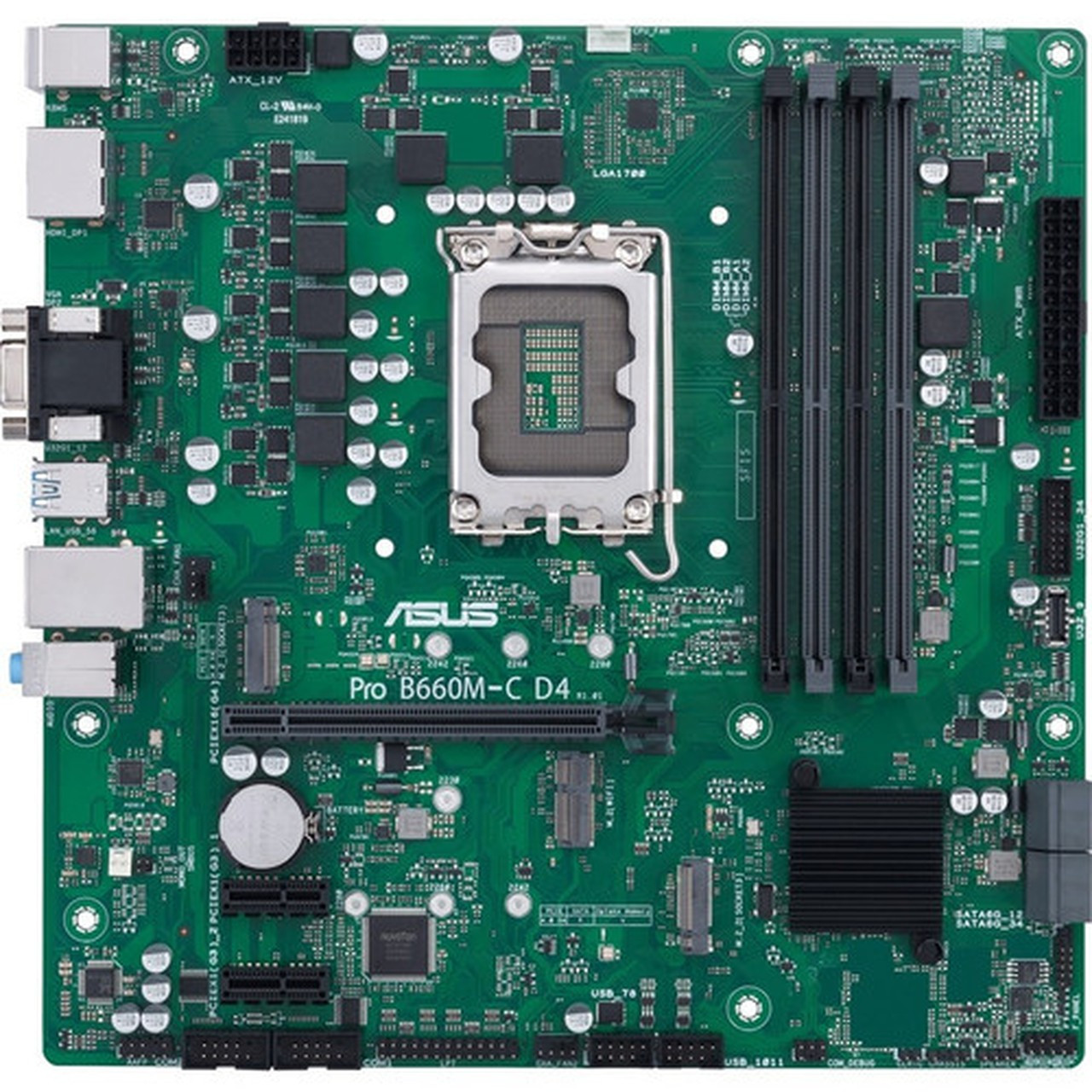

Asus B660M-C D4-CSM Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Core (PRO B660M-C D4-CSM)
Write a Review
Asus
Asus B660M-C D4-CSM Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Core (PRO B660M-C D4-CSM)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- PRO B660M-C D4-CSM Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- 1 x M.2 Key E screw package
- 1 x Support DVD
- 1 x ACC Express Activation Key Card
- 1 x User Guide
Chipset Manufacturer: Intel
Chipset Model: B660
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Pentium Gold,Celeron,Core i5,Core i9,Core i3,Core i7
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 5000 MHz,4800 MHz,4600 MHz,4400 MHz,4266 MHz,4000 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel RST: Yes
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 3.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 8
Number of Onboard USB 2.0 Ports: 3
Number of Onboard USB 3.2 Ports: 4
Form Factor: Micro ATX
Width: 9.61" (244 mm)
Depth: 9.61" (244 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX desktop motherboard
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PROB660M-CD4-CSM |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Series | PRO |
| Product Model | B660M-C D4-CSM |
| Product Name | PRO B660M-C D4-CSM Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B660 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Pentium Gold,Celeron,Core i5,Core i9,Core i3,Core i7 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5000 MHz,4800 MHz,4600 MHz,4400 MHz,4266 MHz,4000 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Intel RST | Yes |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of Onboard USB 3.2 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
Warranty Information
3 Year
