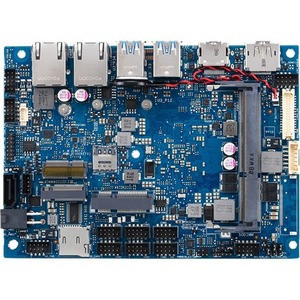

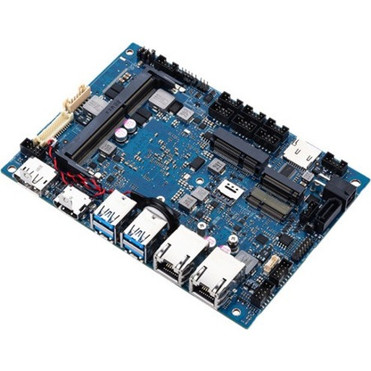

Asus E393S-IM-AA Single Board Computer Motherboard - Intel Chipset - Socket BGA-1296 - 3.5" SBC - Atom x5-E3930 - 8 GB DDR3L SDRAM RAM (E393S-IM-AA)
Write a Review
Asus
Asus E393S-IM-AA Single Board Computer Motherboard - Intel Chipset - Socket BGA-1296 - 3.5" SBC - Atom x5-E3930 - 8 GB DDR3L SDRAM RAM (E393S-IM-AA)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- E393S-IM-AA Single Board Computer Motherboard
- 1 x IO Shield
- 1 x SATA 6G Cable
- 2 x M.2 Screw Pack
Marketing Information:
ASUS E393S-IM-AA is a 3.5" SBC industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering up to 6 COM ports(2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. This product is designed for high performance and silent operation in harsh environment. ASUS E393S-IM-AA is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-1296
Integrated Processor Type: Atom
Integrated Processor Model: x5-E3930
Integrated Processor Speed: 1.30 GHz
Integrated Processor Cache: 2 MB
Integrated Processor Core: Dual-core (2 Core)
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 8 GB
Memory Speed Supported: 1866 MHz,1600 MHz,1333 MHz
Memory Technology: DDR3L SDRAM
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: HD Graphics 505
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 1
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Form Factor: 3.5" SBC
Width: 5.75" (146 mm)
Depth: 4.13" (105 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
- DDR3L SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- 3.5" SBC style to support numerous features for constructing a reliable computing system
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | E393S-IM-AA |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | E393S-IM-AA |
| Product Name | E393S-IM-AA Single Board Computer Motherboard |
| Product Type | Single Board Computer Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket BGA-1296 |
| Integrated Processor | |
| Integrated Processor Type | Atom |
| Integrated Processor Model | x5-E3930 |
| Integrated Processor Speed | 1.30 GHz |
| Integrated Processor Cache | 2 MB |
| Integrated Processor Core | Dual-core (2 Core) |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 8 GB |
| Memory Speed Supported | 1866 MHz,1600 MHz,1333 MHz |
| Memory Technology | DDR3L SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | HD Graphics 505 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.1 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 1 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | 3.5" SBC |
| Width | 5.75" (146 mm) |
| Depth | 4.13" (105 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
[/custom-specifications]
