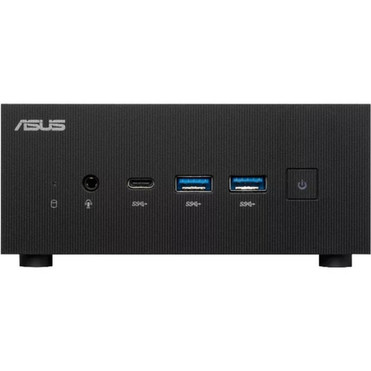

Asus ExpertCenter PN52-BB5000X1TD-NL Barebone System - Mini PC - 1 x Processor Support - Ryzen 5 5600H 3.20 GHz - AMD Chip - 64 GB RAM (90MR00R2-M00130)

Marketing Information:

Ultra-compact mini PC with AMD Ryzen™ 5000H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen3 x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E

• Powered by the latest AMD Ryzen™ 5000H Series Processor with Radeon™ graphics
• Quad-4K displays support and 8K UHD support**
• Support 7 USB ports, including 2 x Type C ports, and on-board dual HDMI ports
• Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
• Military-grade durability: Adheres to the MIL-810H military standards for outstanding quality and reliability
• Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
• Onboard 2.5GbE LAN delivering faster Ethernet connectivity
• Multi-storage design, support up to up to 2x M.2 SSD and 1x HDD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Configurable Port supports DP1.4/VGA/2.5G LAN/COM/HDMI options
• 24/7 reliability - Extensively tested to ensure long-term dependability

ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 and Cinebench benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.

Graphics Performance

ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 15% in 3DMark Fire Strike to 23.6% in the 3DMark Night Raid performance benchmarks.

4K Resolution & Quad Display Support

ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI^® ports, DisplayPort™ over USB-C^® or other user-configurable ports, without any limitation on the combination used.

Ultra-realistic 8K Visuals

ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input

ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

Easy Upgrades

An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that's required is a screwdriver.

Number of Processors Supported: 1

Processor Type: Ryzen 5

Processor Model: 5600H

Processor Speed: 3.20 GHz

Maximum Turbo Speed: 4.10 GHz

64-bit Processing: Yes

Chipset Manufacturer: AMD

Maximum Memory Supported: 64 GB

Memory Technology: DDR4 SDRAM

Controller Type: Serial ATA/600,NVMe

Graphics Controller Model: Radeon Graphics

Graphics Memory Technology: DDR4 SDRAM

Graphics Memory Accessibility: Shared

Ethernet Technology: 2.5 Gigabit Ethernet

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11ax

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.2

HDMI (Rear): Yes

Total Number of USB Ports: 7

Number of USB 3.2 Gen 1 Ports: 4

Number of USB 3.2 Gen 2 Ports: 1

USB Type-C (Front): Yes

USB Type-C (Rear): Yes

USB Type-C Detail: 1 x USB 3.2 Gen2 TypeC (w/ DP output & PowerDelivery input), 1 x USB 3.2 Gen1 Type C

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Number of SATA Interfaces: 1

Operating System Supported: Windows 11 Pro,Windows 11 Home

Maximum Power Supply Wattage: 120 W

Color Family: Black

Product Color: Eco Black

Form Factor: Mini PC

Height: 2.28" (58 mm)

Width: 4.72" (120 mm)

Depth: 5.12" (130 mm)

Package Contents:

• ExpertCenter PN52-BB5000X1TD-NL Barebone System
• Power Adapter

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
