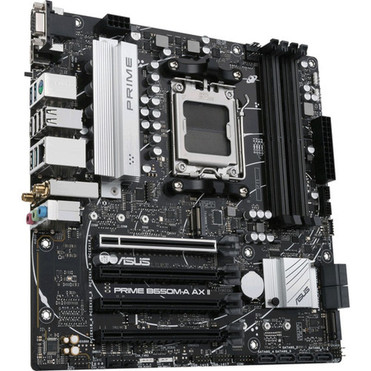

Asus Prime B650M-A AX II Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX - Ryzen 7 Processor Supported - 128 GB (PRIME B650M-A AX II)

Marketing Information:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Flexible Cooling Controls

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.

Chipset Manufacturer: AMD

Chipset Model: B650

Total Processor Supported: 1

Processor Socket: Socket AM5

Processor Supported: Ryzen 7

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 128 GB

Memory Speed Supported: 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,10

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.2

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Total Number of Expansion Slots: 4.0

Total Number of PCI Express Slots: 4

Number of PCI Express x16 Slots: 4

PCI Express Standard: PCI Express 4.0,PCI Express 5.0

Total Number of USB Ports: 8

Number of USB 3.2 Gen 1 Type-A Ports: 2

Number of USB 3.2 Gen 2 Type-A Ports: 2

S/PDIF: Yes

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Number of SATA Interfaces: 8

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 7

Number of Onboard USB 2.0 Ports: 4

Form Factor: Micro ATX

Width: 9.60" (243.84 mm)

Depth: 9.60" (243.84 mm)

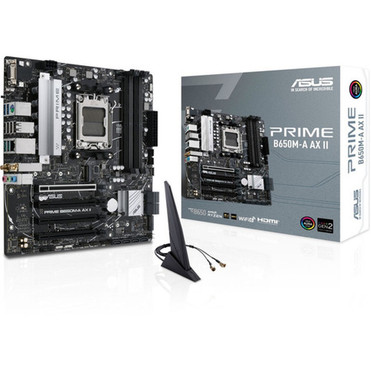

Package Contents:

• PRIME B650M-A AX II Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x Screw Package for M.2 SSD
• 1 x User guide

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
