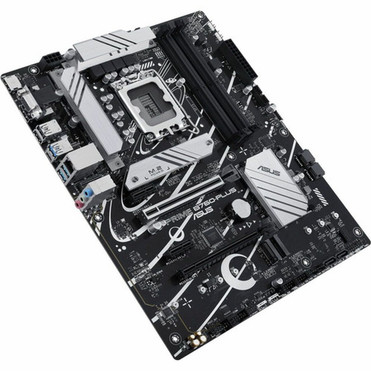

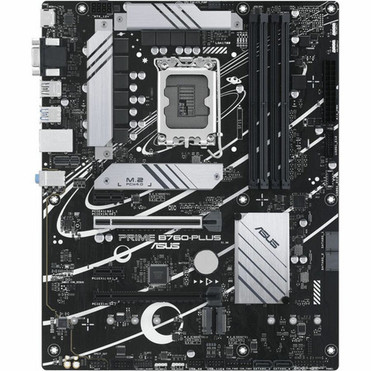

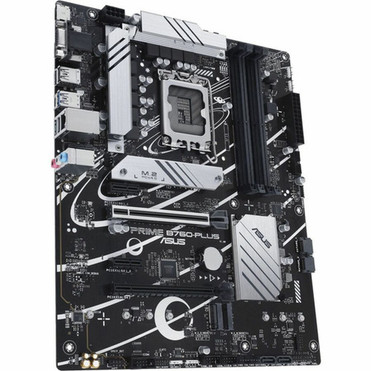

Asus Prime PRIME B760-PLUS Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Celeron, Pentium Gold Processor - (PRIME B760-PLUS)
Write a Review
Asus
Asus Prime PRIME B760-PLUS Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Celeron, Pentium Gold Processor - (PRIME B760-PLUS)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- Intelligent Control
- UEFI BIOS
- Prime B760-PLUS Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x Screw Packages for M.2 SSD
- 1 x User guide
Marketing Information:
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13thGen Intel®Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Chipset Manufacturer: Intel
Chipset Model: B760
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 13th Gen,12th Gen
Processor Supported: Core,Celeron,Pentium Gold
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 192 GB
Memory Speed Supported: 7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,10,1,5
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Total Number of Expansion Slots: 4.0
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 4.0,PCI Express 3.0,PCI Express 5.0
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B760-PLUS |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | PRIME B760-PLUS |
| Product Name | Prime B760-PLUS Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen,12th Gen |
| Processor Supported | Core,Celeron,Pentium Gold |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,10,1,5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 4.0,PCI Express 3.0,PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
Additional-pdf4
[/custom-user-manual]
