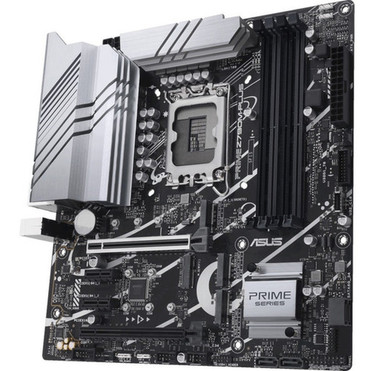

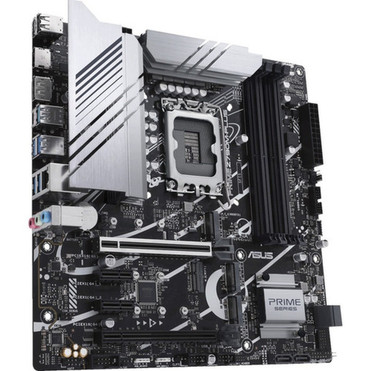

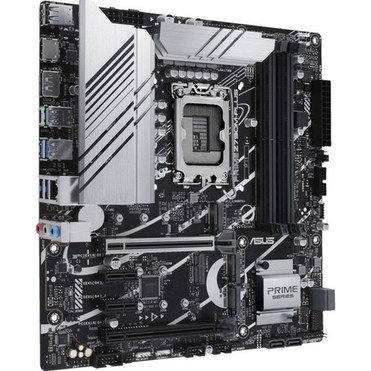

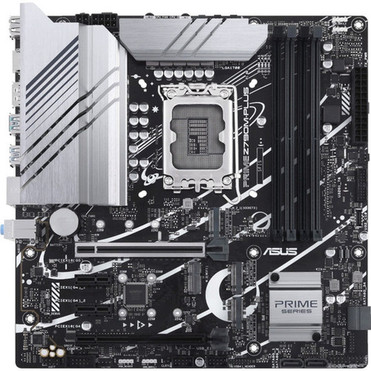

Asus Prime Z790M-PLUS Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor - (PRIME Z790M-PLUS)

(No reviews) Write a Review
$290.95
$285.30
$277.86
(You save $13.09 )
SKU: PRIME Z790M-PLUS
UPC: 197105025745
Weight: 2.80 LBS
Adding to cart… The item has been added
  • Compatible Core processor lets you perform all your computational tasks at a swift pace
  • DDR5 SDRAM slot for convenient installation of memory
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
    Chipset Manufacturer: Intel
    Chipset Model: Z790
    Total Processor Supported: 1
    Processor Socket: Socket LGA-1700
    Processor Generation Supported:
    • 13th Gen
    • 12th Gen

    Processor Supported:
    • Core
    • Pentium Gold
    • Celeron

    Number of Memory Slots: 4
    Memory Form Factor:
    • DIMM
    • UDIMM

    Maximum Memory Supported: 128 GB
    Memory Speed Supported:
    • 7000 MHz
    • 6800 MHz
    • 6600 MHz
    • 6400 MHz
    • 6200 MHz
    • 6000 MHz
    • 5800 MHz
    • 5600 MHz
    • 5400 MHz
    • 5200 MHz
    • 5000 MHz
    • 4800 MHz

    Memory Technology: DDR5 SDRAM
    Controller Type: Serial ATA/600
    RAID Supported: Yes
    RAID Levels:
    • 0
    • 1
    • 5
    • 10

    Onboard Video: CPU Dependent Video
    Audio Channels: 7.1
    Gigabit Ethernet: Yes
    Number of Total Expansion Slots: 4
    Total Number of PCI Express Slots: 4
    Number of PCI Express x1 Slots: 2
    Number of PCI Express x16 Slots: 2
    PCI Express Standard:
    • PCI Express 5.0
    • PCI Express 4.0

    Total Number of USB Ports: 8
    Number of USB 3.2 Gen 1 Type-A Ports: 4
    Number of USB 3.2 Gen 2 Type-A Ports: 1
    S/PDIF: Yes
    HDMI: Yes
    HDMI Version: 2.1
    DisplayPort: Yes
    Number of Network (RJ-45) Ports: 1
    Thunderbolt: Yes
    Number of Thunderbolt 4 Ports: 1
    Number of SATA Interfaces: 4
    Number of M.2 Interfaces: 3
    Total Number of Onboard USB Ports: 7
    Number of Onboard USB 2.0 Ports: 4
    Form Factor: Micro ATX
    Width: 9.60" (243.84 mm)
    Depth: 9.60" (243.84 mm)
    Package Contents:
    • PRIME Z790M-PLUS Desktop Motherboard
    • 2 x SATA 6Gb/s Cables
    • 1 x I/O Shield
    • 2 x Screw packages for M.2 SSD
    • 1 x User Guide

    Limited Warranty: 3 Year

[custom-specifications]

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: PRIME Z790M-PLUS
Manufacturer Website Address: http://www.asus.com
Brand Name: Asus
Product Line: Prime
Product Model: Z790M-PLUS
Product Name: PRIME Z790M-PLUS Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported:
  • 13th Gen
  • 12th Gen

Processor Supported:
  • Core
  • Pentium Gold
  • Celeron

Memory
Number of Memory Slots: 4
Memory Form Factor:
  • DIMM
  • UDIMM

Maximum Memory Supported: 128 GB
Memory Speed Supported:
  • 7000 MHz
  • 6800 MHz
  • 6600 MHz
  • 6400 MHz
  • 6200 MHz
  • 6000 MHz
  • 5800 MHz
  • 5600 MHz
  • 5400 MHz
  • 5200 MHz
  • 5000 MHz
  • 4800 MHz

Memory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
PCI Express Standard:
  • PCI Express 5.0
  • PCI Express 4.0

Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 3.2 Gen 1 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Package Contents:
  • PRIME Z790M-PLUS Desktop Motherboard
  • 2 x SATA 6Gb/s Cables
  • 1 x I/O Shield
  • 2 x Screw packages for M.2 SSD
  • 1 x User Guide

Warranty
Limited Warranty: 3 Year

[/custom-specifications]

3 Year
