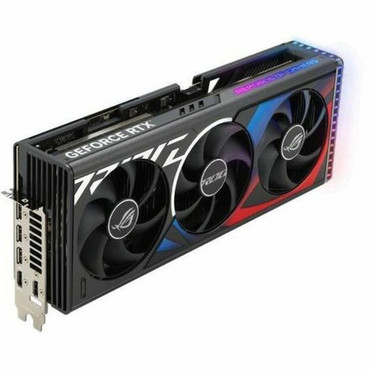

Asus ROG NVIDIA GeForce RTX 4080 SUPER Graphic Card - 16 GB GDDR6X - 7680 x 4320 - 2.67 GHz Boost Clock - 256 bit Bus Width - PCI 4.0 (ROG-STRIX-RTX4080S-O16G-GAMING)

Marketing Information:

ROG Strix GeForce RTX™ 4080 SUPER 16GB GDDR6X OC Edition

ROG Strix GeForce RTX™ 4080 SUPER 16GB GDDR6X OC Edition with DLSS 3 and chart-topping thermal performance.

• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• OC mode: 2670 MHz (OC mode)/ 2640 MHz (Default mode)
• Axial-tech fans scaled up for 23% more airflow
• New patented vapor chamber with milled heat spreader for lower GPU temps
• 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
• Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
• Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

NVIDIA Ada Lovelace Architecture | Designed to Give You Superpowers

New Streaming Multiprocessors

• Up to 2X performance and power efficiency

Fourth-Gen Tensor Cores

• Up to 4X performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

• Up to 2X ray tracing performance

Axial-tech Upgrades | A Fresh Spin

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology | Orchestrated Chill

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence.

3.5-slot Design | Through Thick and Fin

The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4080 SUPER GPU so that it can be efficiently whisked away by the three Axial-tech fan

Patented Vapor Chamber | Phase Changer

A vapor chamber featuring milled pathways lets the heat pipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heat pipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load

Premium Power Delivery | 1st Responder

Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries

Compact PCB | Packs a Punch

Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent

Metal Exoskeleton | Ultra-rigid

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow

FanConnect II | Hook up

Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks

API Supported: OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 10240

Features: Triple-fan Cooler

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4080 SUPER

GPU Boost Clock: 2.67 GHz

Standard Memory: 16 GB

Memory Technology: GDDR6X

Bus Width: 256 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 850 W

Power Connector: 1x 16-pin

Slot Space Required: Quad

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 2.76" (70.10 mm)

Width: 5.88" (149.30 mm)

Length: 14.08" (357.60 mm)

Platform Supported: PC
