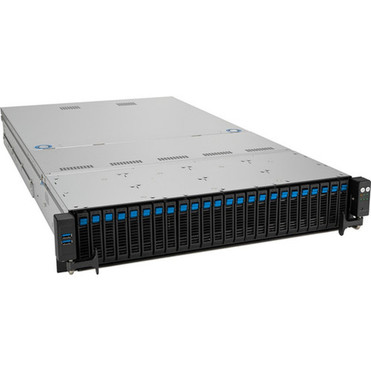

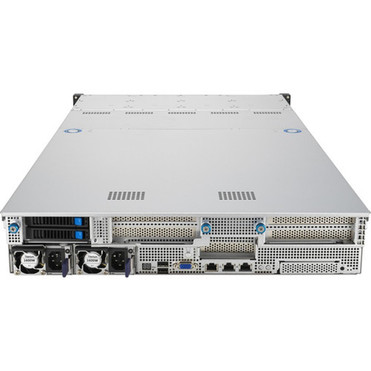

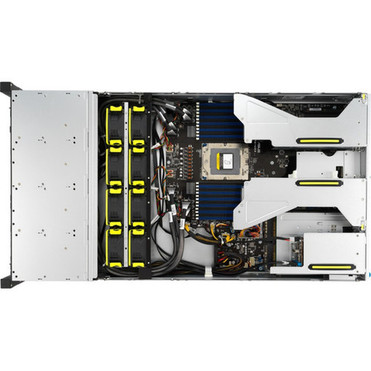

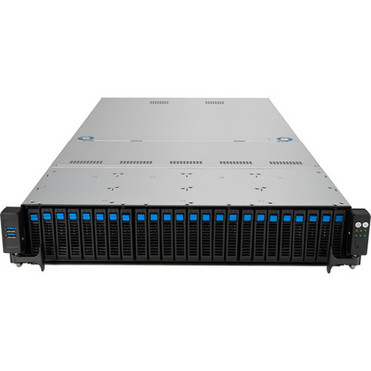

Asus RS520A-E12-RS24U-16W2RB Barebone System - 2U Rack-mountable - Socket SP5 LGA-6096 - 1 x Processor Support - AMD Chip - 6 TB DDR4 (RS520A-E12-RS24U-16W2RB)

Marketing Information:

RS520A-E12-RS24UAMD EPYC™ 9004 single-processor 2U server that supports up to 24 DIMM, 24 NVMe, five PCIe® 5.0 slots, two M.2, OCP 3.0, two dual-slot GPUs, and ASUS ASMB11-iKVM

KEY FEATURES

• Powerful performance:Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
• Scale-up storage and expansion design:Up to 24 all-flash NVMe drives on the front panel, two drives in the real panel, and 5 PCIe 5.0 slots for higher bandwidth and system upgrade
• Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
• Air cooling solution: With heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers for versatile workloads
• Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
• Read for AI and HPC workloads:Up to two dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx

PCIe 5.0 Ready | Faster storage, graphics and networking capabilities

PCI Express^® (PCIe^®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

AMD EPYC™ 9004 Series Processors

The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe^® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.

World Records Leadership

ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.

ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.

More from the Manufacturer

Number of Processors Supported: 1

Processor Socket: Socket SP5 LGA-6096

Processor Supported: EPYC

Chipset Manufacturer: AMD

Maximum Memory Supported: 6 TB

Memory Technology: DDR4 SDRAM

Memory Standard: DDR5-4800/PC5-38400

Total Number of Memory Slots: 24

Controller Type: Serial Attached SCSI (SAS),Serial ATA

Graphics Controller Model: AST2600

Ethernet Technology: Gigabit Ethernet

Number of Total Expansion Bays: 26

Total Number of USB Ports: 4

Number of USB 3.2 Gen 1 Ports: 4

Number of VGA Ports: 1

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 1.60 kW

Form Factor: Rack-mountable

Rack Height: 2U

Height: 3.47" (88.10 mm)

Width: 17.68" (449 mm)

Depth: 33.07" (840 mm)

Weight (Approximate): 42.20 lb (19140 g)

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
