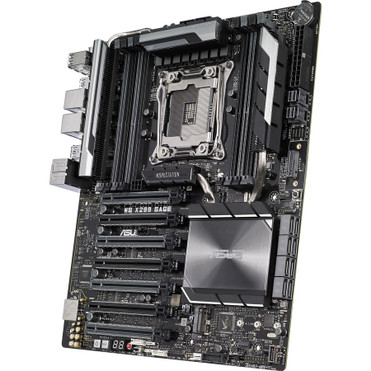

Asus WS X299 SAGE Workstation Motherboard - Intel X299 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - SSI CEB - Core - 128 (WS X299 SAGE)
Write a Review
Asus
Asus WS X299 SAGE Workstation Motherboard - Intel X299 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - SSI CEB - Core - 128 (WS X299 SAGE)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Marketing Information:
Multi-GPU Support
WS X299 Sage fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFireX™ 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA® Quadro®. With performance beyond 15.23 TFLOPS, NVIDIA Quadro is the perfect complement to WS X299 Sage, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.
5-Way Optimization
ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
Chipset Manufacturer: Intel
Chipset Model: X299
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Core X-Series
Multi GPU Supported: CrossFireX,SLI
Number of Memory Slots: 8
Memory Form Factor: UDIMM,DIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 4000 MHz,4133 MHz,3600 MHz,4200 MHz,2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel VROC: Yes
Intel RSTe: Yes
RAID Supported: Yes
RAID Levels: 10,5,1,0
Onboard Video: No
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x16 Slots: 7
Total Number of USB Ports: 12
Number of USB 2.0 Ports: 4
Number of USB 3.1 Ports: 7
S/PDIF: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.1 Ports: 3
Form Factor: SSI CEB
Width: 12" (304.80 mm)
Depth: 10.50" (266.70 mm)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 3 Year
- Compatible Core X-Series processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Supported 10 RAID levels provide data reliability and fault tolerance
- The SSI CEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
- 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | WS X299 SAGE |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | WS X299 SAGE |
| Product Name | WS X299 SAGE Workstation Motherboard |
| Product Type | Workstation Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | X299 |
| Total Processor Supported | 1 |
| Processor Socket | Socket R4 LGA-2066 |
| Processor Supported | Core X-Series |
| Multi GPU Supported | CrossFireX,SLI |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | UDIMM,DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4000 MHz,4133 MHz,3600 MHz,4200 MHz,2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Intel VROC | Yes |
| Intel RSTe | Yes |
| RAID Supported | Yes |
| RAID Levels | 10,5,1,0 |
| Video | |
| Onboard Video | No |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x16 Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.1 Ports | 7 |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 3.1 Ports | 3 |
| Physical Characteristics | |
| Form Factor | SSI CEB |
| Width | 12" (304.80 mm) |
| Depth | 10.50" (266.70 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
Warranty Information
3 Year
