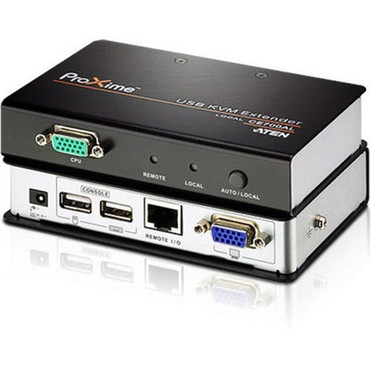

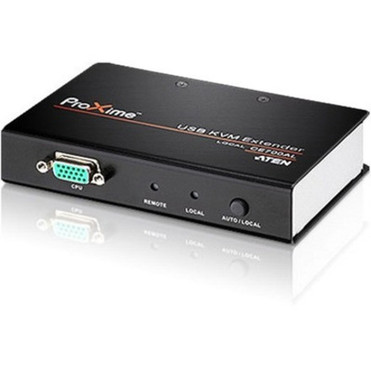

ATEN Proxime CE700A KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 492.13 ft (150000 mm) Range - WUXGA - (CE700A)
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- USB Keyboard and USB Mouse Ports
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Automatic gain control - adjusts signal strength to compensate for distance
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Marketing Information:
- Proxime CE700A KVM Console/Extender
- 2 x Power Adapters
- 1 x USB KVM Cable
- 2 x Grounding Wires
- 1 x Rack Mount Kit
- 1 x User Manual
- 1 x Quick Start Guide
The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.
Connectivity Technology: WiredKVM Technology: AnalogNumber of Computers Supported: 1Number of Local Users Supported: 1Number of Remote Users Supported: 1Maximum Operating Distance: 492.13 ft (150000 mm)Graphic Mode: WUXGAMaximum Video Resolution: 1920 x 1200Network (RJ-45): YesUSB: YesVGA: YesProprietary Interface: YesNumber of VGA Ports: 2Number of Network (RJ-45) Ports: 2Number of USB Ports: 4Input Voltage: 5.3 V DCForm Factor: Rack-mountableTransmitter Weight (Approximate): 320 gReceiver Weight (Approximate): 310 gPackage Contents:[custom-specifications]
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CE700A
Manufacturer Website Address: http://www.aten.com/us/en/
Brand Name: ATEN
Product Line: ProXime
Product Model: CE700A
Product Name: Proxime CE700A KVM Console/Extender
Packaged Quantity: 1
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 492.13 ft (150000 mm)
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Proprietary Interface: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Power Description
Input Voltage: 5.3 V DC
Physical Characteristics
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 320 g
Receiver Weight (Approximate): 310 g
Miscellaneous
Package Contents:
- Proxime CE700A KVM Console/Extender
- 2 x Power Adapters
- 1 x USB KVM Cable
- 2 x Grounding Wires
- 1 x Rack Mount Kit
- 1 x User Manual
- 1 x Quick Start Guide
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 2 Year
