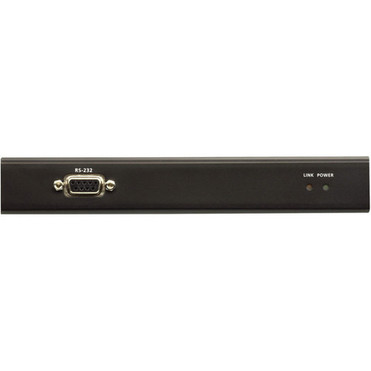

ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m) - 492.13 ft (150000 mm) Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x - 4 (CE820)
- Marketing Information:
- 1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
- 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
- 1 x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
- 2 x Power Adapters
- 2 x Mounting Kits
- 8 x Foot Pads
- 1 x User Instructions
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Connectivity Technology: WiredMaximum Operating Distance: 492.13 ft (150000 mm)Graphic Mode: 4KMaximum Video Resolution: 4096 x 2160Network (RJ-45): YesUSB: YesHeadphone: YesMicrophone: YesHDMI: YesNumber of HDMI Ports: 2Number of Network (RJ-45) Ports: 4Number of USB Ports: 4Input Voltage: 5 V DCForm Factor: Rack-mountableTransmitter Height: 1.13" (28.70 mm)Transmitter Width: 4.80" (121.92 mm)Transmitter Depth: 7.17" (182.12 mm)Receiver Height: 1.13" (28.70 mm)Receiver Width: 4.80" (121.92 mm)Receiver Depth: 7.17" (182.12 mm)Transmitter Weight (Approximate): 650 gReceiver Weight (Approximate): 630 gPackage Contents:[custom-specifications]
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CE820
Manufacturer Website Address: http://www.aten.com/us/en/
Brand Name: ATEN
Product Model: CE820
Product Name: USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 492.13 ft (150000 mm)
Video
Graphic Mode: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Headphone: Yes
Microphone: Yes
HDMI: Yes
Number of HDMI Ports: 2
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 4
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Form Factor: Rack-mountable
Transmitter Height: 1.13" (28.70 mm)
Transmitter Width: 4.80" (121.92 mm)
Transmitter Depth: 7.17" (182.12 mm)
Receiver Height: 1.13" (28.70 mm)
Receiver Width: 4.80" (121.92 mm)
Receiver Depth: 7.17" (182.12 mm)
Transmitter Weight (Approximate): 650 g
Receiver Weight (Approximate): 630 g
Miscellaneous
Package Contents:
- 1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
- 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
- 1 x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
- 2 x Power Adapters
- 2 x Mounting Kits
- 8 x Foot Pads
- 1 x User Instructions
Environmentally Friendly: Yes
Country of Origin: Taiwan
Warranty
Limited Warranty: 3 Year
[/custom-specifications]
