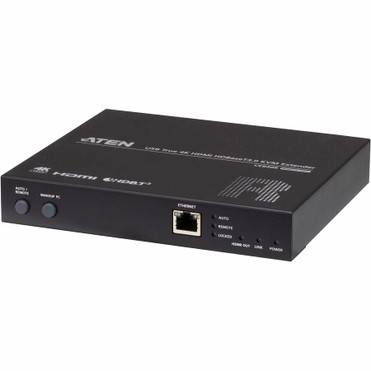

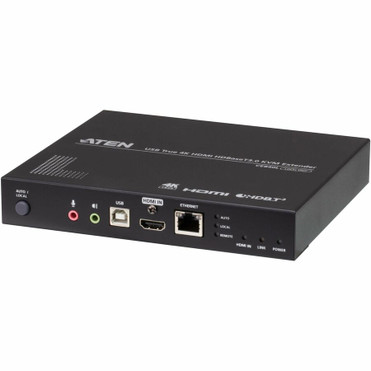

ATEN USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m) - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 328.08 ft (100000 mm) (CE840)
Write a Review
Aten
ATEN USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m) - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 328.08 ft (100000 mm) (CE840)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 1 x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit)
- 1 x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit)
- 1 x HDMI Cable
- 1 x Microphone Cable
- 1 x Speaker Cable
- 1 x USB Type-A to USB Type-B Cable
- 2 x Mounting Kits
- 8 x Foot Pads
- 2 x Power Adapters and Power Cords
- 1 x User Instructions
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)
Device Type: KVM Extender
Graphic Mode: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
USB: Yes
HDMI: Yes
Number of HDMI Ports: 3
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 9
Input Voltage: 12 V DC
Form Factor: Rack-mountable
Transmitter Height: 1.13" (28.70 mm)
Transmitter Width: 6.14" (155.96 mm)
Receiver Height: 1.13" (28.70 mm)
Receiver Width: 6.14" (155.96 mm)
Transmitter Weight (Approximate): 810 g
Receiver Weight (Approximate): 820 g
Package Contents:
- HDBaseT 3.0 - supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above with no compression and zero latency
- Superior video quality - supports HDR10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
- Dual console operation - control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
- Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
- Flexible 4 x USB 2.0 extension - each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
- Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- HDCP2.3 and 2.2 compliant
- Supports widescreen formats
- Built-in 8KV/15KV ESD protection
- Firmware upgradable
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE840 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | CE840 |
| Product Name | USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m) |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 3 |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 9 |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.13" (28.70 mm) |
| Transmitter Width | 6.14" (155.96 mm) |
| Receiver Height | 1.13" (28.70 mm) |
| Receiver Width | 6.14" (155.96 mm) |
| Transmitter Weight (Approximate) | 810 g |
| Receiver Weight (Approximate) | 820 g |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-options]
| Product | ATEN LockPro - HDMI Cable Lock - Cable Lock - 3.4" (86.10 mm) Length - 10 Pack |
| SKU | 2XEA12 |
| Sale Price | $46.01 |
| Product | ATEN VE-RMK1U Rack Mount for Video Extender, KVM Extender |
| SKU | VE-RMK1U |
| Sale Price | $103.76 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
