Atlona Avance 4K/UHD HDMI Extender Kit with Control and Bidirectional Remote Power - 2 Input Device - 2 Output Device - 230 ft (70104 (AT-AVA-EX70C-BP-KIT)

Marketing Information:

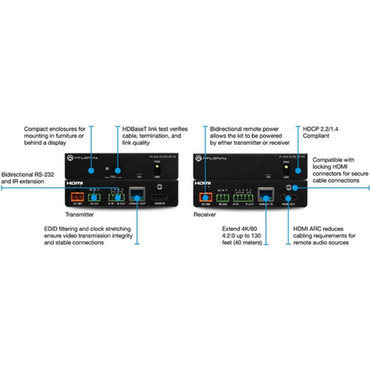

Avance™ 4K/UHD HDMI Extender Kit with Control and Bidirectional Remote Power

Extend AV signals further than HDMI cables

Extends 4K/UHD 60 Hz 4:2:0 up to 40 meters (130 feet) with Category 6/6A

Faster and more reliable installs

EDID filtering, clock stretching, and HDBaseT link test ensure video transmission integrity and stable connections, as well as verification of cable termination, and link quality

Flexible powering

Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT

Connectivity Technology: Wired

Number of Input Devices Supported: 2

Number of Output Devices Supported: 2

Maximum Operating Distance: 230 ft (70104 mm)

Graphics Modes: 4K UHD

Maximum Video Resolution: 4096 x 2160

Network (RJ-45): Yes

HDMI In: Yes

HDMI Out: Yes

USB: Yes

Number of Network (RJ-45) Ports: 2

Number of USB Ports: 2

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 7

Transmitter Height: 1.02" (26 mm)

Transmitter Width: 4.29" (109 mm)

Transmitter Depth: 3.70" (94 mm)

Receiver Height: 1.02" (26 mm)

Receiver Width: 4.29" (109 mm)

Receiver Depth: 3.70" (94 mm)

Transmitter Weight (Approximate): 270 g

Receiver Weight (Approximate): 290 g

Package Contents:

• 1 x Transmitter
• 1 x Receiver

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
