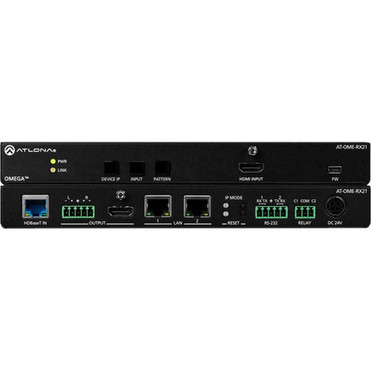

Atlona Scaler for HDBaseT and HDMI - 1 Output Device - 330 ft (100584 mm) Range - 3 x Network (RJ-45)USB - 1 x HDMI In - 1 x HDMI Out (AT-OME-RX21)

Marketing Information:

An HDBaseT Receiver for 4K and Collaboration.

4K upscaling and downscaling.

Seamlessly incorporate 4K and HD into any system.

Compact form factor.

Small and easily mountable onto surfaces.

Display control and automation.

Effortless system operation with no user intervention.

Additional Features

The Atlona AT-OME-RX21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX21 receives HDBaseT for video, control, and Ethernet.

Local HDMI input included

This HDBaseT receiver includes an additional HDMI input - a convenience whenever there's a PC or wireless collaboration gateway to be installed near the display.

Two-port network switch

This is a simple but integration-friendly feature that lets you interface IP control between an AV LAN (or control processor), the display, and an upstream AV switcher over HDBaseT.

Audio de-embedding

The OME-RX21 features analog balanced stereo output, for de-embedding two-channel audio from any source and delivering to a sound system. A five-band EQ is included to fine-tune the audio.

Internal test patterns

Three internally generated test patterns are available to facilitate display setup, validate system performance, and provide a quick signal source for troubleshooting cabling or display issues.

Connectivity Technology: Wired

Number of Output Devices Supported: 1

Maximum Operating Distance: 330 ft (100584 mm)

Graphics Modes: 4K

Maximum Video Resolution: 4096 x 2160

Network (RJ-45): Yes

HDMI In: Yes

HDMI Out: Yes

USB: Yes

Number of Network (RJ-45) Ports: 3

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 7

Receiver Height: 1.02" (25.91 mm)

Receiver Width: 8.62" (218.95 mm)

Receiver Depth: 5.98" (151.89 mm)

Receiver Weight (Approximate): 890 g
