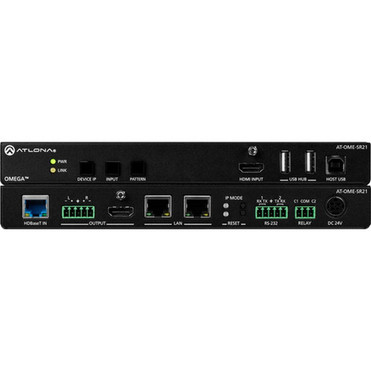

Atlona Scaler for HDBaseT and HDMI with USB - 1 Output Device - 328.08 ft (100000 mm) Range - 3 x Network (RJ-45) - 3 x USB - 1 x HDMI (AT-OME-SR21)
- Marketing Information:
An HDBaseT Receiver for 4K and Collaboration.
4K upscaling and downscaling.
Seamlessly incorporate 4K and HD into any system.
Built-in USB hub and extender.
Simple USB integration for software video conferencing.
Display control and automation.
Effortless system operation with no user intervention.
The Atlona AT-OME-SR21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SR21 receives HDBaseT for video, control, Ethernet, and USB.
Additional Features
Local HDMI input included
This HDBaseT receiver includes an additional HDMI input - a convenience whenever there's a PC or wireless collaboration gateway to be installed near the display.
Two-port network switch
This is a simple but integration-friendly feature that lets you interface IP control between an AV LAN (or control processor), the display, and an upstream AV switcher over HDBaseT.
Audio de-embedding
The OME-SR21 features analog balanced stereo output, for de-embedding two-channel audio from any source and delivering to a sound system. A five-band EQ is included to fine-tune the audio.
Internal test patterns
Three internally generated test patterns are available to facilitate display setup, validate system performance, and provide a quick signal source for troubleshooting cabling or display issues.
Connectivity Technology: WiredNumber of Output Devices Supported: 1Maximum Operating Distance: 328.08 ft (100000 mm)Graphics Modes: 4KMaximum Video Resolution: 4096 x 2160Network (RJ-45): YesHDMI In: YesHDMI Out: YesUSB: YesNumber of Network (RJ-45) Ports: 3Number of USB Ports: 3Number of HDMI Inputs: 1Number of HDMI Outputs: 1Media Type Supported: Twisted PairTwisted Pair Cable Standard: Category 7Receiver Height: 1.02" (25.91 mm)Receiver Width: 8.62" (218.95 mm)Receiver Depth: 5.98" (151.89 mm)Receiver Weight (Approximate): 889 g[custom-specifications]
Manufacturer: Atlona Technologies
Manufacturer Part Number: AT-OME-SR21
Manufacturer Website Address: http://www.atlona.com
Brand Name: Atlona
Product Line: Omega
Product Model: OME-SR21
Product Name: Scaler for HDBaseT and HDMI with USB
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)
Video
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 3
Number of USB Ports: 3
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7
Physical Characteristics
Receiver Height: 1.02" (25.91 mm)
Receiver Width: 8.62" (218.95 mm)
Receiver Depth: 5.98" (151.89 mm)
Receiver Weight (Approximate): 889 g
