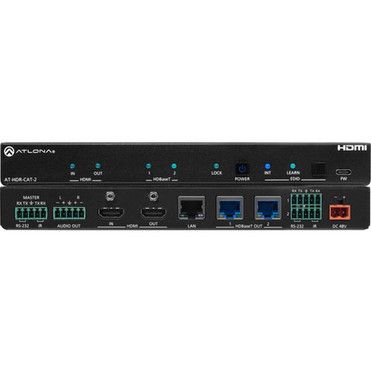

Atlona Two-Output 4K HDR HDMI to HDBaseT Distribution Amplifier - 4096 x 2160 - 131.23 ft (40000 mm) Maximum Operating Distance - 1 x (AT-HDR-CAT-2)

Marketing Information:

Introduction

The Atlona AT-HDR-CAT-2 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and two HDBaseT™ outputs Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters) over Category 6/6A cable. The HDR-CAT-2 features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a low-profile enclosure with external universal power supply. The HDR-CAT-2 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers.

Applications

• Hospitality and retail

Ideal for hotel lobbies, malls, stores, and restaurants that need long distance signal extension of high-impact marketing content and program information.

• Commercial

Display company information on screens in reception areas or production and safety information on screens in the warehouse and manufacturing floor.

• Education

Complements lecture hall and auditorium AV systems by allowing presentation content to be distributed to repeater displays located throughout the space

Key Features

• 4K HDR distribution amplifier with one HDMI input and two HDBaseT outputs.
• Pass-through HDMI output to support local monitor.
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling.
• Supports HDR10, HLG, and Dolby® Vision™ HDR formats.
• Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT.
• HDBaseT outputs extend HDMI, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A.
• Bidirectional RS-232 and IR control extension for each output.
• Remotely powers compatible receivers over HDBaseT.
• CEC display control sends display power on/off commands over HDBaseT using the power button, IP, or RS232.
• Audio de-embedding to balanced analog output with volume control for integration with a separate audio system.
• HDBaseT link test verifies cable, termination, and link quality for more reliable installations.
• Multi-channel audio pass-through.
• Cascade up to 8 units to expand system without compromising performance.
• Compliant with HDCP 2.2, the latest specification for passing protected content between devices.
• Manages EDID communications with the source through a display's EDID or internally stored EDID.
• Intuitive GUI-based configuration using integrated web server.
• Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity™ or third-party control systems.
• Easy to configure and manage with AMS (Atlona Management System).
• Front panel includes LEDs for power, HDBaseT link, and HDMI signal status information as well as buttons for power and EDID control.
• Compatible with AT-UHD-EX receivers for resolutions up to 4K60 4:2:0.
• Low-profile enclosure for easy installation under a table or in furniture.

Maximum Video Resolution: 4096 x 2160

HDMI In: Yes

HDMI Out: Yes

Network (RJ-45): Yes

USB: Yes

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1

Number of Network (RJ-45) Ports: 3

Maximum Operating Distance: 131.23 ft (40000 mm)

Input Voltage: 120 V AC,230 V AC

Environmentally Friendly: Yes
