- Connect different types of media within a network with this single port
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
Marketing Information: Features
The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3at PoE+ PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
Total Number of Ports: 1Network (RJ-45): YesNumber of PoE+ (RJ-45) Ports: 1PoE Port Type: PSEMedia Type Supported: - Twisted Pair
- Optical Fiber
Number of Total Expansion Slots: 1Expansion Slot Type: SFP (mini-GBIC)Ethernet Technology: Gigabit EthernetNetwork Technology: - 10/100/1000Base-TX
- 1000Base-FX
Power Source: ACLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Axiom Memory Solutions
Manufacturer Part Number: MCP32-T2-SFP-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom

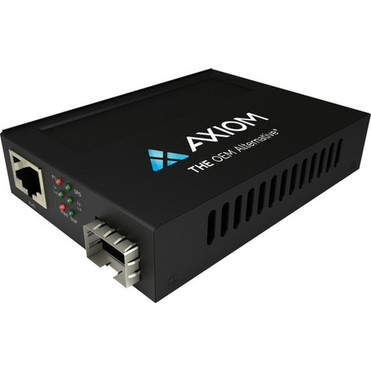

Product Name: 1Gbs POE+ RJ45 to SFP Fiber Media Converter - Open SFP Port
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 1
Network (RJ-45): Yes
Number of PoE+ (RJ-45) Ports: 1
PoE Port Type: PSE
Media & PerformanceMedia Type Supported:
- Twisted Pair
- Optical Fiber
I/O ExpansionsNumber of Total Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Network & CommunicationEthernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-TX
- 1000Base-FX
Power DescriptionPower Source: AC
WarrantyLimited Warranty: 1 Year
[/custom-specifications]
