- Connect different types of media within a network with this single port
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over optical fiber cable
- The unit is standalone and you can place it anywhere on a flat surface
Marketing Information: Features
The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Full-Duplex or Half-Duplex Operation Modes
- Auto-MDI/MDIX
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
- Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
- Available with Open SFP Port or optional built in LC/SC/ST Connections
- DIP switch to set different configurations
- Compact package size
- Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function
Total Number of Ports: 1Network (RJ-45): YesNumber of Network (RJ-45) Ports: 1Media Type Supported: - Optical Fiber
- Twisted Pair
Maximum Distance Supported: 328.1 ftNumber of Total Expansion Slots: 1Expansion Slot Type: SFP (mini-GBIC)Ethernet Technology: Gigabit EthernetNetwork Technology: - 10/100/1000Base-TX
- 100/1000Base-FX
Power Source: DCForm Factor: StandaloneLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Axiom Memory Solutions
Manufacturer Part Number: MC03-SFP-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom

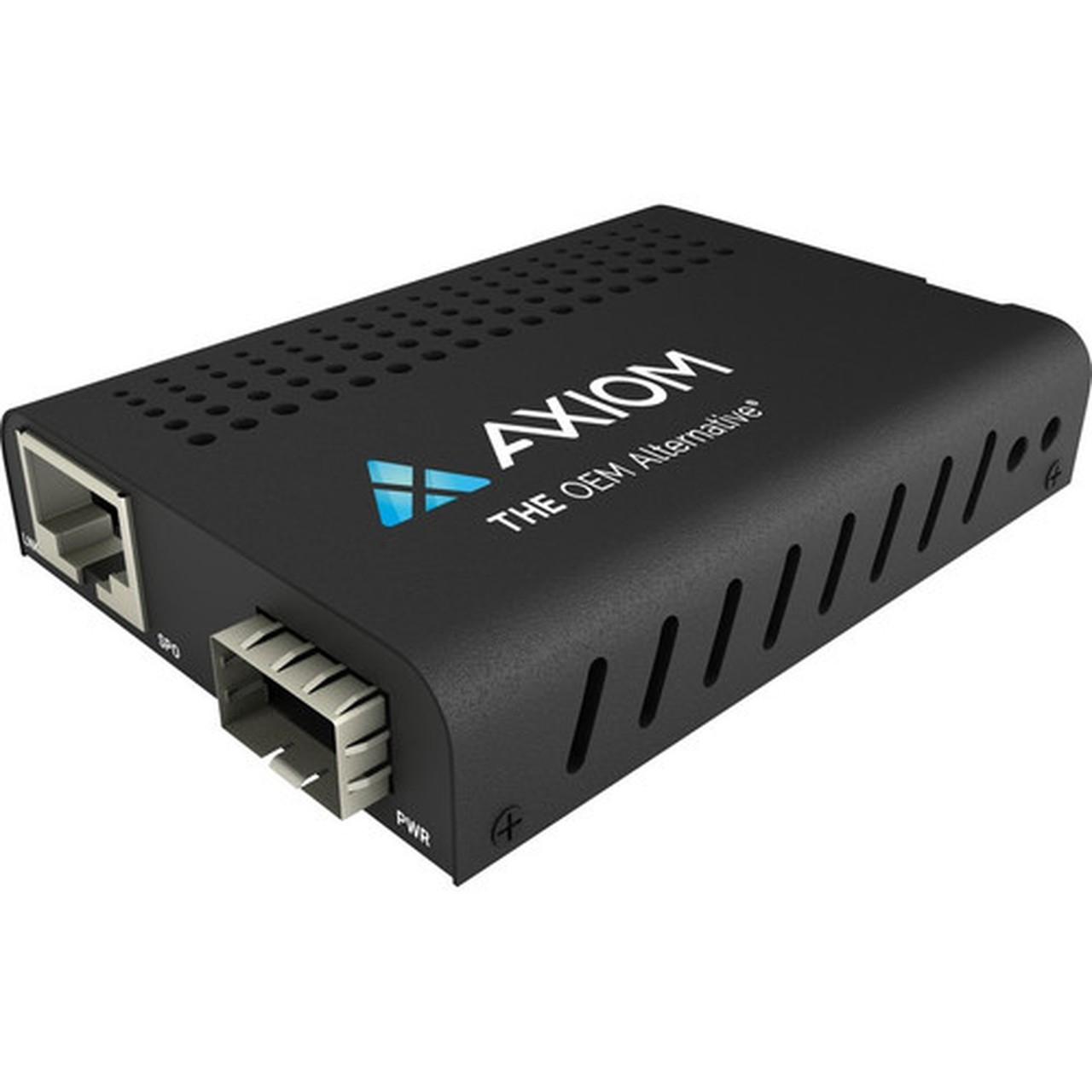

Product Name: Mini 1Gbs RJ45 to SFP Fiber Media Converter - Open SFP Port
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media & PerformanceMedia Type Supported:
- Optical Fiber
- Twisted Pair
Maximum Distance Supported: 328.1 ft
I/O ExpansionsNumber of Total Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Network & CommunicationEthernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-TX
- 100/1000Base-FX
Power DescriptionPower Source: DC
Physical CharacteristicsForm Factor: Standalone
WarrantyLimited Warranty: 1 Year
