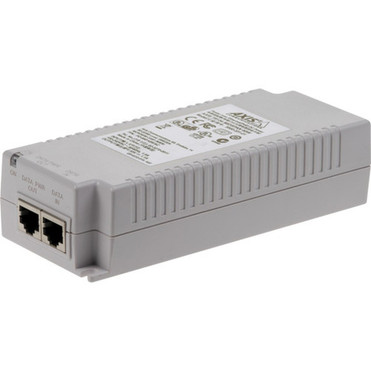

AXIS T8134 60 W Midspan - 120 V AC, 230 V AC Input - 1 10/100/1000Base-T Output Port(s) - 60 W - Wall/Shelf/DIN Rail-mountable (5900-334)

(No reviews) Write a Review
$212.01
SKU: 5900-334
UPC: 7331021047402
Availability: In Canada
Weight: 1.28 LBS
Adding to cart… The item has been added
    Marketing Information: Single port High PoE midspan, 60 W. Compliant with IEEE 802.3at and 802.3af. The midspan can be installed on a wall, shelf or DIN rail with an accessory DIN clip.
    Input Voltage:
    • 120 V AC
    • 230 V AC

    Minimum Output Voltage: 55 V DC
    Maximum Output Power: 60 W
    Output Ports: 1 10/100/1000Base-T
    Mount Type: Wall/Shelf/DIN Rail-mountable
    Height: 1.50" (38.10 mm)
    Width: 2.40" (60.96 mm)
    Depth: 5.90" (149.86 mm)
    Compatibility: AXIS Q60-E PTZ Dome Network Camera
    Certifications & Standards:
    • FCC Part 15
    • Class B with FTP Cabling
    • EN 55022 Class B
    • EN 55024
    • VCCI
    • KCC
    • C-tick
    • CB
    • UL / cUL per EN 60950-1
    • GS Mark per EN 60950-1
    • CE
    • IEEE 802.3af
    • IEEE 802.3at

    Environmentally Friendly: Yes
    Environmental Certification:
    • RoHS
    • WEEE
    • REACH
    • GS

[custom-specifications]

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 5900-334
Manufacturer Website Address: http://www.axis.com
Brand Name: AXIS
Product Model: T8134
Product Name: T8134 60 W Midspan
Product Type: PoE Injector
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC

Minimum Output Voltage: 55 V DC
Maximum Output Power: 60 W
Interfaces/Ports
Output Ports: 1 10/100/1000Base-T
Physical Characteristics
Mount Type: Wall/Shelf/DIN Rail-mountable
Height: 1.50" (38.10 mm)
Width: 2.40" (60.96 mm)
Depth: 5.90" (149.86 mm)
Miscellaneous
Compatibility: AXIS Q60-E PTZ Dome Network Camera
Certifications & Standards:
  • FCC Part 15
  • Class B with FTP Cabling
  • EN 55022 Class B
  • EN 55024
  • VCCI
  • KCC
  • C-tick
  • CB
  • UL / cUL per EN 60950-1
  • GS Mark per EN 60950-1
  • CE
  • IEEE 802.3af
  • IEEE 802.3at

Environmentally Friendly: Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH
  • GS

[/custom-specifications]
