Belkin Thunderbolt 3 Dock Plus - Laptop Docking station - Dual 4k - 40Gbps - 60W PD-MacOS andWindows - for Notebook - 125 W - USB Type (F4U109tt)

Marketing Information:

THE INSTANT WORKSTATION

Fast, ultra-high definition, powerful, and now even more versatile, meet the new wave of Thunderbolt 3 Docks. The Thunderbolt 3 Dock Plus offers universal compatibility, bringing all the benefits and convenience of Thunderbolt 3 technology to both Mac and Windows laptops. With 40Gbps transfer rates,^* 60W power to charge your connected laptop, dual 4K 60Hz monitor support and multiple ports for peripherals, simply connect the dock to your Mac or Windows laptop - with the included Thunderbolt 3 cable - to create a high-performing, instant workstation

THE BELKIN DIFFERENCE

• Pioneer in innovation and technology for over 35 years
• Designed with professional and at-home users in mind
• Building on the success of our CES 2018 Best of Innovation Awards Honoree, the Thunderbolt 3 Express Dock HD
• Insertion testing guarantees quality for lasting performance and durability
• Tested under fluctuating environmental conditions to ensure safety of materials

MORE PORTS FOR MORE DEVICES

Connect all your peripheral devices - monitors, mice, keyboards, speakers, hard drives and more - to your laptop via a single cable.

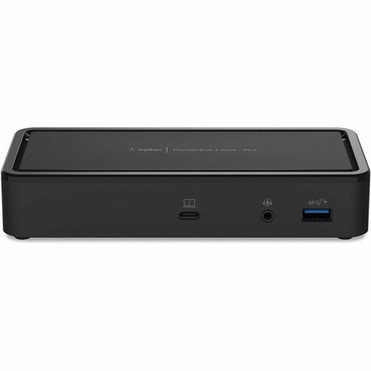

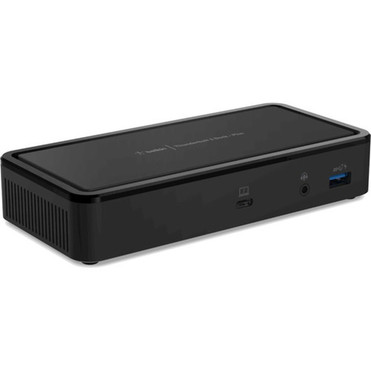

FRONT:

• Thunderbolt 3 Type-C port with PD 3.0 delivers charging (up to 60W) to laptop with the included Thunderbolt 3 Gen 2 cable
• Audio in/out for mic and speaker support
• 1 x USB-A 3.1 Gen 2 port for USB-A peripherals

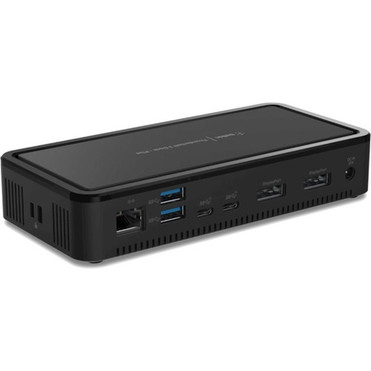

BACK:

• Gigabit Ethernet connection
• 2 x USB-A 3.1 Gen 1 ports for devices that connect via USB-A such as a mouse, keyboard or printer
• 2 x USB-C 3.1 Gen 2 ports for USB-C peripherals
• 2 x DisplayPort™ 1.4 connect to high-resolution monitors/displays (for resolutions, see table below)
• 125W PSU (Power Supply Unit) powers the dock, and also charges the connected laptop up to 60W, to keep your laptop charged as you work

THUNDERBOLT 3 AND USB-C COMPATIBLE

Thanks to the inclusion of a smart chipset/controller from Intel, this dock supports both Thunderbolt 3 and USB-C, and is also fully compatible with both MacBooks running Mac OS, and laptops running Windows. Such broad compatibility makes it the ideal choice for temporary workstations or shared work environments, which are visited by different users, who may have different laptop types but still need an easily accessible and high-performing workstation. The Thunderbolt 3 Dock Plus is also a convenient, economical, single dock solution for businesses supporting both Mac and Windows laptops within their organization.

DUAL HIGH-DEFINITION MONITOR SUPPORT

With so many ports available, the Thunderbolt 3 Dock Plus easily connects two high-definition displays, without compromising access to your other peripherals. Please see the table below for specific resolution capabilities for all monitor combinations.

POWER TO SHARE

With its power supply unit drawing 125W from the mains, the Thunderbolt 3 Dock Plus is able to provide up to 60W of power for a connected laptop. Also known as "upstream charging," this keeps your laptop charged while in use, without the need for a separate power cable.

Connectivity Technology: Wired

Charging Capability: Yes

Device Supported: Notebook

Ethernet Technology: Gigabit Ethernet

Host Interface: Thunderbolt 3

Audio Line Out: Yes

Total Number of USB Ports: 6

Number of USB 3.1 Gen 1 Type-A Ports: 2

USB Type-C: Yes

USB Type-C Detail: Thunderbolt 3 Type-C port with PD 3.0 delivers charging (up to 60W)

USB Type-A: Yes

Network (RJ-45): Yes

Number of DisplayPort Outputs: 2

DisplayPort: Yes

Headphone/Microphone Combo Port: Yes

Thunderbolt: Yes

USB Power Delivery: Type-C Up to 60W

Operating System Supported: Windows 10,Mac OS X 10.12 Sierra

Maximum Power Supply Wattage: 125 W

Height: 1.22" (30.99 mm)

Width: 6.52" (165.61 mm)

Depth: 3.06" (77.72 mm)

Weight (Approximate): 267 g

Package Contents:

• Thunderbolt 3 Dock Plus
• 0.5m / 1.6ft. Thunderbolt 3 Cable

Compatibility:

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: 1 Year
