Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)
Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)
Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)
Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)
Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)
Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)
Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)
Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (Fleet Network)

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

Free Shipping*

Shipping Restrictions

Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

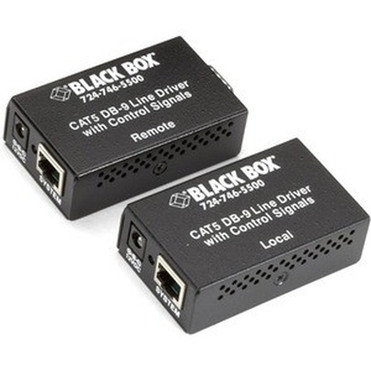

Black Box Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V - 1 x Network (RJ-45) - 4000 ft (1219200 mm) Extended Range (ME890AE-R2)

(No reviews) Write a Review
$382.11
$382.11
$319.10
(You save $63.01 )
SKU: ME890AE-R2
UPC: 822088111733
Weight: 1.18 LBS

Pre-order! 🗨️📞

    Marketing Information:
    • Maximum speed of 250 K.
    • Run data and handshake signals over CATx cable and break the RS-232 distance limitation.
    • Plug-and-play. The driver is a pure hardware solution providing real-time data transfer with no software conflicts.
    • Use long-distance CATx links to communicate with serial devices.
    • Control presentations remotely.
    • Transfer data between computers.
    • Ideal for a wide variety of applications.
    • Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There's no need for setup or configuration.
    This CATx Line Driver enables you to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary.
    Maximum Extended Range: 4000 ft (1219200 mm)
    Maximum Data Transfer Rate: 250 kB/s
    Network (RJ-45): Yes
    Number of Network (RJ-45) Ports: 1
    Input Voltage: 230 V AC
    Height: 0.80" (20.32 mm)
    Width: 1.70" (43.18 mm)
    Depth: 3.20" (81.28 mm)
    Package Contents:
    • 1 x Local Unit
    • 1 x Remote Unit
    • 1 x 100/220 V, 5VDC 1.2 A power suppy

    Environmentally Friendly: Yes
    Country of Origin: United States
    TAA Compliant: Yes
    Limited Warranty: 1 Year

[custom-specifications]

Specifications
Manufacturer: Black Box Corporation
Manufacturer Part Number: ME890AE-R2
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Name: Async RS232 Extender over CATx DB9 w/ Control Signals to TB 230V
Product Type: Serial Extender
Technical Information
Maximum Extended Range: 4000 ft (1219200 mm)
Maximum Data Transfer Rate: 250 kB/s
Interfaces/Ports
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Power Description
Input Voltage: 230 V AC
Physical Characteristics
Height: 0.80" (20.32 mm)
Width: 1.70" (43.18 mm)
Depth: 3.20" (81.28 mm)
Miscellaneous
Package Contents:
  • 1 x Local Unit
  • 1 x Remote Unit
  • 1 x 100/220 V, 5VDC 1.2 A power suppy

Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year

[/custom-specifications]

1 Year
