Marketing Information: - Use long-distance CATx links to communicate with serial devices.
- Control presentations remotely.
- Transfer data between computers.
- Ideal for a wide variety of applications.
- Optical isolated.
- Maximum speed of 250 K.
- Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There's no need for setup or configuration.

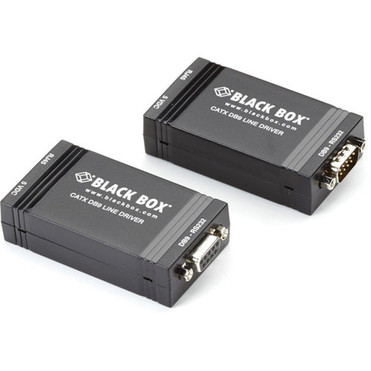

These CATx Line Drivers enable the user to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary.Maximum Extended Range: 4000 ft (1219200 mm)Maximum Data Transfer Rate: 31.25 kB/sNetwork (RJ-45): YesHeight: 0.80" (20.32 mm)Width: 1.70" (43.18 mm)Depth: 3.20" (81.28 mm)Package Contents: - 1 x Local Unit
- 1 x Remote Unit
- 2 x 120 V Power Supplies
Additional Information: - Cable Requirement CATx

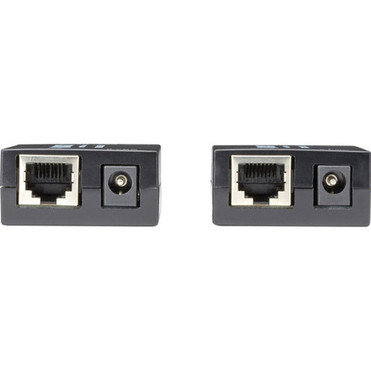

- Connectors Local unit: (1) DB9 F (DCE), (1) RJ-45, (1) power jack;
- Remote unit: (1) DB9 M (DTE), (1) RJ-45, (1) power jack
- Distance 4000 ft. (1219.2 m) maximum
- Interface RS-232
- Operation Asynchronous, full-duplex
- Power Input: 100-240 VAC;
- Output: 12-VDC power adapter
- Speed 250 kbps maximum
Certifications & Standards: Environmentally Friendly: YesCountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: ME890A-R2
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Name: Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block
Product Type: Serial Extender
Technical InformationMaximum Extended Range: 4000 ft (1219200 mm)
Maximum Data Transfer Rate: 31.25 kB/s
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsHeight: 0.80" (20.32 mm)
Width: 1.70" (43.18 mm)
Depth: 3.20" (81.28 mm)
MiscellaneousPackage Contents:
- 1 x Local Unit
- 1 x Remote Unit
- 2 x 120 V Power Supplies
Additional Information:
- Cable Requirement CATx
- Connectors Local unit: (1) DB9 F (DCE), (1) RJ-45, (1) power jack;
- Remote unit: (1) DB9 M (DTE), (1) RJ-45, (1) power jack
- Distance 4000 ft. (1219.2 m) maximum
- Interface RS-232
- Operation Asynchronous, full-duplex
- Power Input: 100-240 VAC;
- Output: 12-VDC power adapter
- Speed 250 kbps maximum
Certifications & Standards:
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
WarrantyLimited Warranty: 1 Year
[/custom-specifications]
