- Functions as a pass-through adapter - no power is required
- Enables you to connect a computer or other HDMI video source to a DisplayPort screen
- Supports resolutions up to 4K (3840 x 2160p) at 30 Hz
- Includes TMDS signaling
- Provides EDID pass-through
Marketing Information: Convert an HDMI Input into a DisplayPort Signal
Increase productivity with this lightweight, compact, and portable dongle. This active dongle has a DisplayPort male connector and an HDMI female connector. Use it to connect a computer, desktop, laptop, or another device with an HDMI port to a monitor, projector, HDTV, or another device that has a DisplayPort connection. The dongle supports HDMI speeds up to 2.97 Gbps and 48-bit color depth. It also supports 7.1 digital audio up to 192 kHz.
Just Plug-and-Play!
The dongle is simple to install and use. No driver is required and it does not need a power source.
Cable Type: DisplayPort/HDMIConnector Type on First End: DisplayPort 1.2 Digital Audio/Video - MaleConnector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - MaleConnector Type on Second End: HDMI 1.4 Digital Audio/Video - FemaleConnector on Second End Details: 1 x 19-pin HDMI 1.4 Digital Audio/Video - FemaleDevice Supported: - Audio/Video Device
- Computer
- Monitor
- Desktop Computer
- Notebook
- Projector
- HDTV
Data Transfer Rate: 3 Gbit/sSupported Resolution: 3840 x 2160Features: Plug & PlayProduct Color: Compatibility: BlackBox Quad MultiViewer (AVSC-0501QMV)Environmentally Friendly: YesCountry of Origin: TaiwanTAA Compliant: YesLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: VA-HDMI-DP
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box

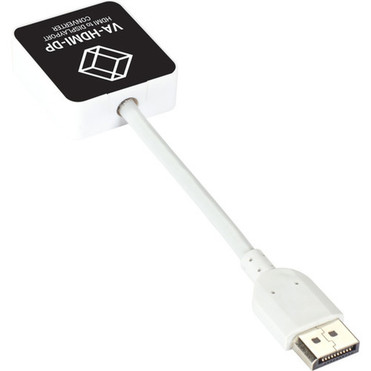

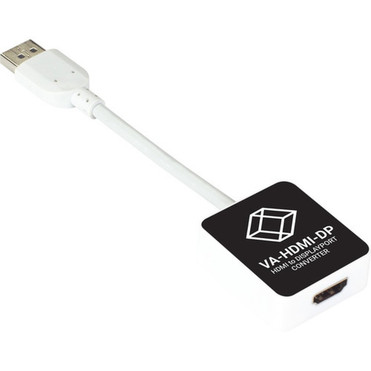

Product Name: HDMI to DisplayPort Converter Adapter - 4K30, Audio, F/M Dongle
Product Type: A/V Cable
Technical InformationCable Type: DisplayPort/HDMI
Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: HDMI 1.4 Digital Audio/Video - Female
Connector on Second End Details: 1 x 19-pin HDMI 1.4 Digital Audio/Video - Female
Device Supported:
- Audio/Video Device
- Computer
- Monitor
- Desktop Computer
- Notebook
- Projector
- HDTV
Data Transfer Rate: 3 Gbit/s
Supported Resolution: 3840 x 2160
Features: Plug & Play
Physical CharacteristicsProduct Color:
MiscellaneousCompatibility: BlackBox Quad MultiViewer (AVSC-0501QMV)
Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
WarrantyLimited Warranty: 3 Year
[/custom-specifications]
