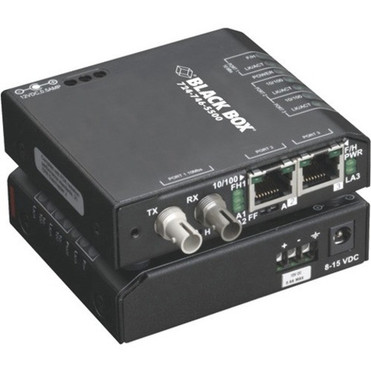

Black Box LBH110 Transceiver/Media Converter - 2 x Network (RJ-45) - 1 x ST Ports - Single-mode - 0.05 mil (0 mm) Fiber - Fast - - 10 (LBH110A-H-SST)
Write a Review
Black Box
Black Box LBH110 Transceiver/Media Converter - 2 x Network (RJ-45) - 1 x ST Ports - Single-mode - 0.05 mil (0 mm) Fiber - Fast - - 10 (LBH110A-H-SST)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- LBH110 Transceiver/Media Converter
- Brackets and Screws
Total Number of Ports: 3
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of ST Ports: 1
Media Type Supported: Optical Fiber,Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1300 nm
Maximum Distance Supported: 10 km (6.21 Mile)
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Power Source: AC/DC
Form Factor: DIN Rail Mountable,Wall Mountable,Rack-mountable,Panel-mountable,Desktop
Height: 3.50" (88.90 mm)
Width: 3" (76.20 mm)
Depth: 1" (25.40 mm)
Weight (Approximate): 4.80 oz (136.08 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: United States
TAA Compliant: Yes
Limited Warranty: 3 Year
- Function as both a media converter and a switch.
- Extended temperature range of -13° to +140° F (-25° to +60° C).
- Provide one 10-Mbps ST® fiber port and two 10-/100-Mbps UTP switch ports.
- RJ-45 ports support autonegotiation, so you can easily attach any 10- or 100-Mbps device.
- Available with 100-240-VAC and 12-, 24-, and 48-VDC power supplies.
- Support both half- and full-duplex operation.
- Two sets of LEDs enable you to see status information from the front, top, or side.
- Rackmount up to 16 units in the optional Rackmount Tray or Powered Rackmount Tray (sold separately).
- For outdoor environments, see our Extreme Media Converter Switches (LBH100A-P and LBH110A-P families). Standard office-grade versions (LBH100A, LBH110A families) are also available.
- For faster fiber infrastructures, see Hardened Media Converter Switches for 100-Mbps fiber (LBH100A-H family).
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBH110A-H-SST |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Series | LBH110 |
| Product Name | LBH110 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable,Rack-mountable,Panel-mountable,Desktop |
| Height | 3.50" (88.90 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Black Box Din Rail Mount for Switch |
| SKU | DIN-RAIL MC2 |
| Sale Price | $48.14 |
| Product | Black Box Spare Power Supply - Hardened Temperature, 100240VAC, 4763 Hz, IEC Connector - 110 V AC, 220 V AC Input |
| SKU | LBH100AE-H-PS |
| Sale Price | $124.14 |
| Product | Black Box Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series - For Media Converter, LAN Switch - 1U Rack Height - Rack-mountable |
| SKU | LH1505P-RACK |
| Sale Price | $344.04 |
| Product | Black Box Spare Power Supply - Hardened Temperature, 100-240VAC - 110 V AC, 220 V AC Input |
| SKU | LBH100A-H-PS |
| Sale Price | $97.58 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Information
3 Year
