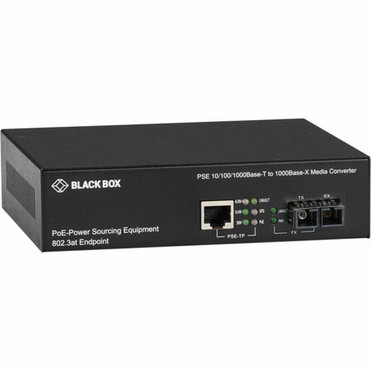

Black Box LPS500 Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Multi-mode - nm (LPS500A-MM-SC-R3)
Write a Review
Black Box
Black Box LPS500 Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Multi-mode - nm (LPS500A-MM-SC-R3)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Total Number of Ports: 2
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
PoE Port Type: PSE
Number of SC Ports: 1
SC Port Type: Duplex
Media Type Supported: Twisted Pair,Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 850 nm
Maximum Distance Supported: 0.30 km (0.19 Mile)
Fiber Optic Cable Core/Cladding Specification: 62.5 µm,50 µm
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-SX,10/100/1000Base-T

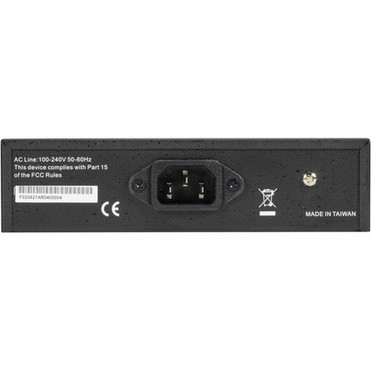

Power Source: Power Supply
Power Consumption: 65 W
Form Factor: Wall Mountable
Height: 1.60" (40.64 mm)
Width: 6.20" (157.48 mm)
Depth: 5.20" (132.08 mm)
Weight (Approximate): 1.30 lb (589.67 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant: Yes
Limited Warranty: 2 Year
Additional Warranty Information:
Double Diamond Warranty (Standard)
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable
- Tuck the device out of the way with its Wall Mounting feature
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LPS500AMMSCR3 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Series | LPS500 |
| Product Name | LPS500 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.30 km (0.19 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5 µm,50 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX,10/100/1000Base-T |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 65 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.60" (40.64 mm) |
| Width | 6.20" (157.48 mm) |
| Depth | 5.20" (132.08 mm) |
| Weight (Approximate) | 1.30 lb (589.67 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | Double Diamond Warranty (Standard) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year
