- Connect different types of media within a network with this single port
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Tuck the device out of the way with its Wall Mounting feature

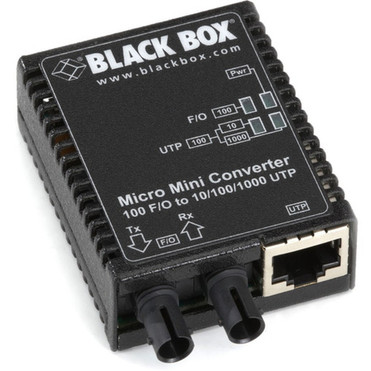

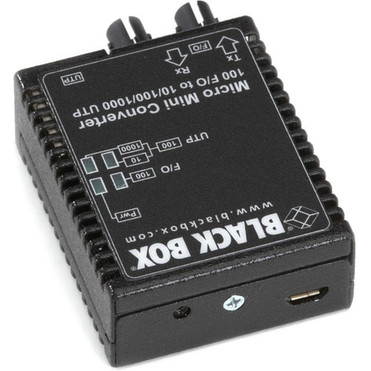

Marketing Information: The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.
Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.
The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an ST connector for connection to multimode fiber.
Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.
Total Number of Ports: 1Network (RJ-45): YesUSB: YesManagement Port: NoNumber of Network (RJ-45) Ports: 1Number of ST Ports: 1ST Port Type: DuplexMedia Type Supported: - Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-modeFiber Optic Wavelength: 1310 nmMaximum Distance Supported: 3.1 MileEthernet Technology: - Fast Ethernet
- Gigabit Ethernet
Network Technology: - 10/100/1000Base-T
- 100Base-X
Power Source: Power SupplyForm Factor: Wall MountableHeight: 0.84" (21.34 mm)Width: 1.75" (44.45 mm)Depth: 2.25" (57.15 mm)Weight (Approximate): 70.9 gPackage Contents: - Micro Mini LMC401A Transcevier Media Converter
- Power Adapter
Environmentally Friendly: YesCountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: LMC401A
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Line: Micro Mini
Product Model: LMC401A
Product Name: Micro Mini LMC401A Transcevier Media Converter
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 1
Network (RJ-45): Yes
USB: Yes
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of ST Ports: 1
ST Port Type: Duplex
Media & PerformanceMedia Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 3.1 Mile
Network & CommunicationEthernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 100Base-X
Power DescriptionPower Source: Power Supply
Physical CharacteristicsForm Factor: Wall Mountable
Height: 0.84" (21.34 mm)
Width: 1.75" (44.45 mm)
Depth: 2.25" (57.15 mm)
Weight (Approximate): 70.9 g
MiscellaneousPackage Contents:
- Micro Mini LMC401A Transcevier Media Converter
- Power Adapter
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
WarrantyLimited Warranty: 2 Year
