- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
- Tuck the device out of the way with its Wall Mounting feature

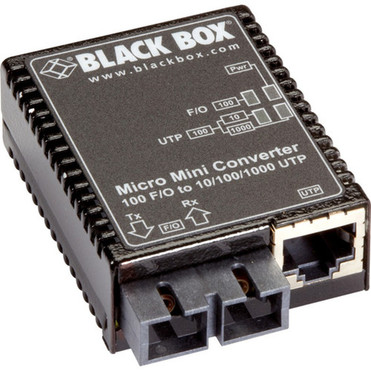

Marketing Information: The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.
Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.

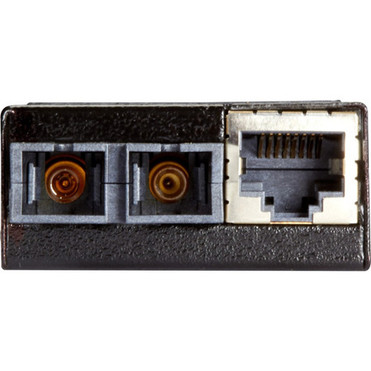

The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an SC connector for connection to multimode fiber.
Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.
Total Number of Ports: 2Network (RJ-45): YesDVI: NoUSB: NoManagement Port: NoNumber of Network (RJ-45) Ports: 1Number of SC Ports: 1SC Port Type: DuplexMedia Type Supported: - Optical Fiber
- Twisted Pair
Fiber Mode Supported: Multi-modeFiber Optic Wavelength: 1310 nmMaximum Distance Supported: 3.1 MileEthernet Technology: - Fast Ethernet
- Gigabit Ethernet
Network Technology: - 10/100/1000Base-TX
- 100Base-FX

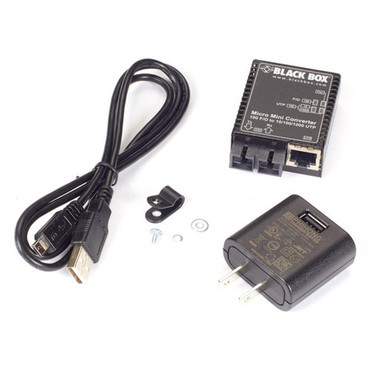

Power Source: AC AdapterForm Factor: Wall MountableHeight: 0.84" (21.34 mm)Width: 1.75" (44.45 mm)Depth: 2.25" (57.15 mm)Weight (Approximate): 70.9 gPackage Contents: - Micro Mini LMC402A Transceiver/Media Converter
- Power Adapter
Environmentally Friendly: YesCountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: LMC402A
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Line: Micro Mini
Product Model: LMC402A
Product Name: Micro Mini LMC402A Transceiver/Media Converter
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & PerformanceMedia Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 3.1 Mile
Network & CommunicationEthernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100/1000Base-TX
- 100Base-FX
Power DescriptionPower Source: AC Adapter
Physical CharacteristicsForm Factor: Wall Mountable
Height: 0.84" (21.34 mm)
Width: 1.75" (44.45 mm)
Depth: 2.25" (57.15 mm)
Weight (Approximate): 70.9 g
MiscellaneousPackage Contents:
- Micro Mini LMC402A Transceiver/Media Converter
- Power Adapter
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
WarrantyLimited Warranty: 2 Year
