- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over supported network cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized

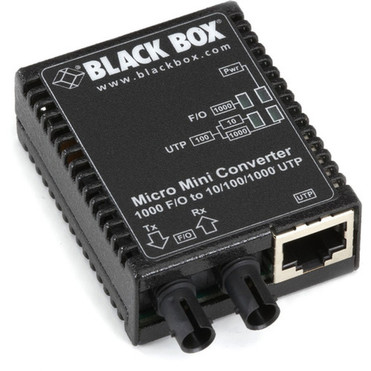

Marketing Information: The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an ST connector for connection to multimode fiber. Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.
Total Number of Ports: 2Network (RJ-45): YesDVI: NoUSB: YesManagement Port: NoNumber of Network (RJ-45) Ports: 1Number of ST Ports: 1ST Port Type: DuplexMedia Type Supported: - Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-modeFiber Optic Wavelength: 850 nmMaximum Distance Supported: 1640.4 ftEthernet Technology: Gigabit EthernetNetwork Technology: - 10/100/1000Base-TX
- 1000Base-X
Power Source: AC AdapterForm Factor: Wall MountableHeight: 0.84" (21.34 mm)Width: 1.75" (44.45 mm)Depth: 2.25" (57.15 mm)Weight (Approximate): 70.9 gPackage Contents: - Transceiver/Media Converter
- Power Adapter
Environmentally Friendly: YesCountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: LMC4001A
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Name: Transceiver/Media Converter
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: Yes
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of ST Ports: 1
ST Port Type: Duplex
Media & PerformanceMedia Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 850 nm
Maximum Distance Supported: 1640.4 ft
Network & CommunicationEthernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-TX
- 1000Base-X
Power DescriptionPower Source: AC Adapter
Physical CharacteristicsForm Factor: Wall Mountable
Height: 0.84" (21.34 mm)
Width: 1.75" (44.45 mm)
Depth: 2.25" (57.15 mm)
Weight (Approximate): 70.9 g
MiscellaneousPackage Contents:
- Transceiver/Media Converter
- Power Adapter
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
WarrantyLimited Warranty: 2 Year
