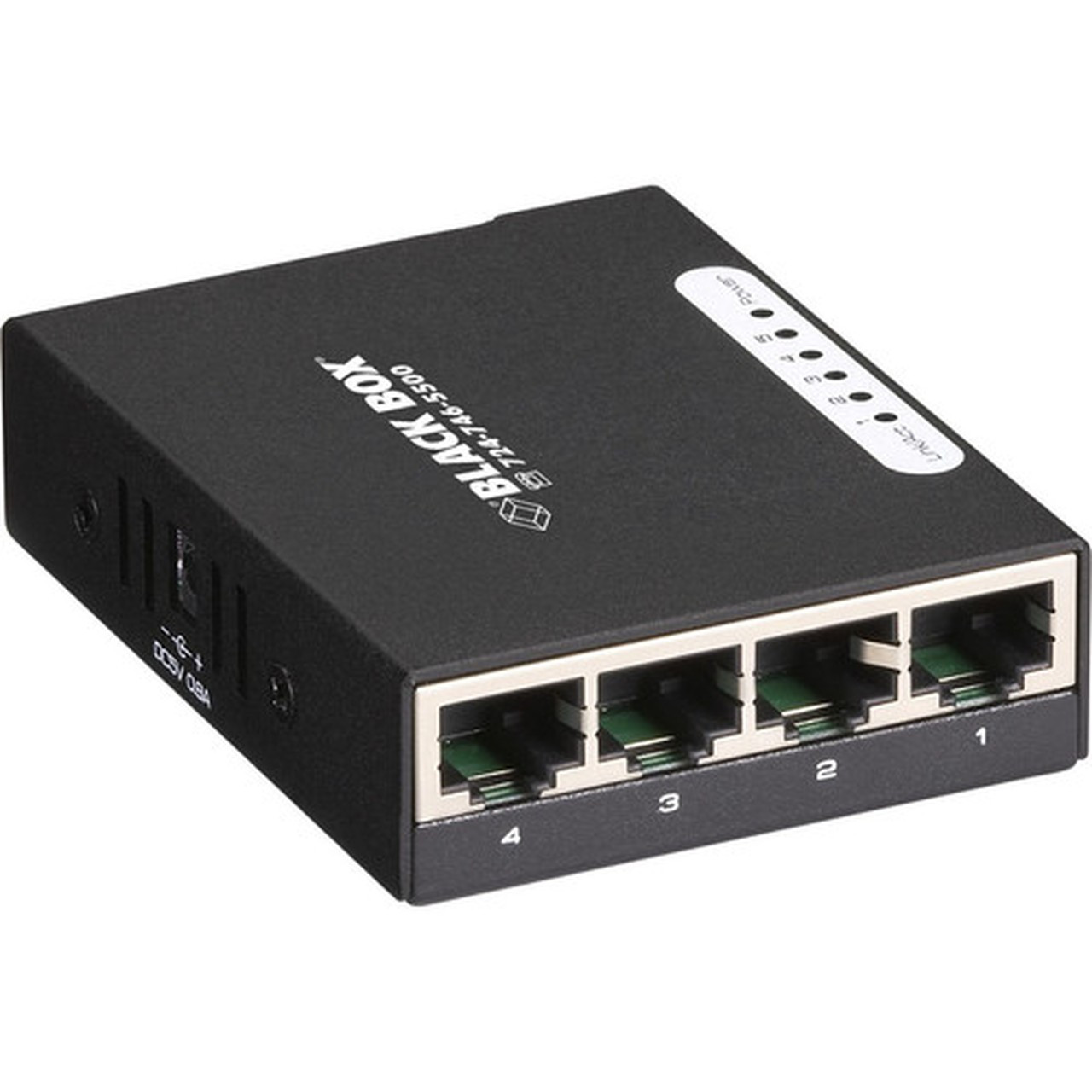

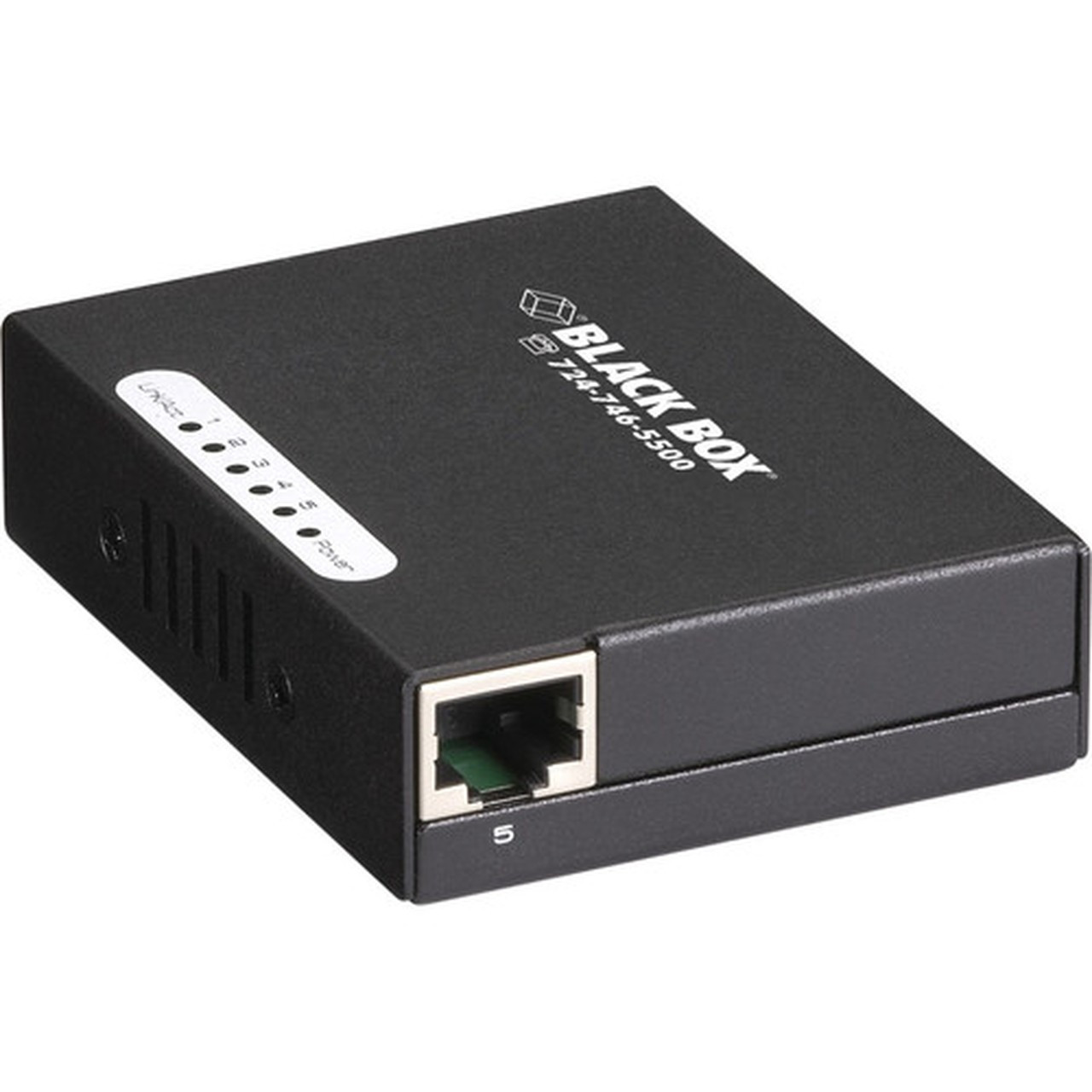

Black Box USB-Powered 10/100 5-Port Switch - 5 Ports - 10/100Base-TX - TAA Compliant - 2 Layer Supported - Twisted Pair - Desktop - 1 (LBS005A)
- Autosensing 10-/100-Mbps ports.
- Autonegotiating half-/full-duplex.
- Auto-MDI/MDI-X function on all ports, so no need for cross-pinned cables.
- Non-blocking, store-and-forward switching method.
- Easy-to-see LED indicators enable you to view network status.
- Easy plug-and-play operation.
- Compact so you can tuck it neatly in the back of your PC.
- USB-Powered 10/100 5-Port Switch
- Power Cable
- External Power Supply
Marketing Information:
Total Number of Network Ports: 5
Port/Expansion Slot Details: 5 x Fast Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Layer Supported: 2
Power Source: Power Adapter,USB
Form Factor: Desktop
Height: 0.80" (20.32 mm)
Width: 2.40" (60.96 mm)
Depth: 3.10" (78.74 mm)
Weight (Approximate): 181.4 g
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 1 Year
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Just plug-in the switch with USB port to make it run
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBS005A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | USB-Powered 10/100 5-Port Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Adapter,USB |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 0.80" (20.32 mm) |
| Width | 2.40" (60.96 mm) |
| Depth | 3.10" (78.74 mm) |
| Weight (Approximate) | 181.4 g |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Infomartion
1 Year
