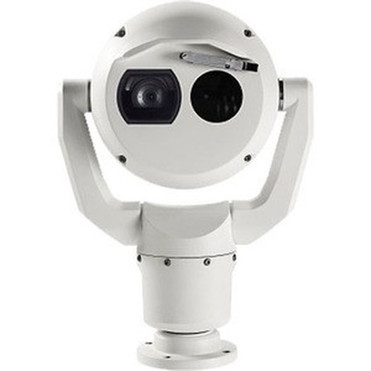

Bosch MIC IP fusion MIC-9502-Z30WQS 2.1 Megapixel Full HD Network Camera - Color, Monochrome - 1 Pack - Dome - White - TAA Compliant - (MIC-9502-Z30WQS)

Marketing Information: The MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities, the MIC IP fusion 9000i camera is the perfect choice when a robust and high-quality imaging solution is needed. The MIC camera's distinctive, ruggedized design is well suited for applications having extreme weather conditions of hot/cold temperatures, high winds, rain, fog, ice, and installations associated with shock and vibrations events such as bridges and towers. Precision engineered using Bosch's domain expertise in material and mechanical engineering, this camera offers the most advanced imaging and positioning system solution available on the market.

Functions

Exceptional imaging performance
The MIC IP fusion 9000i camera incorporates a highperformance thermal imaging core and a 1080p starlight-quality day/night visible camera integrated in the same housing. This allows the camera to deliver simultaneous thermal and visible video streams, maximizing the ability to detect and react to longrange threats.

Thermal imager
The thermal imager incorporates the latest un-cooled vanadium oxide microbolometer technology. This high sensitivity thermal imager is equipped with a fixed focal length Athermal lens that balances the field-ofview with maximizing the detection distance. MIC's thermal core seamlessly and automatically optimizes the image through the use of edge enhancement, dynamic contrast thresholding and adaptive rescaling processes. In addition, its integrated flat field correction feature provides a uniform reference so that scene components are correctly represented.
The combination of these embedded features assure the highest quality image will always be delivered. Depending on model mix, QVGA resolution (320 pixels) and VGA resolution (640 pixels) versions are available, with choice of low (<9Hz) or high (30/60Hz) frame rates. In addition, a wide variety of userselectable thermal color modes are available allowing further optimization of the thermal image.

HD Recording: Yes

Recording Formats: Full HD

Image Sensor Type: Exmor R CMOS

Thermal Image Sensor Type: Uncooled Vanadium Oxide Microbolometer

Color Supported: Color,Monochrome

Field of View: 16° x 12°/2.3° to 64.7°

Effective Camera Resolution: 2.1 Megapixel

Video Formats: MJPEG,H.264,H.265

Maximum Video Resolution: 1920 x 1080

Thermal Video Resolution: 320 x 240

Maximum Frame Rate: 60 fps

Lens Type: Varifocal

Minimum Focal Length: 4.3 mm

Maximum Focal Length: 129 mm

Lens Included: Yes

Minimum Aperture: f/4.7

Maximum Aperture: f/1.6

Optical Zoom: 30x

Maximum Thermal Focal Length: 0.75" (19 mm)

Shortest Shutter Speed: 1/30000 Second

Longest Shutter Speed: 1/1 Second

Connectivity Technology: Wired

Remote Management: Yes

Ethernet Technology: Fast Ethernet

Protocols: IPv4,IPv6,UDP,TCP,HTTP,HTTPS,APIPA,DHCP,FTP,ARP,IGMP v2,IGMP v3,ICMP,ICMPv6,LLDP,SOAP,CHAP,DiffServ (QoS),SMTP,iSCSI,UPnP (SSDP),SNMPv1 (MIB2),SNMPv3 (MIB2)

Storage Type: Memory Card

Network (RJ-45): Yes

Input Voltage: 24 V AC

Power Source Type: AC,PoE

Color Family: White

Product Color: White

Mount Type: Pedestal Mount,Wall Mount,Corner Mount,Pole Mount,Conduit Mount,Bracket Mount

Form Factor: Dome

Durability: Corrosion Resistant,Weather Resistant,Impact Resistant,Vibration Resistant,Dust Resistant,Water Resistant,Rain Resistant,Snow Resistant

Height: 16.58" (421.13 mm)

Width: 11.74" (298.20 mm)

Depth: 7.14" (181.36 mm)

Weight (Approximate): 9 kg

Minimum Operating Temperature: -40°F (-40°C)

Maximum Operating Temperature: 149°F (65°C)

Maximum Operating Humidity: 100%

Features: Auto Gain Control,Noise Reduction,Day/Night,Removable IR Cut-off Filter,Automatic White Balance,Defog,Heater,Built-in Fan,Surge Protection

Package Contents:

• 1 x MIC-9502-Z30WQS PTZ Thermal QVGA-19mm 2MP 30x 9Hz, White
• 1 x Quick Installation Guide
• 1 x Base Gasket
• 1 x RJ45 Coupler
• 4 x MAC Address Labels
• 1 x Ground Screw

Impact Protection Rating: IK10

Ingress Protection Rating: IP68

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
