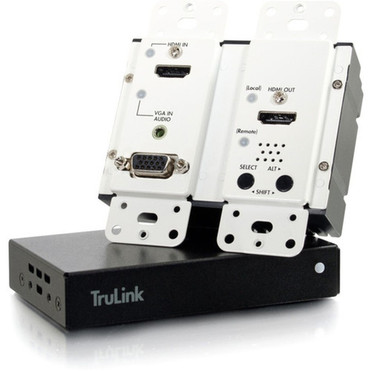

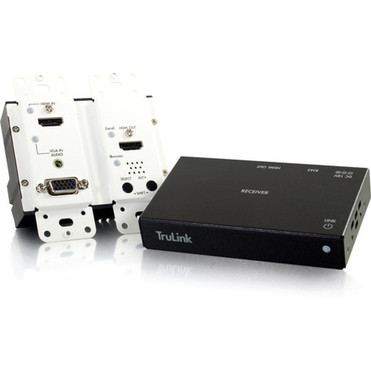

C2G HDMI and VGA + Stereo Audio to HDBaseT over Cat Extender Kit - TAA - 2 Input Device - 1 Output Device - 230 ft (70104 mm) Range - (29218)

Marketing Information:

The HDMI® and VGA + Stereo Audio to HDMI HDBaseT over Cat Extender Kit is a complete solution for extending audio/video signals from a Blu-ray™ player and a laptop to the HDMI input of a projector. This kit extends HDMI, VGA and Stereo Audio signals over a single Cat5e, Cat6, or Cat6a network patch cable up to 230 feet at a 1080p resolution. The rear cable connections for the Cat cable and the optional serial cable are set at 90°, making connections in a wall box easy. The local HDMI output of the front of the wall plate allows an additional HDMI display to be supported via an HDMI cable.

Switching between HDMI and VGA inputs is made easy with three options available. Automatic switching displays the last connected device, manual switching via the button on the front of the wall plate, or Serial RS232 switching which accepts serial commands from a control device, like our TruLink® A/V Controller This solution is compatible with any operating system and is truly plug and play with no drivers or software required. This solution utilizes TruChoice™ power, which allows power to be supplied over the Cat cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display's capabilities to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.

Connectivity Technology: Wired

Number of Input Devices Supported: 2

Number of Output Devices Supported: 1

Maximum Operating Distance: 230 ft (70104 mm)

Graphics Modes: 4K

Maximum Video Resolution: 3840 x 2160

Network (RJ-45): Yes

HDMI In: Yes

HDMI Out: Yes

VGA In: Yes

Number of Network (RJ-45) Ports: 2

Number of HDMI Inputs: 1

Number of HDMI Outputs: 2

Number of VGA Inputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 6

Color Family: Black

Product Color: Black

Form Factor: Wall Mountable

Transmitter Weight (Approximate): 3.41 lb (1548.11 g)

TAA Compliant: Yes

Limited Warranty: 3 Year
