C2G HDMI Over Coax Receiver - 1 Output Device - 160 ft (48768 mm) RangeUSB - 1 x HDMI Out - Full HD - 1920 x 1080 - Coaxial - (29455)

Marketing Information: The HDMI over Coax Receiver is the perfect solution for supporting more than one display with the HDMI over Coax Extender at lengths up to 160 feet Up to eight receivers may be daisy-chained from each output of the HDMI over Coax Extender Transmitter to support up to sixteen displays for support of a small scale digital signage system. This solution utilizes a single RG6 coax cable to connect to additional receivers and displays.

To integrate this receiver with the HDMI over Coax Extender, connect up to 160 feet of RG6 cable from the BNC output of the Extender receiver to the BNC input of the additional receiver. Each receiver features an RG6 output which may be used to support an additional receiver. Up to eight receivers may be daisy-chained off of each of the output of the transmitter for a total of sixteen displays. Finally, connect a HDMI cable from the HDMI output of each receiver to an HDMI input on a HDTV, projector or monitor to supply high definition audio and video.

Connectivity Technology: Wired

Number of Output Devices Supported: 1

Maximum Operating Distance: 160 ft (48768 mm)

Graphics Modes: Full HD

Maximum Video Resolution: 1920 x 1080

HDMI Out: Yes

USB: Yes

Number of HDMI Outputs: 1

Media Type Supported: Coaxial

Color Family: Black

Product Color: Black

Receiver Height: 0.98" (25 mm)

Receiver Width: 6.18" (157 mm)

Receiver Depth: 4.65" (118 mm)

Form Factor: Rack-mountable

Receiver Weight (Approximate): 2.02 lb (915.35 g)

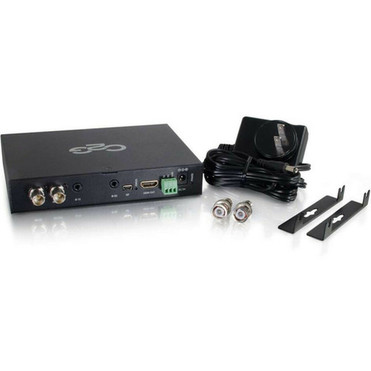

Package Contents:

• HDMI Over Coax Receiver
• 5V, 3A DC Power Supply
• 2 x BNC to RF Adapter
• 2 x Mounting Bracket

Limited Warranty: 1 Year
