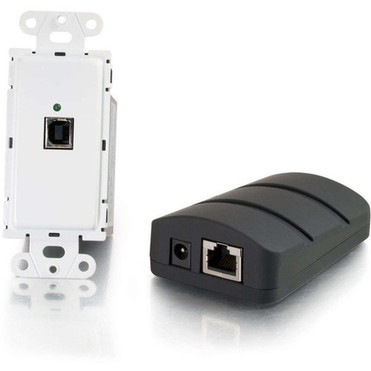

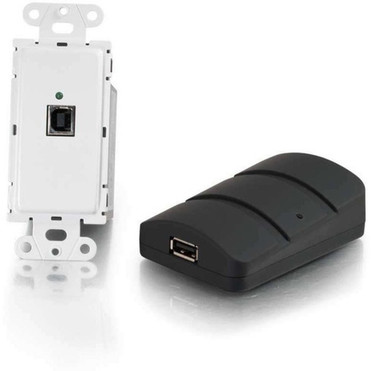

C2G USB 2.0 Over Cat5 Superbooster Wall Plate Transmitter to Dongle Receiver Kit - PVC - White (53878)

Marketing Information:

The USB 2.0 Superbooster was designed for systems integrators, installers and other end users seeking an innovatively simple yet powerful solution for extending USB signals beyond their native 16.4ft length limitation. Specifically for use in commercial environments, the USB 2.0 Superbooster is the only USB 2.0 solution on the market that is available in both a dongle and wall plate version. The wall plate and dongle can be interchanged to fit the needs of any installation requiring high performance and maximum flexibility.

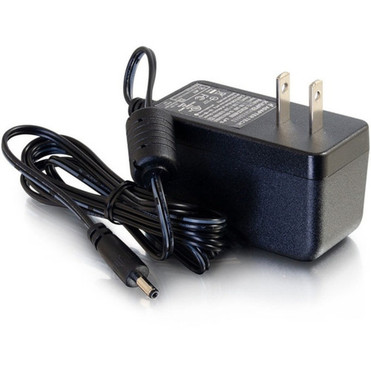

Using true USB 2.0 speed and power, this solution provides increased bandwidth and faster data transfer speeds over standard Cat5/6 cabling at lengths up to 328ft. Integrated UTP power inserter technology provides 500 milliamps of power when the power adapter is connected through the transmitter end or receiver end, depending on the desired configuration. This provides enough power to operate most new USB devices and allows for flexibility in equipment placement.

The single gang wall plates provide the clean look of a professional installation. The small form factor of both the dongle and wall plate versions allows for easy installation in tight spaces. The dongle end is uniquely designed to allow it to be securely tethered to other equipment. Installation is quick and easy with no software or driver installation required.

This solution utilizes TruChoice™ power providing the flexibility to power at either the transmitter or receiver end.

Additional Information:

• 1 x Wall Plate Transmitter
• 1 x Dongle Receiver
• Color: White and Black
• Full USB 2.0 speed and power
• Integrated UTP power inserter technology
• Interchangeable design with swappable components - wall plates and dongles
• Extends USB from 16.4ft up to 328ft over Cat5/6 (UTP/STP, solid/stranded)

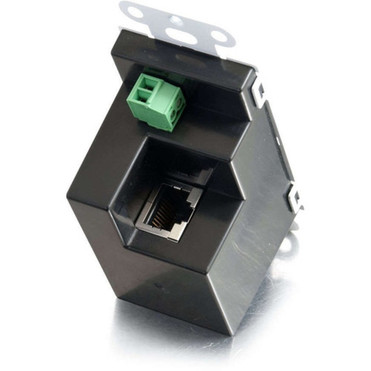

• Base Connectors: One USB Type B Female and One RJ45 Female
• Remote Connectors: One USB Type A Female and One RJ45 Female

Country of Origin: China

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 1 Year
