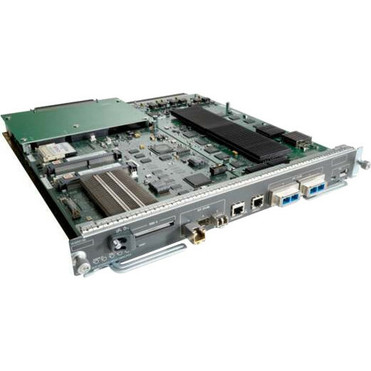

Cisco Catalyst 6500 Series Supervisor Engine 2T - 1 x RJ-45 10/100/1000Base-T Management, 1 x RJ-45 Management, 1 x USB5 x Expansion (VS-S2T-10G-RF)

Marketing Information: Supervisor Engine 2T delivers scalable performance, intelligence, and a broad set of features to address the needs of Borderless Networks, data centers, and service provider networks. Some of the primary features for Supervisor Engine 2T include:

• Platform scalability: Delivering up to 80 Gbps per slot of switching capacity on E-Series chassis; 2-Terabit aggregate bandwidth capacity using the 6513-E chassis, scaling to 4-Terabit capacity with VSS. Support for up to 1056 ports of 1Gbps and 352 ports of 10Gbps systems deployed with VSS. Providing 1Gbps/10Gbps and 40Gbps interface support to address future customer bandwidth growth requirements.
• Security: Support for Cisco TrustSec, CTS, providing MacSec encryption and Role-Based ACL. Providing control plane policing to address denial of service attacks.
• Virtualization: Native support for VPLS, as well as enhancements such as VPN-aware NAT, VPN statistics, and VPN netflow as important features needed for deployment of network virtualization.
• Netflow application monitoring: Supervisor Engine 2T supports enhanced application monitoring such as Flexible and Sampled Netflow for intelligent and scalable application monitoring.

Application/Usage:
• Optical Network
• Data Networking

Total Number of Ports: 2
Connector Type:
• RJ-45
• USB

Interfaces/Ports Details:
• 1 x RJ-45 10/100/1000Base-T Management
• 1 x RJ-45 Management
• 1 x USB

Number of Total Expansion Slots: 5
Expansion Slot Type:
• SFP (mini-GBIC)
• X2

Height: 1.73" (43.94 mm)
Width: 14.40" (365.76 mm)
Depth: 16" (406.40 mm)
Weight (Approximate): 5.44 kg
Compatibility:

Catalyst 6500 Series Switches
