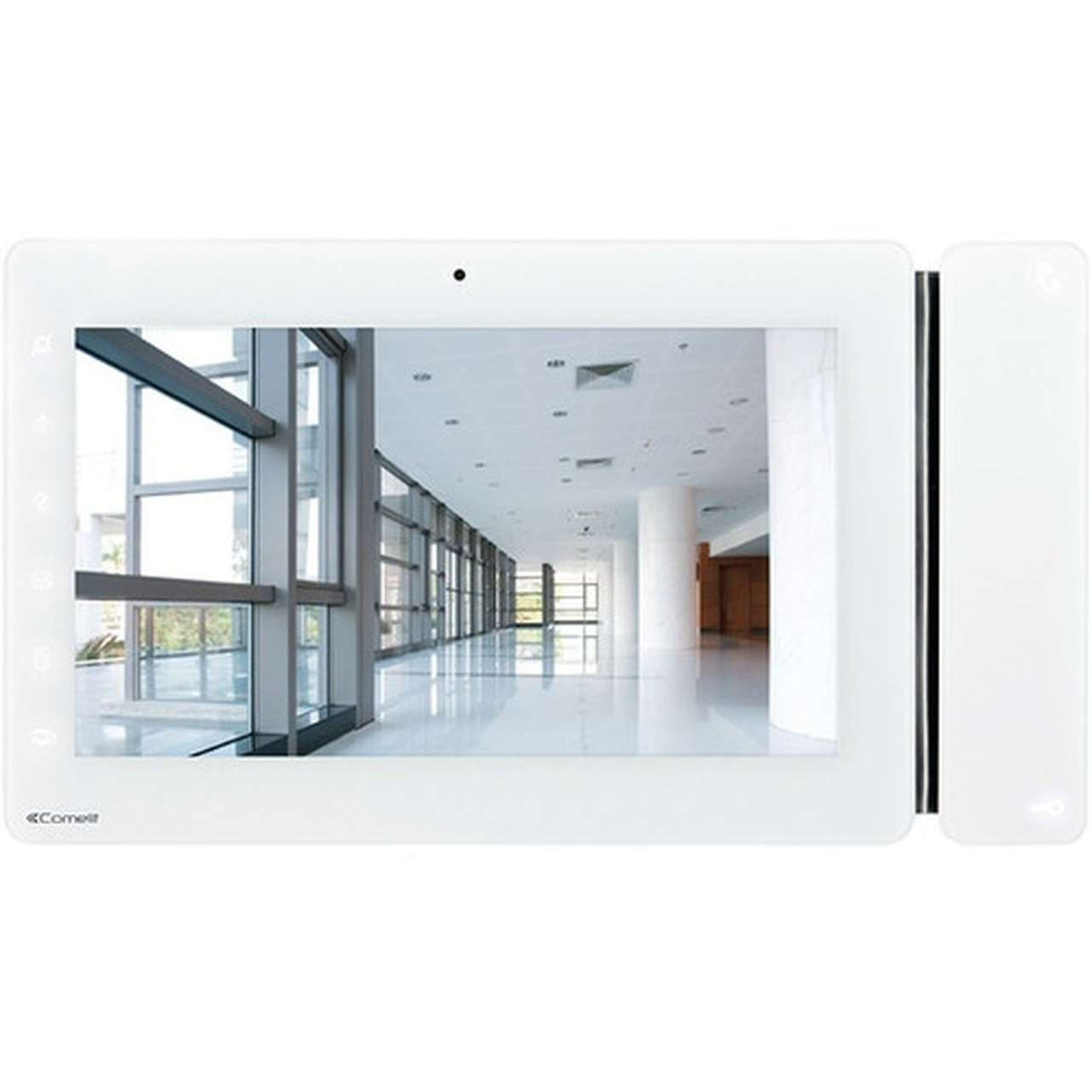

Marketing Information: Colour monitor for flush-mounting (on Art. 6817) or wall-mounting (on support Art. 6820) with 7" 16/9 screen, hands-free full-duplex audio and touch sensitive controls. Allows brightness, contrast and audio volume control, plus adjustment of the volume of the ringtone, which can be customised with a choice of different melodies. Equipped as standard with control buttons for lock-release and audio enable/disable with relative indicator LEDs, plus 6 further buttons for self-ignition, privacy service and other programmable functions. Manages floor door calls and call repeat as standard. Complete with 2 x 8-position DIP-switches for user code programming and button programming. Equipped with riser distribution terminal Art 1214/2C. The monitor can only be used in 2-wire SimplebusTop Color systems. Dimensions: 223x124x25mm.Communication Mode: Full-duplexWiring Type: 2-wireDisplay Screen Type: LCDScreen Resolution: 800 x 480Touchscreen: YesProduct Color: WhiteHeight: 4.88" (124 mm)Width: 8.78" (223 mm)Depth: 0.98" (25 mm)
[custom-specifications]
Specifications
Manufacturer: Comelit Group S.p.A
Manufacturer Part Number: 6801W
Manufacturer Website Address: http://www.comelit.eu
Brand Name: Comelit
Product Line: Maxi
Product Name: 7" Maxi Series Monitor. SBC System
Product Type: Video Master Station
Technical Information
Communication Mode: Full-duplex
Wiring Type: 2-wire
Display & Graphics
Display Screen Type: LCD
Screen Resolution: 800 x 480
Touchscreen: Yes
Physical Characteristics
Product Color: White
Height: 4.88" (124 mm)
Width: 8.78" (223 mm)
Depth: 0.98" (25 mm)
