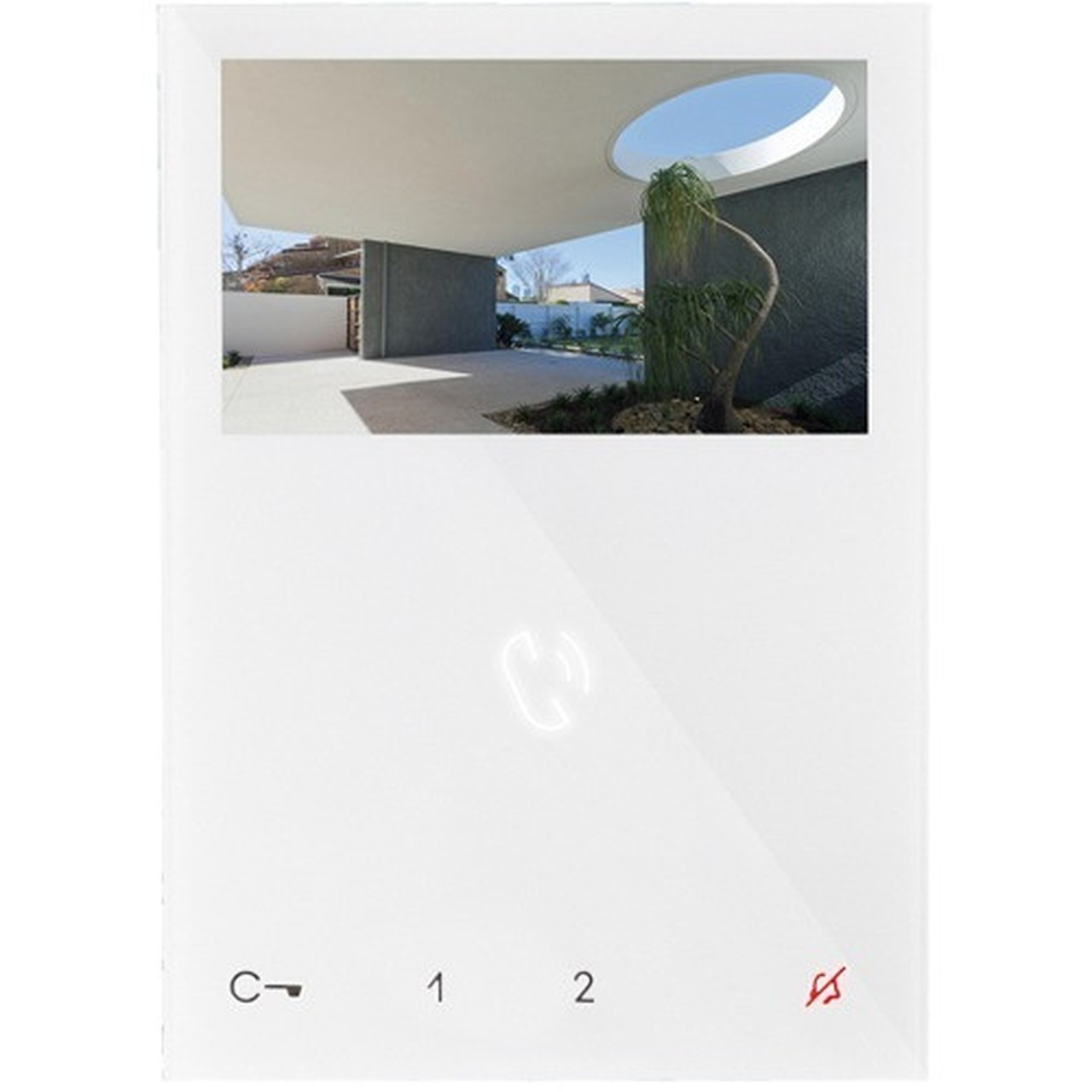

Marketing Information: Wall-mounted monitor with 4.3" 16/9 colour screen and handset. Allows brightness and colour control, plus adjustment of the ringtone volume, which can be customised by choosing one of several different melodies. Equipped with 4 soft-touch buttons for lock-release, self-ignition, switchboard call and privacy function management as standard, and with door status indicator LED. Manages floor door calls as standard. Option of adding 4 additional buttons with accessory Art. 6733W. Complete with 2 x 8-position DIP-SWITCHES for user code programming and button programming. The wall-mounting or residential series box backplate and riser distribution terminal Art. 1214/2C are included. The monitor can only be used in 2-wire SimplebusTop Colour systems. Dimensions 175x160x22 mm.Wiring Type: 2-wireDisplay Screen Type: LCDScreen Resolution: 480 x 272Touchscreen: YesInput Voltage: 28 V DCProduct Color: WhiteHeight: 6.89" (175 mm)Width: 6.30" (160 mm)Depth: 0.87" (22 mm)Weight (Approximate): 533 mgApplication/Usage: Door EntryCountry of Origin: Italy
[custom-specifications]
Specifications
Manufacturer: Comelit Group S.p.A
Manufacturer Part Number: 6721W
Manufacturer Website Address: http://www.comelit.eu
Brand Name: Comelit
Product Name: Hands-Free Mini Monitor. White. Sbtop System
Product Type: Video Master Station
Technical Information
Wiring Type: 2-wire
Display & Graphics
Display Screen Type: LCD
Screen Resolution: 480 x 272
Touchscreen: Yes
Power Description
Input Voltage: 28 V DC
Physical Characteristics
Product Color: White
Height: 6.89" (175 mm)
Width: 6.30" (160 mm)
Depth: 0.87" (22 mm)
Weight (Approximate): 533 mg
Miscellaneous
Application/Usage: Door Entry
Country of Origin: Italy
