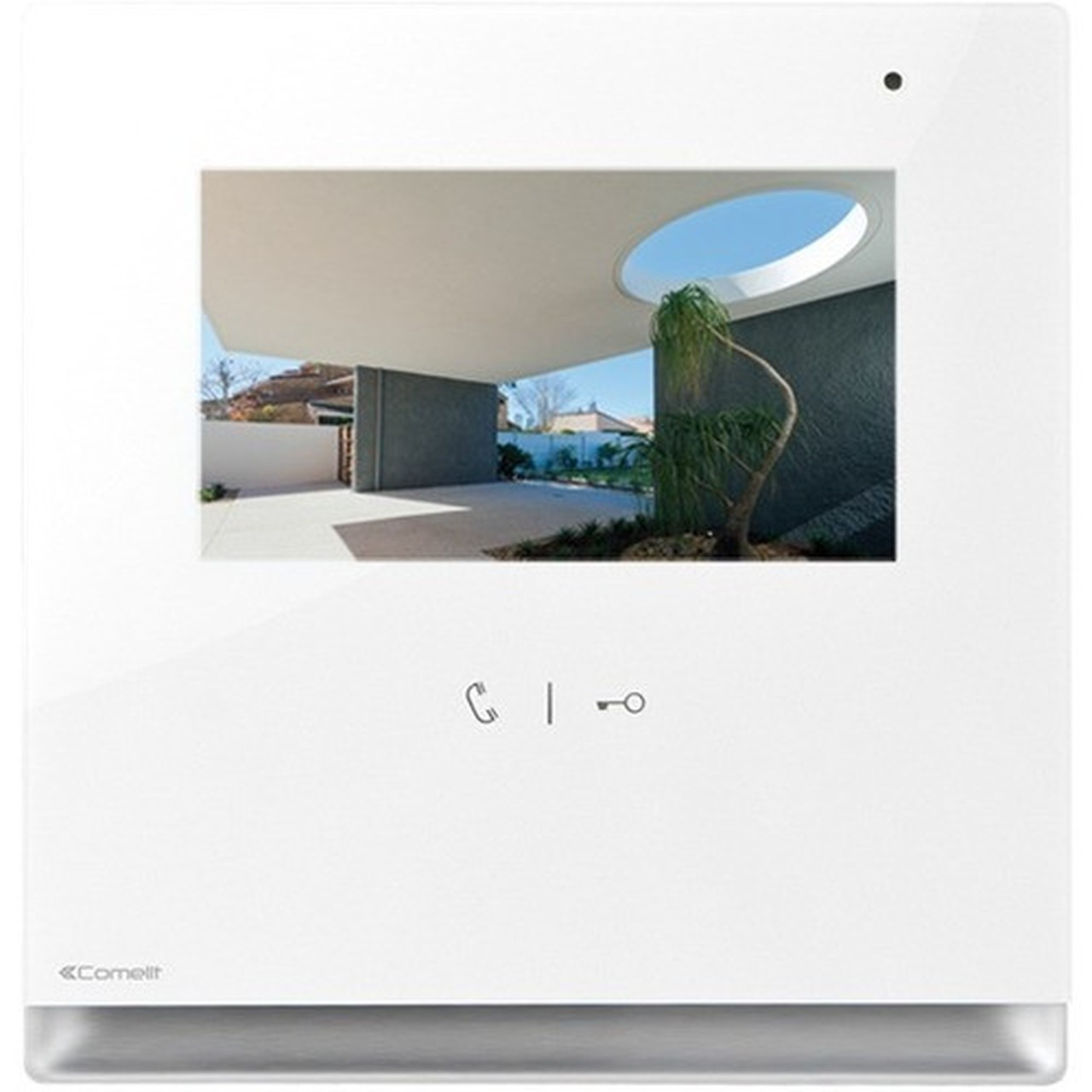

Marketing Information: Flush-mounted (on box Art. 6117) or surface-mounted (with bracket Art. 6620) colour monitor with 4.3'' 16/9 touch screen and hands-free full-duplex audio. Allows adjustement of backlighting intensity, contrast, audio volume and ringtone volume. Equipped as standard with sensitive touch controls for lock-release, audio activation, self-ignition, privacy service and 3 other controls for programmable functions, and door open and new message indicator LEDs. Standard floor door call and call repetition management, with alarm and panic inputs and micro SD Card slot. You can customise the ringtone and video memory function with an absent message. Can also be used on standard POE systems. Dimensions 142.5x147x23mm. Compatible with H.264 video format.Communication Mode: Full-duplexDisplay Screen Type: LCDScreen Resolution: 480 x 272Touchscreen: YesInput Voltage: 57 V DCColor Family: WhiteProduct Color: WhiteHeight: 5.61" (142.50 mm)Width: 5.79" (147 mm)Depth: 0.91" (23 mm)
[custom-specifications]
Specifications
Manufacturer: Comelit Group S.p.A
Manufacturer Part Number: 6602W
Manufacturer Website Address: http://www.comelit.eu
Brand Name: Comelit
Product Line: Icona
Product Name: Icona Series Hands-Free Colour Monitor. VIP System. H264
Product Type: Video Door Phone Master Station
Technical Information
Communication Mode: Full-duplex
Display & Graphics
Display Screen Type: LCD
Screen Resolution: 480 x 272
Touchscreen: Yes
Power Description
Input Voltage: 57 V DC
Physical Characteristics
Color Family: White
Product Color: White
Height: 5.61" (142.50 mm)
Width: 5.79" (147 mm)
Depth: 0.91" (23 mm)
