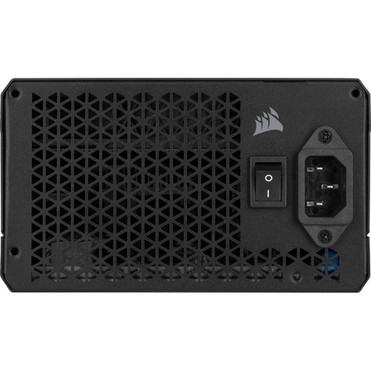

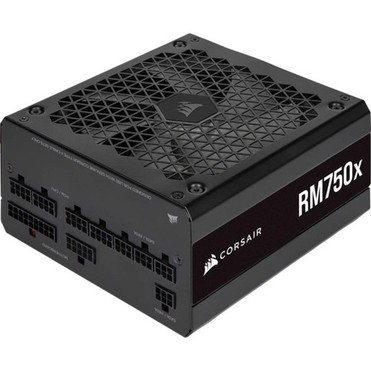

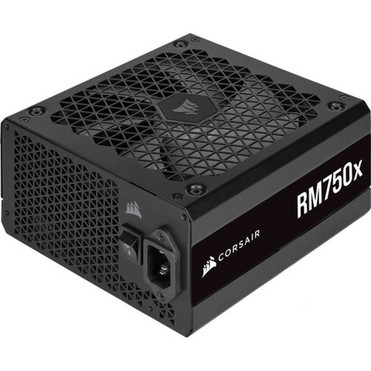

Corsair RMx Series RM750x - 750 Watt 80 PLUS Gold Fully Modular ATX PSU - ATX - 120 V AC, 230 V AC Input - 5 V DC @ 20 A, 3.3 V DC @ V (CP-9020199-NA)

Marketing Information:

MAGNETIC LEVITATION COOLING MEETS HIGH EFFICIENCY

CORSAIR RMx Series fully modular power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC with the cooling power of potent Magnetic Levitation fans.

135MM MAGNETIC LEVITATION FAN

Utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low bearing noise, and superior reliability.

HIGH EFFICIENCY

With upwards of 90% peak efficiency, RMx produces less noise and less heat, which means less time worrying and more time gaming.

FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS

Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.

Also compatible with the 12-pin GPU Power Cable for the hottest new GPUs.

ZERO RPM FAN MODE

At low and medium loads the cooling fan switches off entirely for near-silent operation, but once the action picks up, the fan activates, ensuring critical component temps stay in check.

TECHNOLOGY AND RELIABILITY

For consistent, reliable power and superb electrical performance, each RMx Series power supply features a robust resonant LLC topology with DC-DC conversion, and 105°C rated 100% Japanese electrolytic capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

CERTIFICATIONS

The Cybenetics organization measures efficiency and noise levels across the PSU's entire operational range, using more than 1,450 different load combinations.

The "Gold" efficiency rating is defined as ≥87% to <91% (depending on input voltage).

The "A-" noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.

TEN-YEAR WARRANTY

Ten-year warranty backed by the CORSAIR global technical support team.

YOUR BUILD, YOUR WAY

Every fully modular CORSAIR PSU is compatible with a wide range of CORSAIR accessories. From individually sleeved cables in a variety of color combinations to 12-pin micro-fit GPU cables and 12VO motherboard cables, complete your build your way.

Specification Compliance: ATX12V/EPS12V

Efficiency: 90%

Number of Fans: 1

Modular: Yes

Input Voltage: 120 V AC,230 V AC

Number of +12V Rails: 1

Output Voltage: 5 V DC,3.3 V DC,12 V DC,-12 V DC

Output Voltage Detail: 5 V DC @ 20 A,3.3 V DC @ 20 A,12 V DC @ 62.5 A,-12 V DC @ 0.3 A,5 V DC @ 3 A

Output Current: 20 A,62.50 A,300 mA,3 A

Output Power: 750 W

Form Factor: ATX

Height: 3.39" (86.11 mm)

Width: 5.91" (150.11 mm)

Depth: 6.30" (160.02 mm)

Weight (Approximate): 1.70 kg

Package Contents:

• RMx Series RM750x - 750 Watt 80 PLUS Gold Fully Modular ATX PSU
• AC Power Cord
• Mounting Screws
• Cable Ties

Country of Origin: China

Environmentally Friendly: Yes

Energy Efficiency Certification: 80 Plus Gold

Limited Warranty: 10 Year
