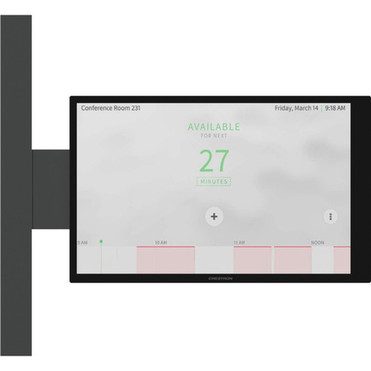

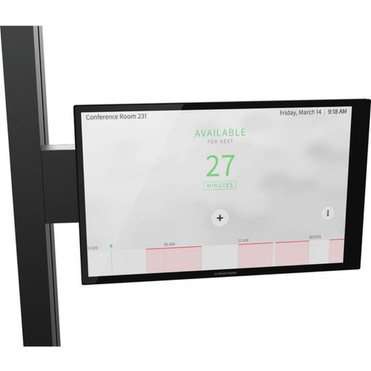

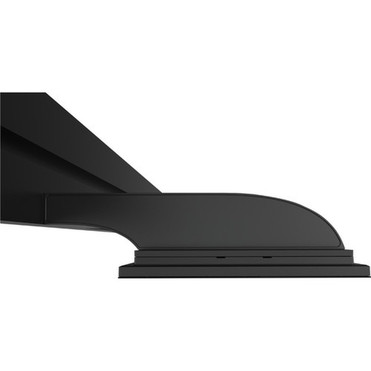

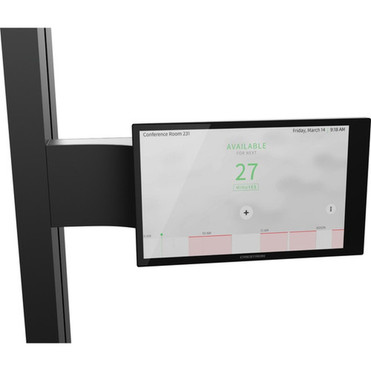

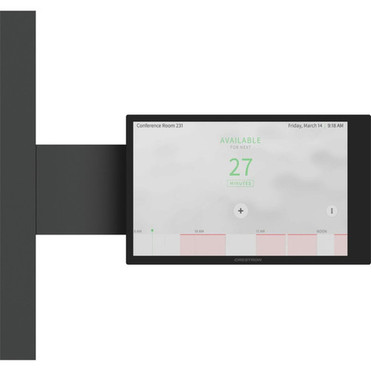

Crestron TSW-770/1070-MUMK-B Mullion Mount for Collaboration Display, Lighting Bar - Black (TSW-770/1070-MUMK-B)

Marketing Information:

The TSW-770/1070-MUMK permits a TSW-770, TSW-1070, TSS-770, or TSS-1070 series touch screen touch screen to be attached to the mullion of an interior glass wall, window, or partition. The TSW-770/1070-MUMK mounts a compatible touch screen to the left or right of any hollow, metallic vertical mullion. Two mounting brackets are provided that allow the TSW-770/1070-MUMK to be installed in one of two configurations (side mount or front mount). Wiring is run to the touch screen from inside the mullion to create a clean, finished appearance.

The TSW-770/1070-MUMK is ideal for mounting at the entrance to a meeting space for room scheduling applications, and it is compatible with the TSW-770-LB and TSW-1070-LB light bars to provide a clear indication of the room availability status.

Key Features

• Permits mounting a TSW-770, TSW-1070, TSS-770, or TSS-1070 series touch screen to the mullion of an interior glass wall, window, or partition
• Ideal for mounting at the entrance to a meeting space for room scheduling applications
• Installs in either side or front mount configuration
• Wiring is run inside the mullion for a finished appearance
• Compatible with TSW-770-LB and TSW-1070-LB light bars for a clear indication of the room availability status
• Available in black or white finish

Device Supported:
• Collaboration Display
• Lighting Bar

Product Color: Black
Product Material:
• Aluminum
• Steel

Height: 5.87" (149.10 mm)
Width: 10.63" (270 mm)
Depth: 2.46" (62.48 mm)
Weight (Approximate): 453.6 g
Application/Usage: Wall
Compatibility:

Crestron Touch Screens:

• TSW-770
• TSW-1070
• TSS-770
• TSS-1070
• TSW-770-LB
• TSW-1070-LB

• Collaboration Display
• Lighting Bar

• Aluminum
• Steel

Crestron Touch Screens:

• TSW-770
• TSW-1070
• TSS-770
• TSS-1070
• TSW-770-LB
• TSW-1070-LB
