- Enjoy the optimal performance in today's on-demand labeling applications
- Save time and money for your business by using one printer for all your employees

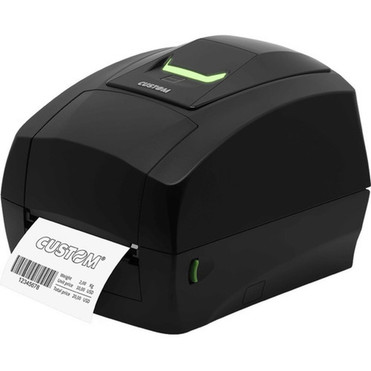

Marketing Information: D4 102 is a compact size 4" desktop label printer with a industrial level equipments and high performance. Multiple communication ports, 1 multi function key and LED light to easily operate and show the error status are some of the main features that makes this label printer ideal for labelling application.Recommended Use: Label PrintPrint Color Capability: MonochromeMaximum Mono Print Speed: 127 mm/sMaximum Print Resolution (dpi): 203Maximum Print Length: 12.50 ft (3810 mm)Maximum Print Width: 4.09"Barcode Symbology Supported: - Code 39
- Code 93
- Extended Code 39
- Code 128
- Code 128 UCC
- Codabar
- EAN-8
- EAN-13
- 2 and 5 Digits Add-on
- Interleaved 2 of 5
- Interleaved 2 of 5 With Check Digit
- UCC/EAN 128
- UPC-A
- UPC-E
- UPC-E with 2 or 5 Digit Extension
- Code 11
- Data Matrix
- Maxi Code
- PDF417
- QR Code
Connectivity Technology: WiredFonts Included: - 5 internal expandable bitmap fonts (alpha-numeric)
- Downloadable soft font
- 4 directions: O, 90, 180, 270 degrees
- 2 internal expandable bitmap fonts (numeric only)
Application/Usage: DesktopFeatures: CompactStandard Memory: 128 MBUSB Host: YesUSB: YesEthernet: YesEthernet Technology: Fast EthernetMedia Type: - Label
- Continuous Label
- Die-cut Label
- Tag
- Fanfold
- Black Mark
Media Sensor: - Moveable Reflective/Black Mark Sensor
- Cover Open Sensor
Media Thickness: 7.9 milMaximum Roll Diameter: 5"Maximum Label Width: 4.33" (110 mm)Language Emulation: Power Source: Input Voltage: Operating Temperature: 41°F (5°C) - 113°F (45°C)Operating Relative Humidity: 10% - 90%Storage Temperature: -4°F (-20°C) - 122°F (50°C)Storage Relative Humidity: 5% - 95%Product Color: BlackHeight: 7.40" (188 mm)Width: 7.87" (200 mm)Depth: 10.35" (263 mm)Weight (Approximate): 2 kgPlatform Supported: PC
[custom-specifications]
SpecificationsManufacturer: Custom S.p.A
Manufacturer Part Number: 911MK010500J33
Manufacturer Website Address: http://www.custom.biz
Brand Name: Custom
Product Model: D4 102
Product Name: D4 102 Label Printer
Product Type: Direct Thermal/Thermal Transfer Printer
Technical InformationRecommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 127 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 12.50 ft (3810 mm)
Maximum Print Width: 4.09"
Barcode Symbology Supported:
- Code 39
- Code 93
- Extended Code 39
- Code 128
- Code 128 UCC
- Codabar
- EAN-8
- EAN-13
- 2 and 5 Digits Add-on
- Interleaved 2 of 5
- Interleaved 2 of 5 With Check Digit
- UCC/EAN 128
- UPC-A
- UPC-E
- UPC-E with 2 or 5 Digit Extension
- Code 11
- Data Matrix
- Maxi Code
- PDF417
- QR Code
Connectivity Technology: Wired
Fonts Included:
- 5 internal expandable bitmap fonts (alpha-numeric)
- Downloadable soft font
- 4 directions: O, 90, 180, 270 degrees
- 2 internal expandable bitmap fonts (numeric only)
Application/Usage: Desktop
Features: Compact
MemoryStandard Memory: 128 MB
Interfaces/PortsUSB Host: Yes
USB: Yes
Network & CommunicationEthernet: Yes
Ethernet Technology: Fast Ethernet
Media Types & HandlingMedia Type:
- Label
- Continuous Label
- Die-cut Label
- Tag
- Fanfold
- Black Mark
Media Sensor:
- Moveable Reflective/Black Mark Sensor
- Cover Open Sensor
Media Thickness: 7.9 mil
Maximum Roll Diameter: 5"
Maximum Label Width: 4.33" (110 mm)
Fonts & EmulationLanguage Emulation:
Power DescriptionPower Source:
Input Voltage:
Environmental ConditionsOperating Temperature: 41°F (5°C) - 113°F (45°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: -4°F (-20°C) - 122°F (50°C)
Storage Relative Humidity: 5% - 95%
Physical CharacteristicsProduct Color: Black
Height: 7.40" (188 mm)
Width: 7.87" (200 mm)
Depth: 10.35" (263 mm)
Weight (Approximate): 2 kg
MiscellaneousPlatform Supported: PC
