- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 1.2 minutes at full load

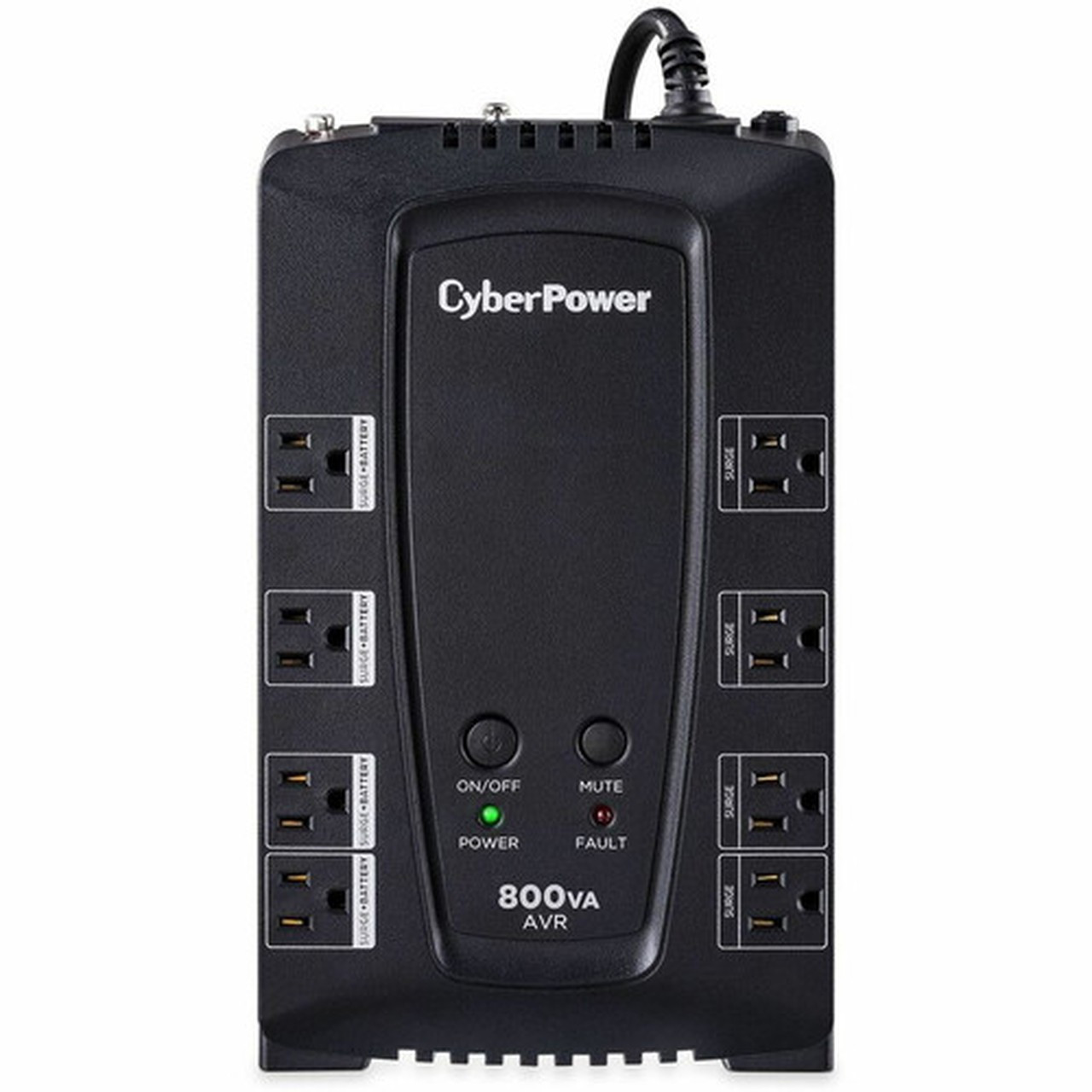

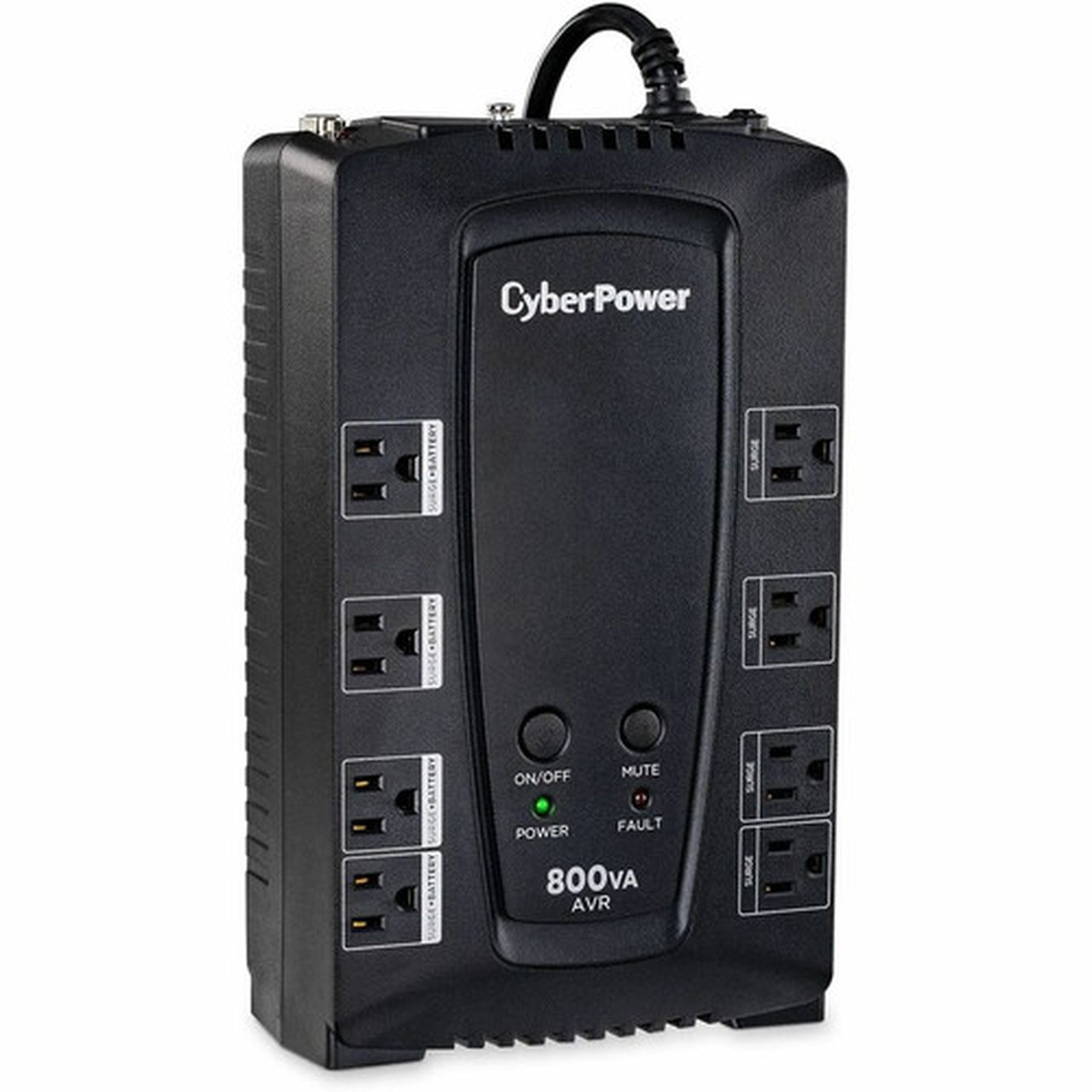

Marketing Information: The CyberPower CP800AVR uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver battery backup to power connected electronics during a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems.
The CP800AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit's battery life. CyberPower designed the CP800AVR to minimize noise for a quieter work environment and run efficiently to reduce power consumption.
With a
- 200,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of this battery backup with surge protection. Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge. What's In The Box
UPS System, User Manual, USB A+B Type Cable, Serial Cable, Warranty Registration Card
More from the Manufacturer
AVR: YesPlug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 8 x NEMA 5-15RNumber of Battery & Surge Outlets: 4Number of Surge-only Outlets: 4Cord Length: 6 ftTransfer Time: 4 msEnergy Saving: GreenPower UPS™ BypassApplication/Usage: - Desktop Computer
- Workstation
- Home Theater
- Electronic Equipment
- Home Network
- Router
- Modem
- VoIP Phone System
Load Capacity (VA): 800 VALoad Capacity (Watt): 450 WInput Voltage: 120 V ACOutput Voltage: 120 V ACOutput Frequency: 60 HzWaveform Type: Simulated Sine WaveSurge Energy Rating: 1030 JCircuit Breaker: YesAlarm: - Low Battery
- On Battery
- Overload
Status Indicators: Serial Port: YesUSB: YesUSB (HID Compliant) Port: YesNumber of Batteries: 1Battery Characteristics: Maintenance-freeBattery Chemistry: Lead AcidBattery Size: 12VBattery Capacity: 9000 mAhBackup/Run Time (Full Load): 1.20 MinuteBackup/Run Time (Half Load): 13.50 MinuteTypical Battery Recharge Time: 8 HourReplaceable Battery: YesMaximum Operating Temperature: 95°F (35°C)Product Color: BlackHeight: 6.80" (172.72 mm)Width: 11" (279.40 mm)Depth: 3.50" (88.90 mm)Form Factor: CompactWeight (Approximate): 5.78 kgPackage Contents: - AVR CP800AVR 800VA UPS
- User Manual
- USB A+B Type Cable
- Serial Cable
- Warranty Registration Card
Software Included: PowerPanel® PersonalEnergy Star: YesEnvironmentally Friendly: YesCountry of Origin: PhilippinesLimited Warranty: 3 YearAdditional Warranty Information: - CyberPower stands behind its products by offering an industry leading 3-year warranty
- CyberPower also has a technical support team that will assist you with product, installation, or warranty concerns.
[custom-specifications]
SpecificationsManufacturer: CyberPower Systems, Inc
Manufacturer Part Number: CP800AVR
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: AVR UPS
Product Model: CP800AVR
Product Name: AVR CP800AVR 800VA UPS
Product Type: Line-interactive UPS
Technical InformationAVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 4
Cord Length: 6 ft
Transfer Time: 4 ms
Energy Saving: GreenPower UPS™ Bypass
Application/Usage:
- Desktop Computer
- Workstation
- Home Theater
- Electronic Equipment
- Home Network
- Router
- Modem
- VoIP Phone System
Power DescriptionLoad Capacity (VA): 800 VA
Load Capacity (Watt): 450 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1030 J
Circuit Breaker: Yes
ManagementAlarm:
- Low Battery
- On Battery
- Overload
Controls/IndicatorsStatus Indicators:
Interfaces/PortsSerial Port: Yes
USB: Yes
USB (HID Compliant) Port: Yes
Battery InformationNumber of Batteries: 1
Battery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 1.20 Minute
Backup/Run Time (Half Load): 13.50 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental ConditionsMaximum Operating Temperature: 95°F (35°C)
Physical CharacteristicsProduct Color: Black
Height: 6.80" (172.72 mm)
Width: 11" (279.40 mm)
Depth: 3.50" (88.90 mm)
Form Factor: Compact
Weight (Approximate): 5.78 kg
MiscellaneousPackage Contents:
- AVR CP800AVR 800VA UPS
- User Manual
- USB A+B Type Cable
- Serial Cable
- Warranty Registration Card
Software Included: PowerPanel® Personal
Energy Star: Yes
Environmentally Friendly: Yes
Country of Origin: Philippines
WarrantyLimited Warranty: 3 Year
Additional Warranty Information:
- CyberPower stands behind its products by offering an industry leading 3-year warranty
- CyberPower also has a technical support team that will assist you with product, installation, or warranty concerns.
