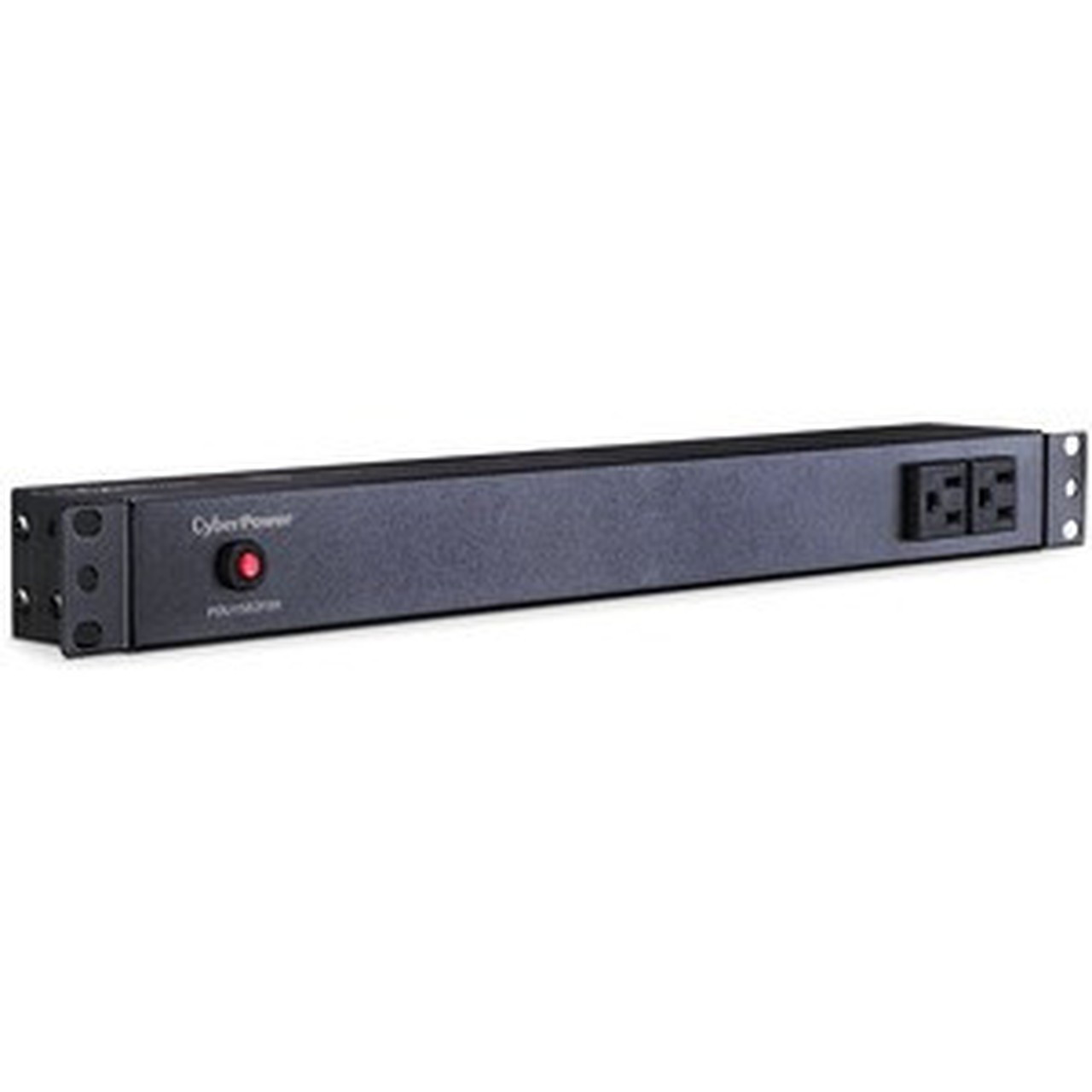

- 120V 15A 50Hz/60Hz BASIC Power Distribution Unit

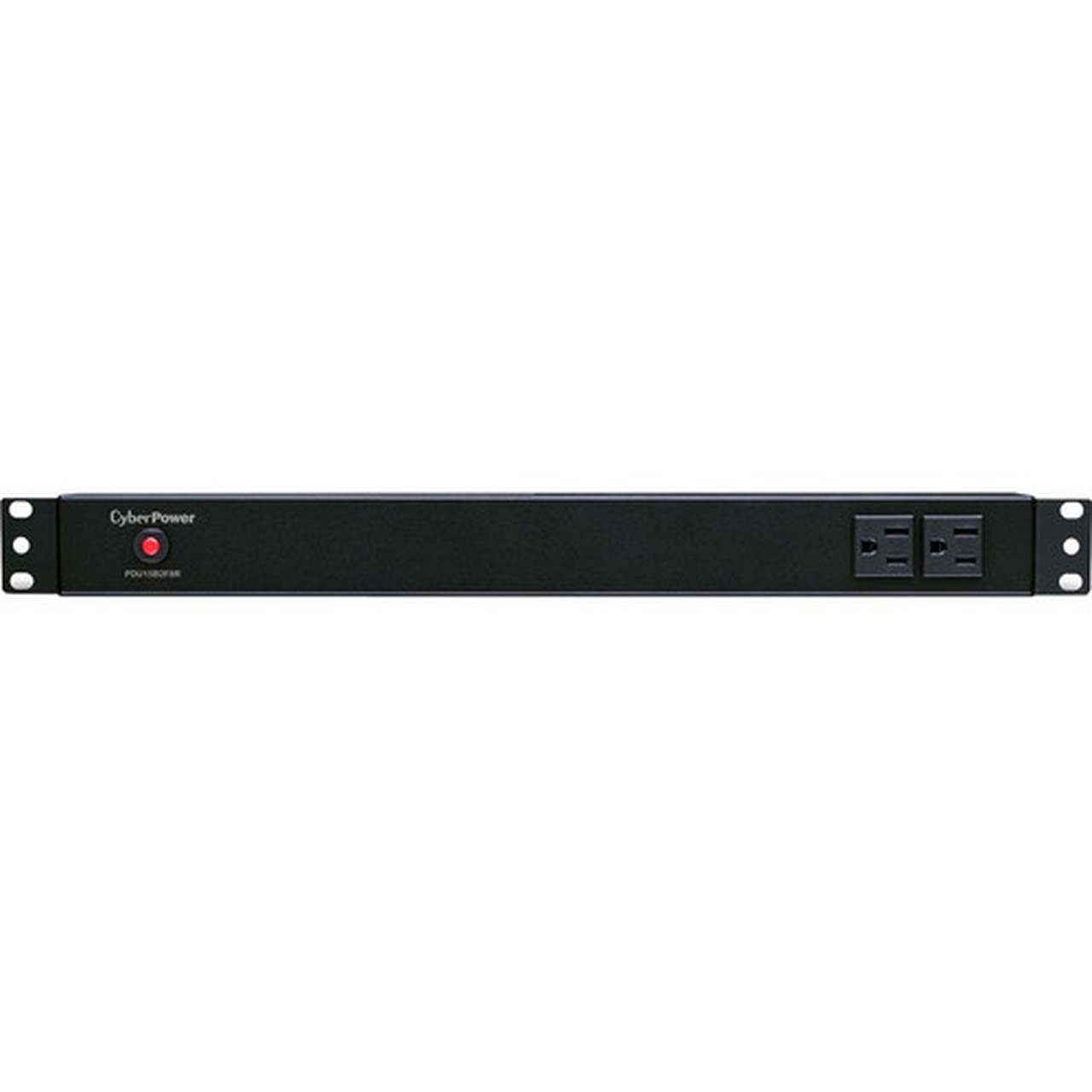

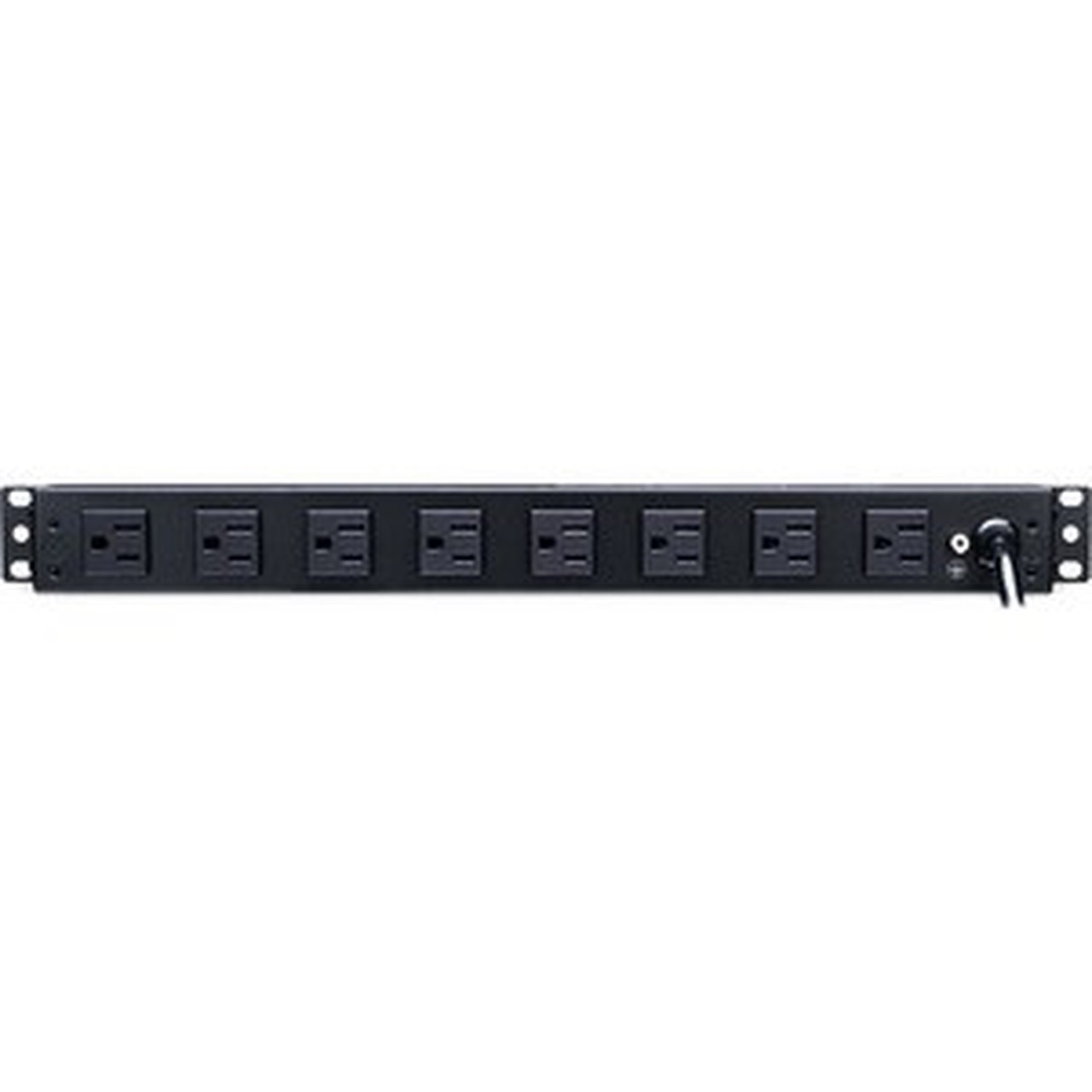

- 10 OUTLETS: (2) FRONT NEMA 5-15R (8) REAR NEMA 5-15R
- INPUT: Network-grade NEMA 5-15P plug with 15-foot power cord
- 1U Rack Mount - Rugged industrial-grade metal housing, cord retention tray, horizontal and vertical mounting brackets
Marketing Information: The CyberPower Basic PDU15B2F8R 10-Outlets PDU provides 120V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship. - 120V 15A 50Hz/60Hz BASIC Power Distribution Unit
- 10 OUTLETS: (2) FRONT NEMA 5-15R (8) REAR NEMA 5-15R
- INPUT: Network-grade NEMA 5-15P plug with 15-foot power cord
- 1U Rack Mount - Rugged industrial-grade metal housing, cord retention tray, horizontal and vertical mounting brackets
Input Receptacles: NEMA 5-15POutput Receptacles: 10 x NEMA 5-15RProtection Type: Overload ProtectionInput Voltage: 120 V ACOutput Voltage: 120 V ACMounting Orientation: VerticalPlacement: RackRack Height: 1UHeight: 1.75" (44.45 mm)Width: 17.50" (444.50 mm)Length: 2.25" (57.15 mm)Weight (Approximate): 1.81 kgPackage Contents: - Basic PDU15B2F8R 10-Outlets PDU
- Cord Retention Tray
Energy Star: NoEnvironmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: ChinaLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU15B2F8R
Manufacturer Website Address: http://www.cyberpowersystems.com
Brand Name: CyberPower
Product Model: PDU15B2F8R
Product Name: Basic PDU15B2F8R 10-Outlets PDU
Product Type: PDU
Technical InformationInput Receptacles: NEMA 5-15P
Output Receptacles: 10 x NEMA 5-15R
Protection Type: Overload Protection
Power DescriptionInput Voltage: 120 V AC
Output Voltage: 120 V AC
Physical CharacteristicsMounting Orientation: Vertical
Placement: Rack
Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Length: 2.25" (57.15 mm)
Weight (Approximate): 1.81 kg
MiscellaneousPackage Contents:
- Basic PDU15B2F8R 10-Outlets PDU
- Cord Retention Tray
Energy Star: No
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
WarrantyLimited Warranty: Lifetime
[/custom-specifications]
